Silence Brand Power Supply Pvc Housing Copper Electric Crane Accessories Busbar

Product introduction

The unipolar slide-contact line is a new type of power supply system feeding to the mobile mechanical equipment.

The conductor is a special formula high-quality aluminum alloy profile.

The outer sheath is made of special PVC material, which plays a safe role in preventing rain, dust, snow and electric shock.

Product features

1. 99.99% Oxygen-free copper

2. No joint, continuous power supply

3. Small space, Low noise

4. Low voltage drop

5. Stable operation, fast speed, good conductivity and contact performance

6. Easy to install, replace and transport

7. Long service life

8. The minimum bend radius reaches 750mm

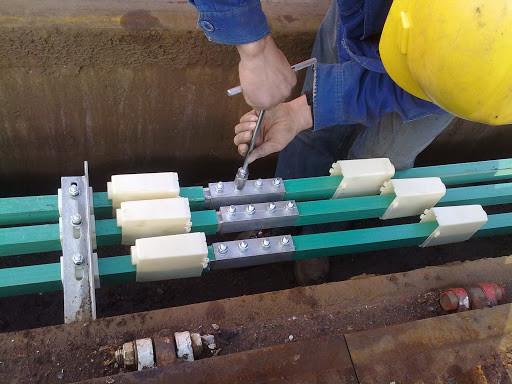

The installation

Compared with other slide-contact lines, the installation of the single-pole slide-contact line should be relatively flexible.

In particular, when the overall length of a slide-contact line is greater than 150m-200m or the slide-contact line works in a high-temperature environment for a long time, the expansion section of the slide-contact line must be installed.

If a single-pole sliding contact line has multiple mobile devices running at the same time, it is suggested to install the maintenance section, which can make your maintenance and maintenance more convenient.

The installation position of the maintenance section is not fixed, which can be adjusted according to your actual situation.

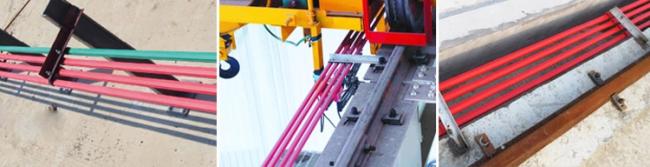

Applications

With advanced technology, skillful manufacture and beautiful design, the Power Supply Trolley Slide Wire is suitable for machinery works, small size steel factory, low power hoisting, cranes, monorails, electric hoists, electric tools, stacking systems and wildly used in the Lifting industry. (ambient temperature is< 55℃)

Maintenance

The unipolar sliding line should be checked regularly during normal operation because electrical equipment is the main production tool of every industrial and mining enterprise, any mistake will directly affect the production benefit of the factory.

When checking the slide-contact wire, it is necessary to check whether there is looseness or disconnection at a joint every 6 meters. When checking the guidewire, it is necessary to check whether the active part is rotating flexibly, whether the tension spring is fatigue, and whether the brush is worn, etc.

(these conditions will affect the conductivity of the slide-contact wire and the tracking performance of the guidewire. Adjustments should be made promptly.)

Technical parameters
