Construction Electric Wire Rope Hoist 1000kg High Efficiency Stable Performance
High Efficiency Construction Hoist 1000kg Electric Wire Rope Hoist
General introduction

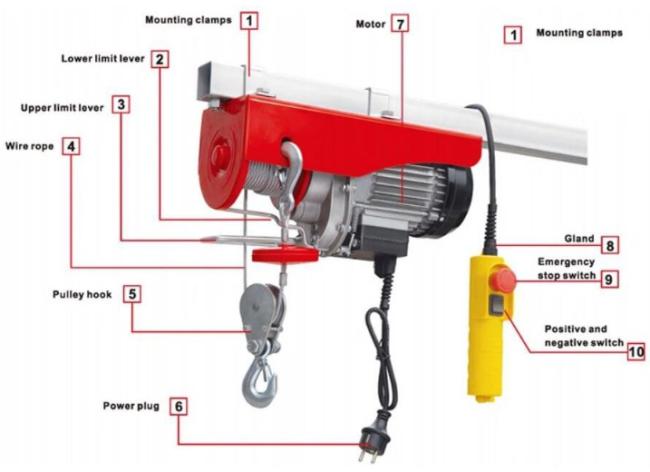

PA electric hoist motor with automatic brake system and thermal protection function.It has Emergency stop switch and Positive and negative switch which can ensure safe and smooth operation.
It has emergency stop switch and forced open limit switch. The protection class is IP54, and has thermal protection device. PA electric Hoist Can Be Easily Lift Small Engines, Transmissions, Large Shop Tools, Or Building Supplies.
PA electric hoist has CE/GS certification, the quality is safe and reliable. All the products of the hand brand are insured by PICC without worries.
Product parameter
| type | PA200 | PA300 | PA400 | PA500 | PA600 | PA800 | PA1000 |
| capacity (KG) | 100/200 | 150/300 | 200/400 | 250/500 | 300/600 | 400/800 | 500/1000 |
| lifting height(m) | 12/6 | 12/6 | 12/6 | 12/6 | 12/6 | 12/6 | 12/6 |
| lifting speed(m/min) | 10/5 | 10/5 | 10/5 | 10/5 | 10/5 | 10/5 | 10/5 |
| traveling speed(m/min) | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| power(kw) | 0.48 | 0.6 | 0.95 | 1.02 | 1.2 | 1.3 | 1.6 |
| voltage | 1p 220v-240v 50/60 hz | ||||||
| weight(kg) | 11 | 11 | 18 | 18 | 19 | 20 | 31 |
This parameter is for reference only, specific requirements can contact us for customization.
Product feature
1. Copper wire can be limited to reduce the accident rate .caused by bad weather or overload use with good anti-oxidation,corrosion-resistant and stable performance.
2. Gear and gear shaft are used by 40Cr or Cr MnTi steel ,forging processing with heat treatment .
3. Electric Hoist Lift Durable Braided Anti Twist High Carbon Steel Line Cable.
4. When Limit Baffle Hit Limiting Stopper, The Hoist Will StopTautomatically.
5. IF Wire Rope Reverse to Acsend, The Hoist Motor Will Stop Automatically.
6. 220V Power Supply
7. The Hoist Hook Can Rotate 360°.
