LX Type 1T Underhung Electric Hoist Overhead Travelling Crane 3 Phase Power Supply
LX Type 1T Underhung Electric hoist Overhead Travelling Crane 3 Phase Power Supply
Description of Suspension type Overhead Travelling Crane
Designed and made according to JB/T 2603 Electric Single Girder Underrunning Crane
The matched electric hoists have CD1 model, MD1 model, etc.
The light small lifting equipment with running way
Hoisting goods in the factory, warehouse, stockyard
Banned to use in such dangerous environment as easily combustible,explosive,etc.
Technical parameter of Suspension Overhead Travelling Crane
| Specification | CXTS-1 | CXTS-2 | CXTS-3.2 | CXTS-5 | CXTS-8 | CXTS-10 |
| Capacity (Ton) | 1 | 2 | 3.2 | 5 | 8 | 10 |
| Lifting Height (m) | 6-12(m) | 6-30(m) | 6-30(m) | 6-30(m) | 6-30(m) | 9-30(m) |
| Lifting Speed (m/min) | 10/1.67 | 5/0.83 | 5/0.83 | 5/0.83 | 5/0.83 | 5/0.83 |
| Trolley Speed (m/min) | 0-20 | 0-20 | 0-20 | 5-20 | 5-20 | 0-20 |
| Bridge Speed (m/min) | 0-32 | 0-32 | 0-32 | 0-32 | 0-32 | 0-32 |
Features of Suspension type Overhead Travelling Crane:

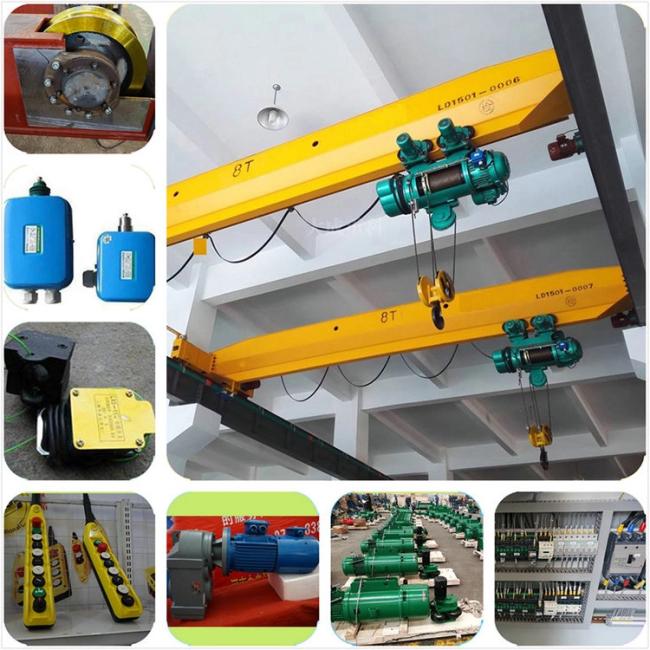

Consisted with crane frame, lifting hoist, travelling mechanism, and electrical control.
Overhead crane frame includes main girder, electric box,end beams
Matching with CD1 or MD1 or electric chain hoist, is a light small crane with rail travelling.
Span:3-30 m, and we could design it according to your requirements.
Working class: A3, A4, A5
Widely used in workshop, storage, port and hydroelectric power station and some other outdoor place
They are also suited to indoor applications
Can be constructed with a cantilever to allow handling outside the rail centers.
Main Beam of Suspension type Overhead Travelling Crane:
The crane girder is made by high quality I steel and high quality u-shaped slot into composition. End girder is welded with rectangular tubes or good steel.
The girder can be assembled and adjusted easily and rapidly.
Compact structure which are small and light.
The specially made wheels are light and widely used.
Smoothly moving, effectively braking, long service life
Electric Parts of Suspension type Overhead Travelling Crane:
Hoist and crane is controlled separately, and can move together and separately.
Flat cable or special cable power supply for electric hoist
Galvanize slide and cable small trolley
Smoothly moving, overall aesthetics
Set electric taxi speed is high, ensure continuing power supply,
Operation, hoisting, the point start special smoothly,
Users can choose according to different needs
Operation devices of Suspension type Overhead Travelling Crane:
Ground control and cabin control
The cable have open style and close style, can fixed on left or right
The open direction include end open, side open or top open
The cabin has special small room and the capsule cabin.
Ground control has handle and remote control, do not need to set up special driver
Users can choose as you need
