Bright Surface Round Titanium Alloy Bar ASTM B348 TC11

Price Negotiable

Price: USD35-48.500 per kg

MOQ: 10kg

Delivery Time: 10-15 days

Product Description

TC11 Titanium Alloy Bar

As an important material for aerospace, TC11 is an α+β dual-phase titanium alloy with the phasetransfer temperature between 998 and 1020°C. Due to its excellent properties (such as high strength and fatigue resistance), it has become an ideal material to produce aircraft engine parts.

TC11 titanium alloy under 300°C/5000 h has good microstructure and performance stability, different temperature transient high-temperature properties, such as tensile, creep and lasting, and double annealing and isothermal annealing. Through the normal annealing treatment of semi-finished products of TC11 titanium alloy, it can meet the requirements of aircraft structure temperature (below 300°C).

Product Information

Grade: GR1, GR2, GR4, GR5, GR7, GR12, GR23, TC11, TC21

Russian Grade: BT1-00,BT1-0,BT1-2, BT9, BT22

Standard: ASTM B348, AMS 4928, ASTM F67,ASTM F136

Diameter: 3-350mm

Length: up to 6000mm

Surface: Polished, Pickled

Features: Polished surface with no defects, no cracks and no pitting.

Chemical compositions(weight%,<=)
Al	Sn	Mo	Zr	Si	Fe	C
5.8-7.0	--	2.8-3.8	0.8-2.0	0.2-0.35	0.25	0.08
N	H		O		Other(total)	Ti
0.05	0.012		0.15		0.4	Remainder
Physical properties(>=)
Σb Tensile Strength (Mpa)	σr0.2 Yield Strength (Mpa)		δL0+50mm Elongation (%)		ψ Reduction of area (%)
1030	900		10		30

Advantages

1. Price: As a leading manufacturer of titanium products, we have a history of more than 16 years and we know the market very well, so competitive prices can be offered.

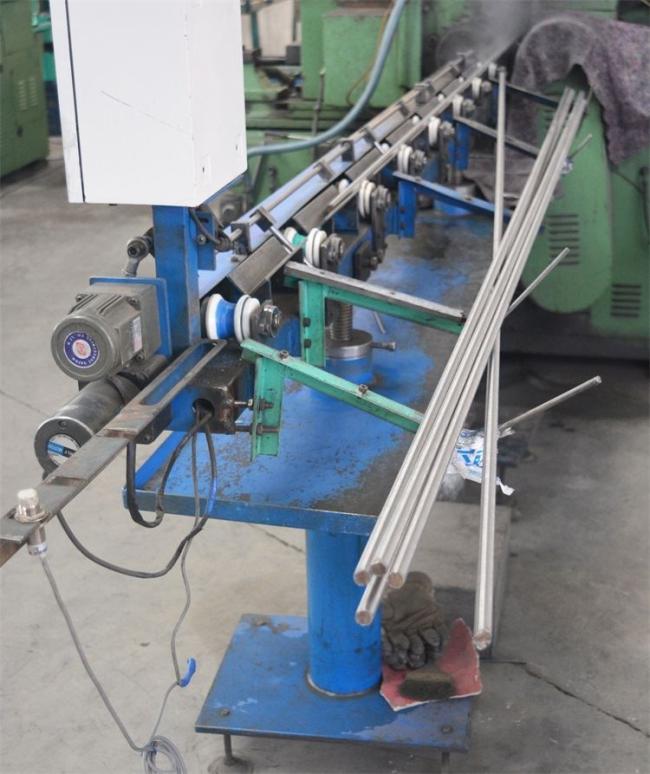

2. Equipment: We have annealing furnaces, forging hammers, milling machines, straightening machines, shearing machines, trimming machines, punching machines, sandblasting machines etc.

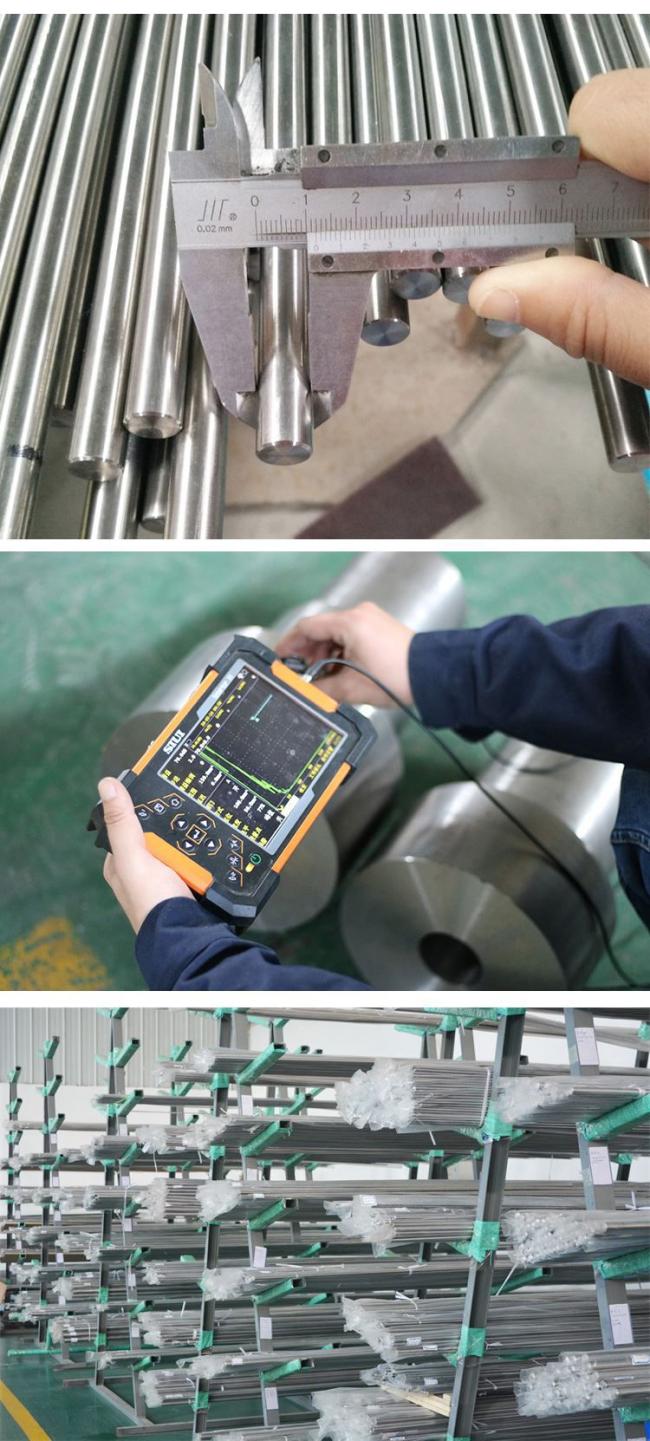

3. Quality: Our titanium rods are sold to many countries. Our product is widely recognized. MTC, like EN10204.3.1, is available. Third-party test, such as TUV, SGS, BV etc., is also acceptable.

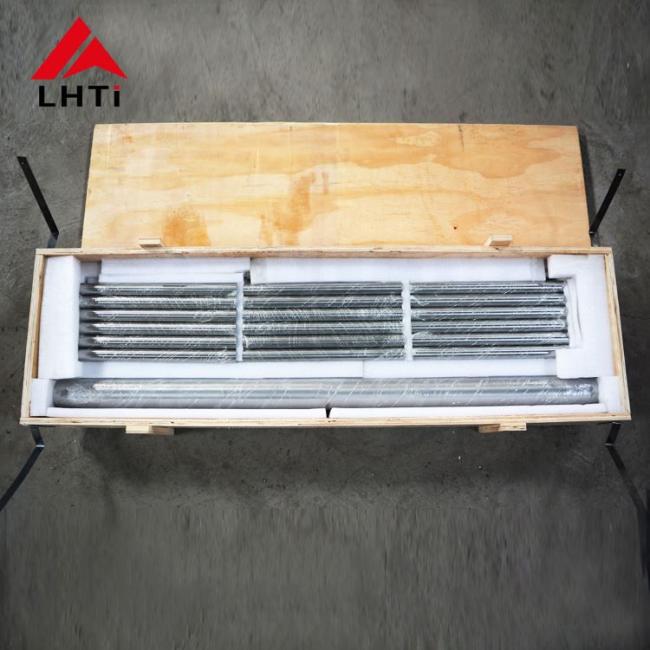

4. Shipment: Various modes of shipping. EXW, FOB, CIF etc. are all ok for us.

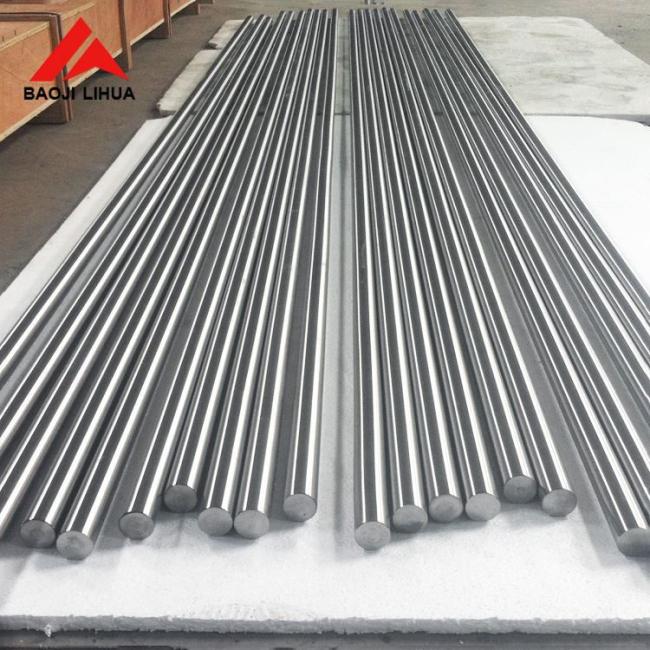

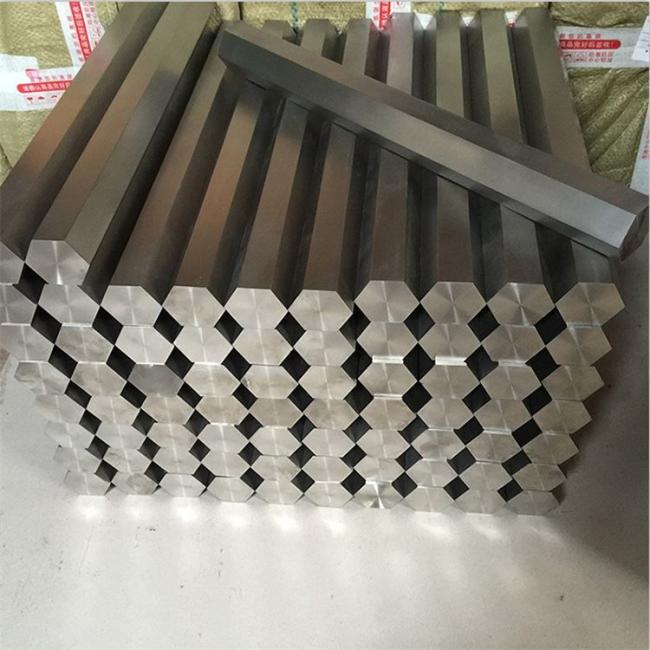

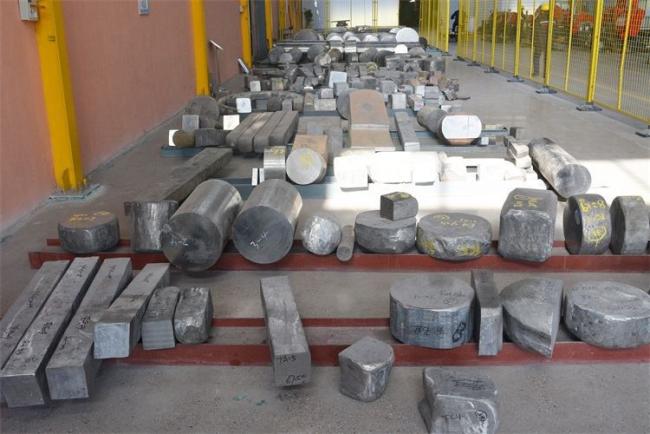

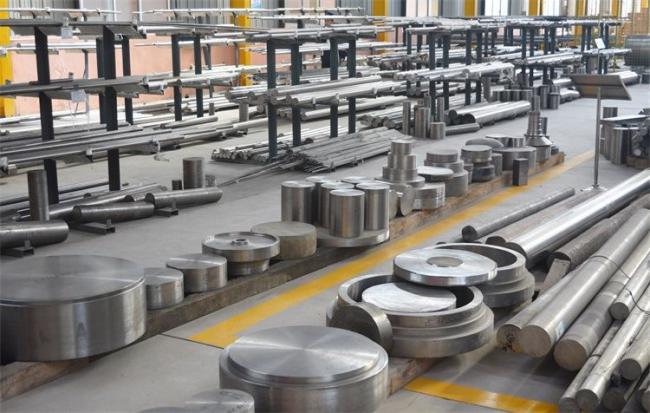

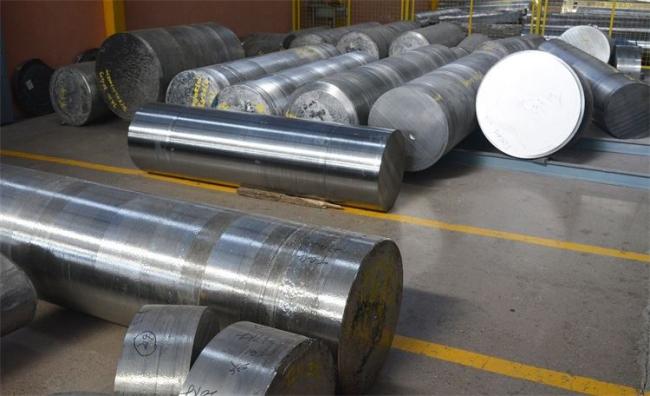

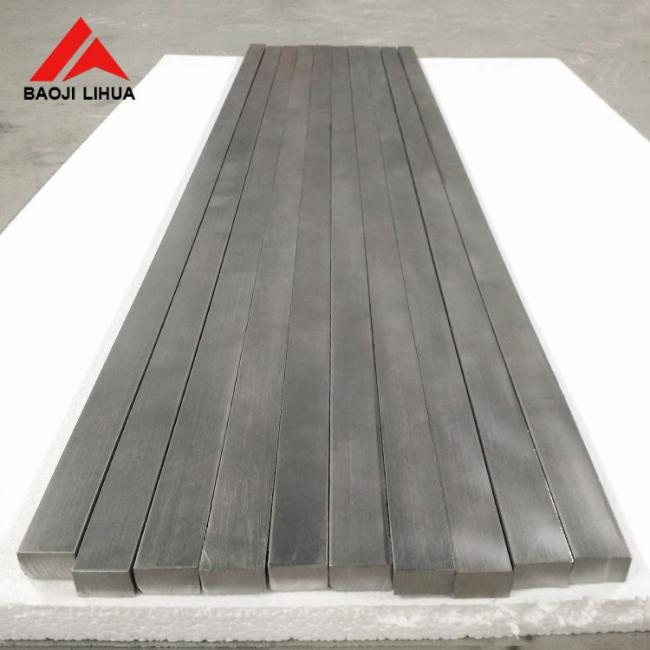

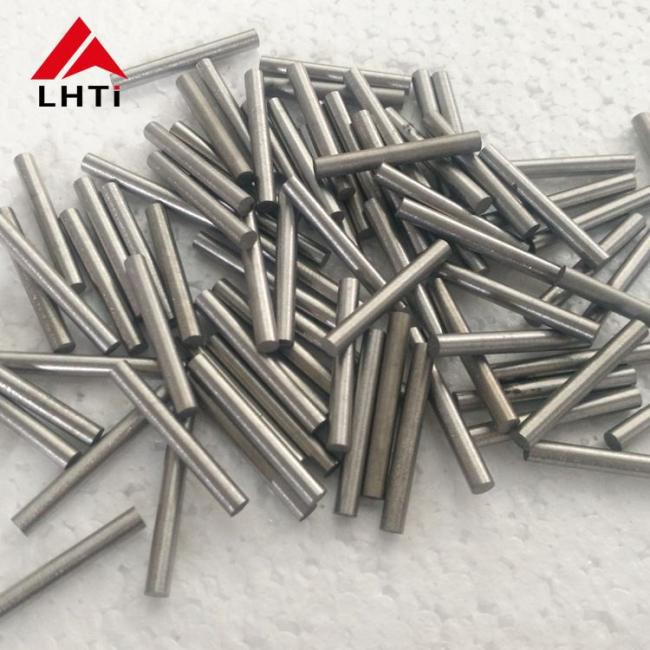

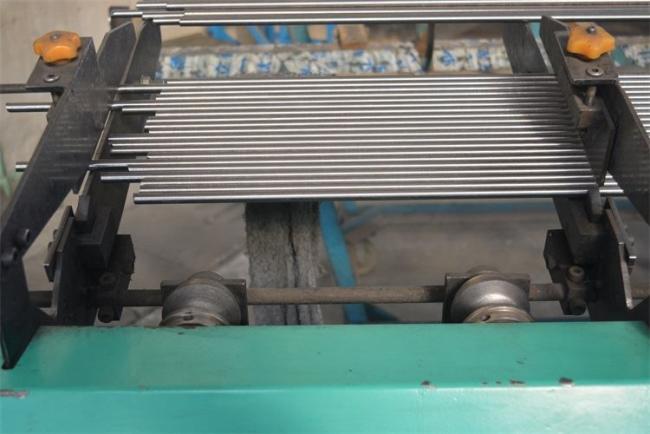

Detailed Images
