Forged CNC Titanium Blind Flange Gr2 Class 150
Forged CNC Titanium Blind Flange Gr2 Class 150

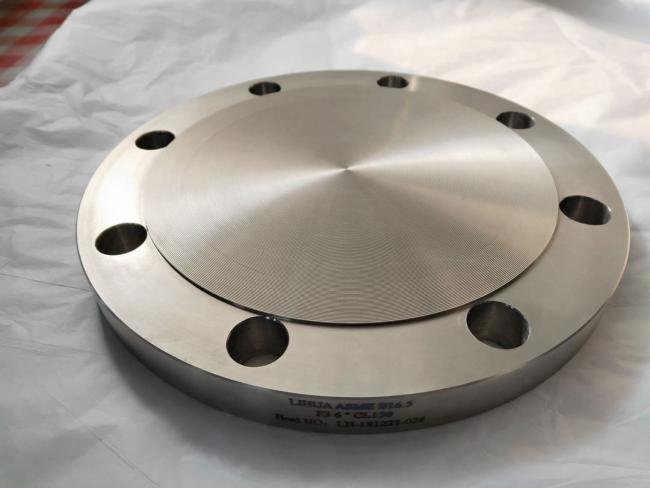

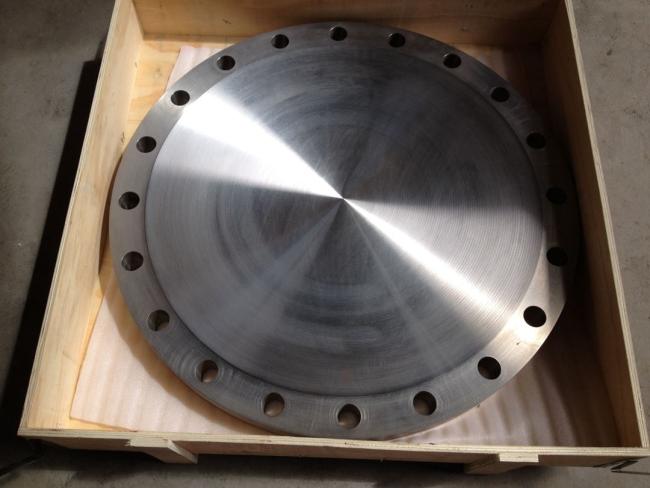

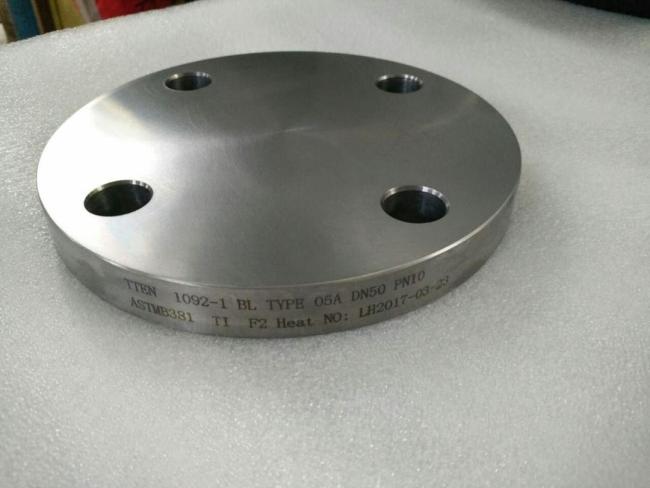

A blind flange is a solid disk used to block off a pipeline or to create a stop. It is machined like a regular flange, with mounting holes around the perimeter and a gasket sealing ring cut into the mating surface, but it has no opening for fluid to pass. This titanium blind flange is forged and CNC machined from Grade 2 titanium to ASTM and ANSI B16.5, runs from 1/2 inch to 80 inch, and is used to blank off flow on construction, petroleum, chemical, power, ship building, paper making, metallurgy and water supply lines.
Technical Specifications
| Item | Specification |
|---|---|
| Material | Grade 2 titanium |
| Standard | ASTM, ANSI B16.5 |
| Flange Type | Blind (BL) |
| Size Range | 1/2 to 80 inch (DN40 - DN2500) |
| Pressure Rating | Class 150, 300, 600, 900, 1500 |
| Connection Type | Raised face (RF) |
| Technique | Forged, CNC machined |
| Quality Test | Ultrasonic testing |
Chemical Composition (max %, balance Ti)
| Element | Fe | O | N | C | H | Ti |
|---|---|---|---|---|---|---|
| Grade 2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | bal |
Physical Properties (min)
| ASTM Grade | Composition | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation min (%) |
|---|---|---|---|---|
| Grade 2 | Unalloyed titanium (pure) | 440 | 320 | 18 |
Flange Standards and Classes
| Standard | Pressure Class | Size Range |
|---|---|---|
| ASME / ANSI B16.5 | 150, 300, 600, 900, 1500 | 1/2 to 24 inch |
| ASME / ANSI B16.47 Ser. A (MSS SP44) | 150, 300, 600, 900 | 26 to 60 inch |
| ASME / ANSI B16.47 Ser. B (API 605) | 75, 150, 300, 600, 900 | 26 to 60 inch |
Applications and Inquiry
The blind flange can be placed between two open flanges to stop the flow of liquid through a pipeline, or used as a future connection point. Send us your size, pressure class and face type and we will confirm the right forged titanium blind flange for your line.
