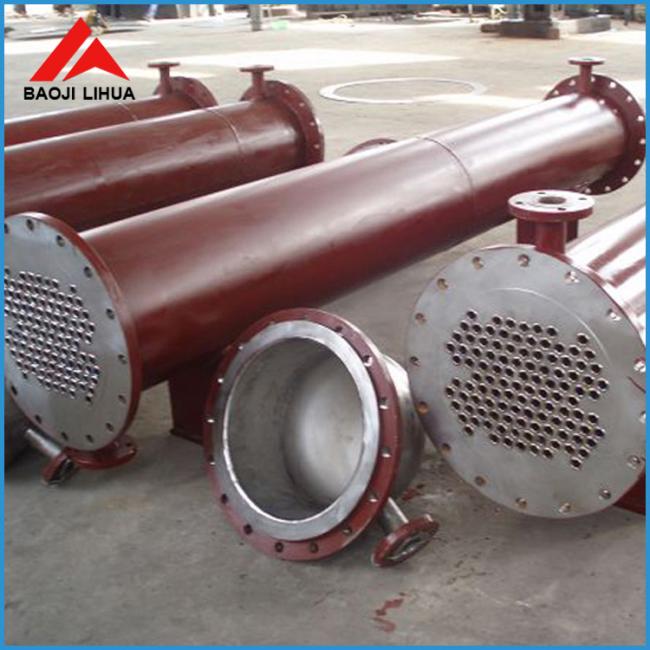

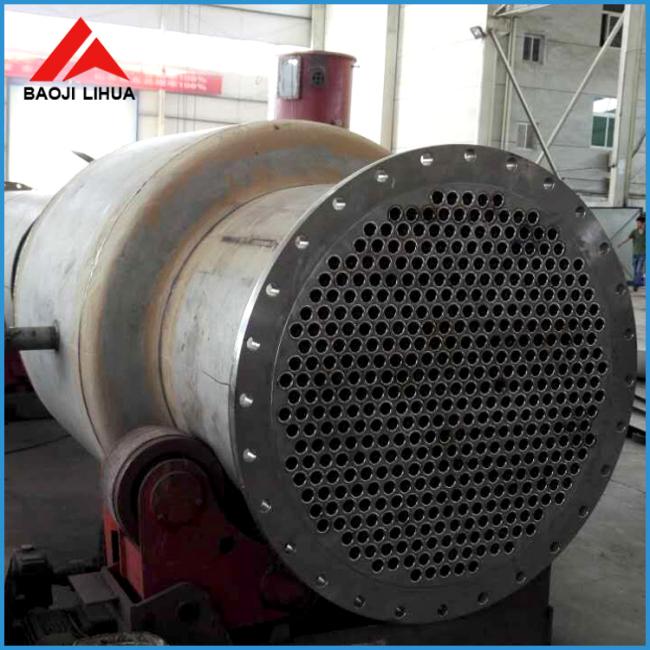

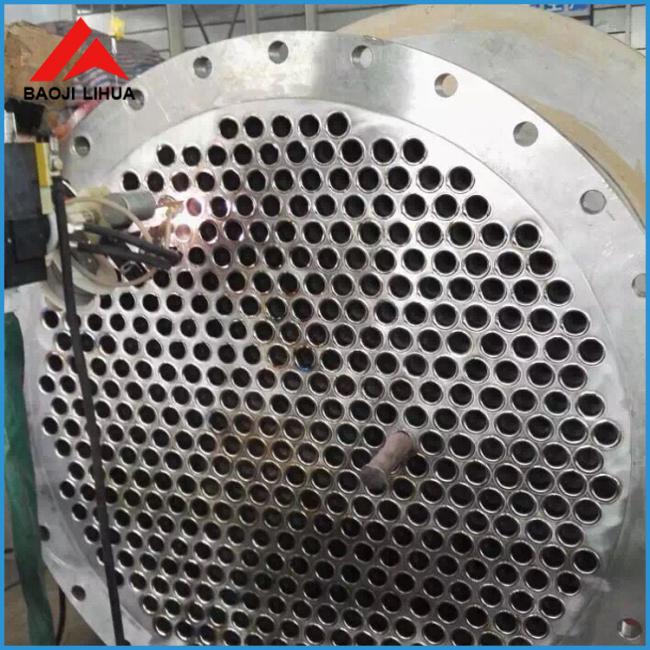

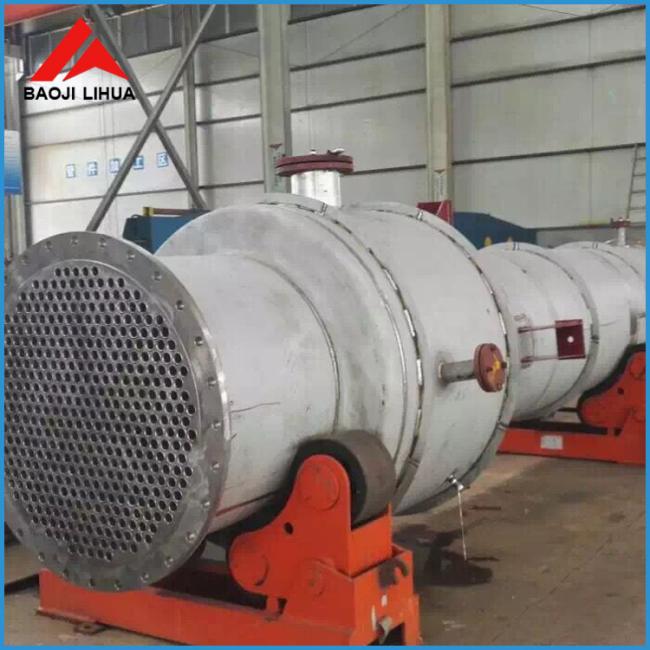

Titanium clad stainless steel tube sheet

The Titanium tube plate is drilling the pipes holes on the circular. Titanium steel Clad plate to be slightly larger than the outer diameter of the tube.

Item name : Titanium Tubesheet
Material: Gr1, Gr2, Gr5, Gr7,Gr12
Size &Standard: As per client drawing
Production Method: Forging,annealing and machining
Advantage: Excellent corrosion resistance ability
Packing: Plywood case
Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc.

Application

Boilers and pressure vessels;Petroleum;Chemical industry;Shipbuilding;Pharmaceutical;Metallurgy;Machinery;Food production ETC.

Product performance

● Low Density and High Strength
● Excellent Corrosion Resistance
● Good resistance to effect of heat
● Excellent Bearing to cryogenic property
● Nonmagnetic and Non-toxic
● Good thermal properties

Titanium composite steel plate tube-sheet is a single or double-sided composite plate made of ordinary grade TA1 or TA2 (composite metal) and carbon steel or alloy steel by explosion, explosion + rolling or hot rolling. Titanium metal has excellent corrosion resistance, widely used in flue gas desulfurization equipment, power plant chimneys, chemical reactors, heat exchangers, pressure vessels, etc. But its disadvantage is high cost, titanium composite steel plate tubesheet has the corrosion resistance of titanium metal and the structural strength of steel, can greatly reduce the project cost.

At present, the production method of titanium composite steel tubesheet is as follows:

1. Weld compound 2. Rolling compound 3. Explosive welding 4. Explosive welding + rolling

Baoji Lihua uses explosive welding and rolling and combines the two processes. This method can overcome the disadvantages of small area and complex rolling process of explosive composite plate, give full play to their respective advantages, and produce titanium steel composite plate with large area and small thickness. It is more efficient and cheaper.

Technological parameters and shear strength of explosive welding of Titanium clad stainless steel plate tube sheet 1
Cladding materials		Base materials		h0/ mm	Wg/ (g.cm-2)	Bond strength/MPa	1	2	3	4	Average	Remark
Metal	δ1/ mm	Metal	δ2/ mm	h0/ mm	Wg/ (g.cm-2)	Bond strength/MPa	1	2	3	4	Average	Remark
Titanium	3 5	Stainless steel	18	5 6.5	1.4 1.6	σt	293	200	392	179	266	The substrate is generally polished.
						σf	247	208	113	92	165	The substrate is generally polished.
						σt	447	530	460	441	444	The substrate is polished.
						σf	403	200	363		322	The substrate is polished.
						σt	139	105	203	205	163	The substrate is generally polished.
						σf	231	345	286	287	285	The substrate is generally polished.
						σt	407	410	263	407	372	The substrate is polished.
						σf	498	571	513		527	The substrate is polished.

Losive welding of Titanium clad stainless steel plate tube sheet 2
Cladding materials		Base materials		h0/ mm	Wg/ (g.cm-2)	Bond strength/MPa	1	2	3	4	Average	Remark
Metal	δ1/ mm	Metal	δ2/ mm
Titanium	3 5	Stainless steel	18	5 6.5	1.4 1.6	σt	392	87	240	18		The substrate is generally polished.
						σf	345	92	157	12
						σt	530	279	402	5		The substrate is polished.
						σf	403	200	321	3
						σt	339	60	230	18		The substrate is generally polished.
						σf	287	149	233	11
						σt	571	513	541	2		The substrate is polished.
