ANSI B16.5 ASTM B381 Titanium Grade 2 Flanges NPS 1/2 - NPS 24 For Pipe Fittings
Titanium Grade 2 Flanges
Product Name: Titanium grade 2 flanges
Standard: ASME B16.5
Material: Gr2
Flange type:WN,SO,PL,BL etc, our as customers' requests
Unit Price: $25usd/pc-$85usd/pc
Sealing Surface: RF, FF, TG, RJ etc.
Size: NPS 1/2 - NPS 24(DN 10 - 2000)
Pressure: 150#-2500#
Surface: Polished
Technique: Forged and CNC Machined
Inspection: UT% , PT%
Certificate: ISO9001, TUV etc.
Chemical composition of Titanium grade 2 flanges (Wt%)
| ASTM No. | Fe max | O max | N max | C max | H max | Pd | Al | Bal |
| Grade 2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | - | - | Ti |
Physical Properties (Min)
| ASTM Grade | Alloy Composition | Tensile Strength | Yield Strength | Elongation min % | ||
| ksi | Mpa | ksi | Mpa | |||
| Grade 2 | Unalloyed Ti ("Pure") 50A -CP2 | 64 | 440 | 46 | 320 | 18 |

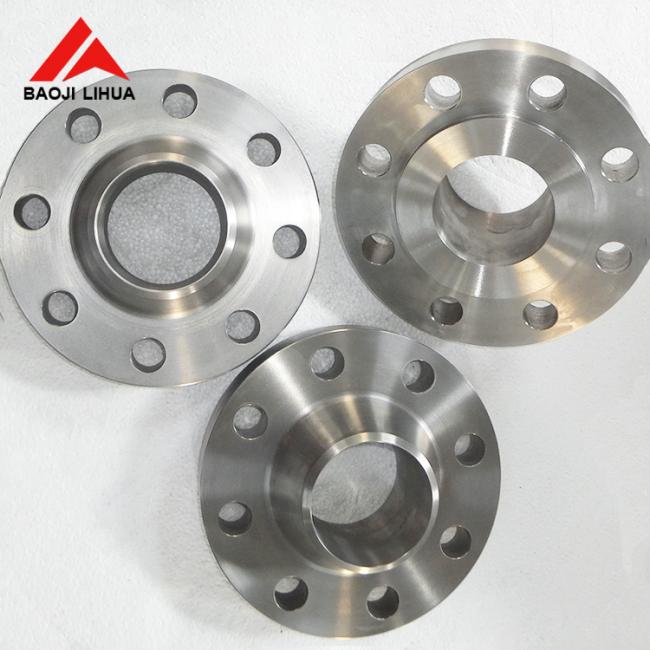

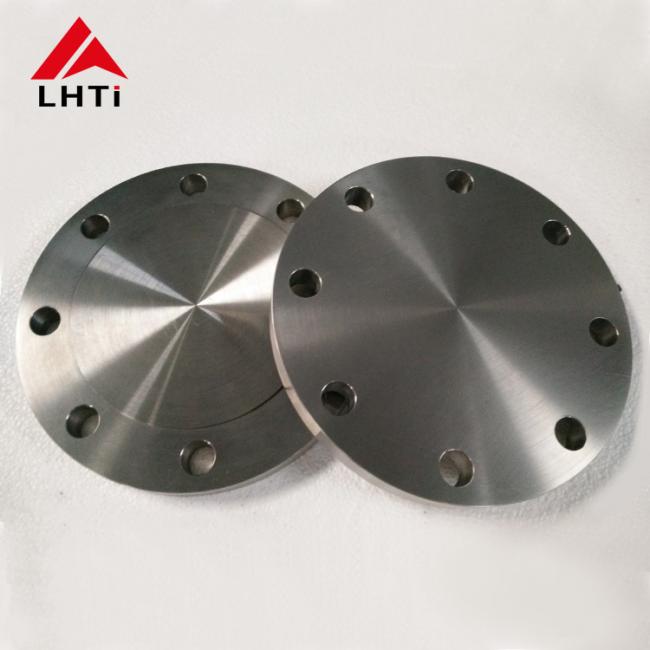

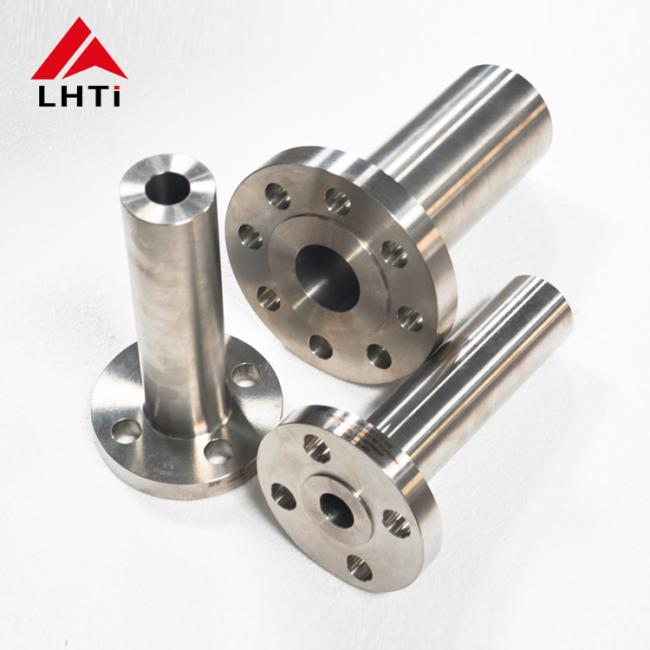

Detailed pictures
Practical application of Titanium grade 2 flanges:
Our Factory
Our factory advantages:
The stock of commonly used titanium flanges is sufficient;
There are many titanium flange blanks, so production time is short;
There is our own machines in factory ,so titanium flange price is low, and quality is high.
Welcome to contact us in any time !
Stock
Quality Inspection
Packaging
Packaging
