ASTM B348 Polished Titanium Rod Gr2 Gr5 Gr7
ASTM B348 Polished Titanium Rod Gr2 Gr5 Gr7
These titanium rods are made to ASTM B348 in Gr2, Gr5 and Gr7, supplied annealed with a polished surface in diameters from 3 mm to 350 mm and lengths from 500 mm to 6000 mm or to your request. Titanium combines a high strength-to-weight ratio with excellent corrosion resistance and biocompatibility, so the rod is used for bone and joint implants in the medical industry, for aerospace components, and for high-performance sporting and automotive parts such as racing car components and engine parts that must withstand high temperature and pressure.
Technical Specifications
| Standard | ASTM B348 |
| Grade | Gr2, Gr5, Gr7 (Gr1-Gr12 available) |
| Diameter | 3 mm - 350 mm |
| Length | 500 - 6000 mm, or as requested |
| Surface | Polished |
| Condition | Annealed |
| Color | Natural |
| Application | Medical, aerospace, sports and automotive parts |
Chemical Requirements (Wt%)
| Grade | N | C | H | Fe | O | Al | V | Pd | Mo | Ni |
|---|---|---|---|---|---|---|---|---|---|---|
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5-6.75 | 3.5-4.5 | / | / | / |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12-0.25 | / | / |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2-0.4 | 0.6-0.9 |
Tensile Requirements
| Grade | Tensile Strength min (ksi / MPa) | Yield Strength min (ksi / MPa) | Elongation min % |
|---|---|---|---|
| 1 | 35 / 240 | 20 / 138 | 24 |
| 2 | 50 / 345 | 40 / 275 | 20 |
| 5 | 130 / 895 | 120 / 828 | 10 |
| 7 | 50 / 345 | 40 / 275 | 20 |
| 12 | 70 / 438 | 50 / 345 | 18 |
Applications & Inquiry

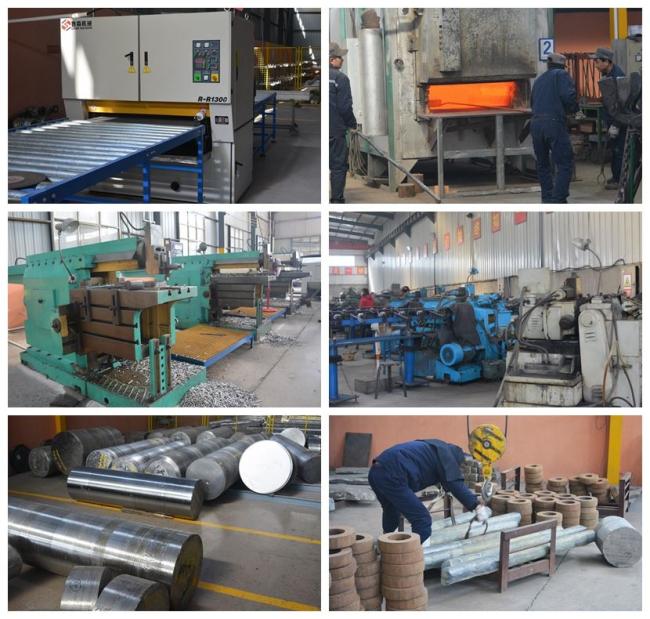

The versatility and strength of titanium rods make them valuable in many industries: as implants for bone and joint replacement, as light strong corrosion resistant parts in aerospace structures, and as components in high-performance sports and automotive equipment. Baoji Lihua Non-ferrous Metal Co., Ltd. was established in 2006 and produces titanium, tantalum and nickel products with more than 20 sets of CNC, milling and drilling machines, holding ISO 9001:2015 and BV audit certification. Rods are supplied in diameters from 3 mm to 350 mm with polished annealed surfaces, free samples are available and packing is a plywood box with soft foam inside to protect against shipping damage. Please send your grade, diameter and quantity for a quotation.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
