Hot Rolled / Annealed Titanium Magnetic Ring Gr7 TiPd Titanium Alloy Forged Ring
Titanium Magnetic Ring ASTM B381 Gr7 TiPd Titanium Alloy Forged Ring
Tensile Requirements
| Grade | Tensile strength(min) | Yield Strength(min) | Elongation(%) | ||
| ksi | MPa | ksi | MPa | ||
| Gr1 | 35 | 240 | 20 | 138 | 24 |
| Gr2 | 50 | 345 | 40 | 275 | 20 |
| Gr3 | 65 | 450 | 55 | 380 | 18 |
| Gr4 | 80 | 550 | 70 | 483 | 15 |
| Gr5 | 130 | 895 | 120 | 828 | 10 |
| ASTM B265 | GB/T 3620.1 | JIS H4600 | Elemental content ( wt% ) | ||||||
| N,Max | C,Max | H,Max | Fe,Max | O,Max | Others | ||||
|
pure titanium |
Gr.1 | TA1 | Class 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | - |
| Gr.2 | TA2 | Class 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | - | |
| Gr.3 | TA3 | Class 3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | - | |
| Gr.4 | TA4 | Class 4 | 0.05 | 0.08 | 0.015 | 0.50 | 0.40 | - | |
|
Titanium alloy |
Gr.5 |
TC4 Ti-6Al-4V |
Class 60 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 |
Al:5.5-6.75 V:3.5-4.5 |
| Gr.7 | TA9 | Class 12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | Pd:0.12-0.25 | |
| Gr.11 | TA9-1 | Class 11 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | Pd:0.12-0.25 | |
| Gr.23 | TC4 ELI | Class 60E | 0.03 | 0.08 | 0.0125 | 0.25 | 0.13 |
Al:5.5-6.5 V:3.5-4.5 |
|
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |

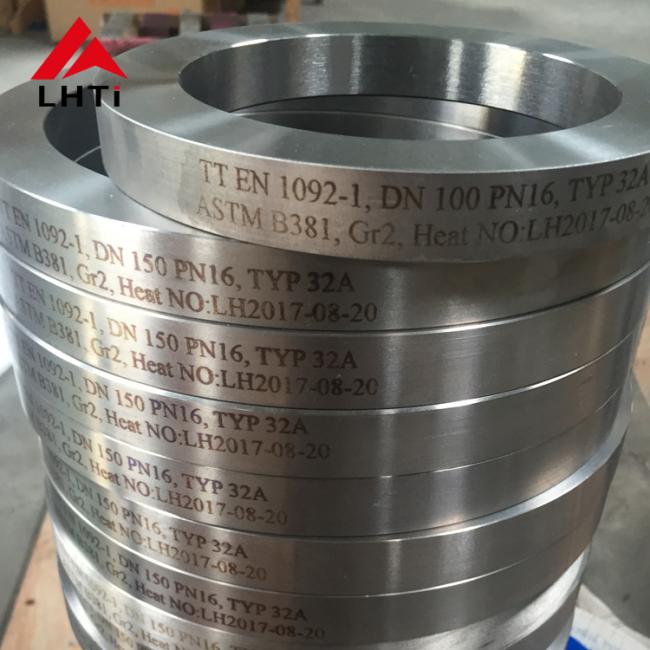

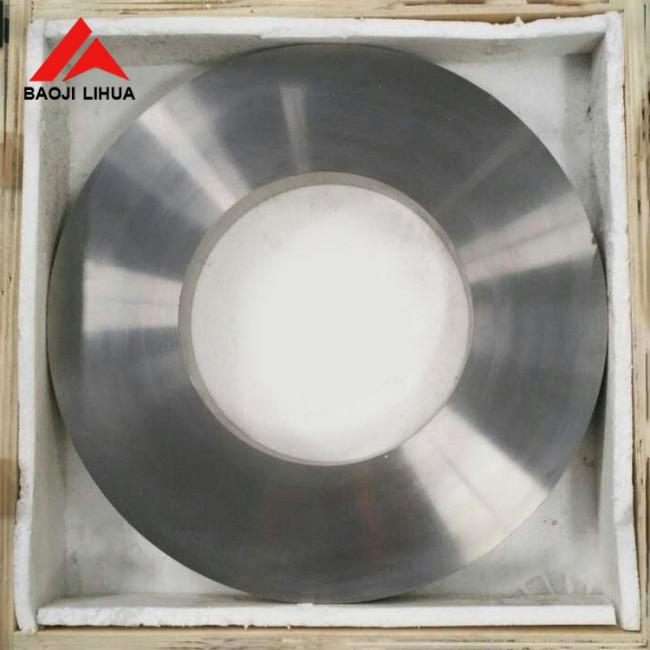

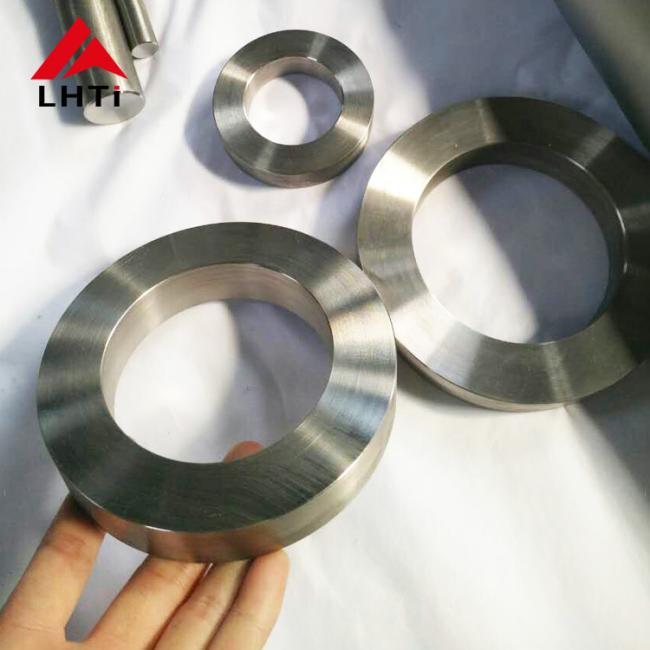

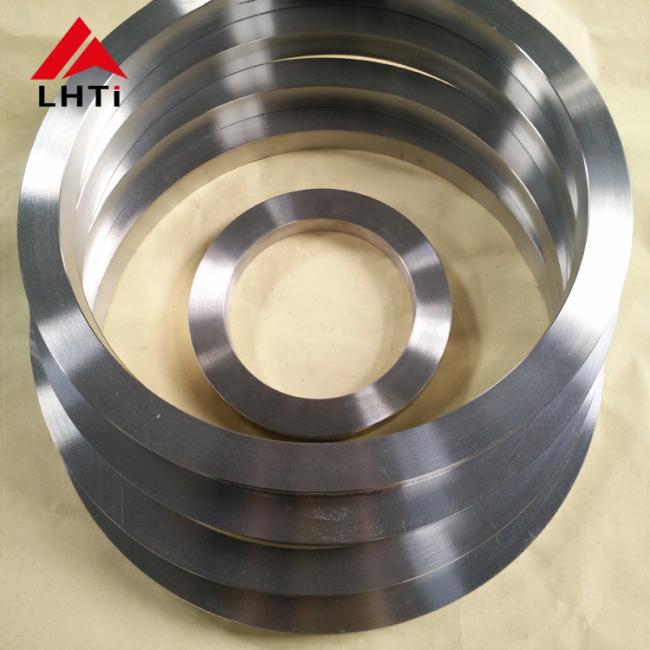

Product picture:
About us
Baoji Lihua Non-ferrous Metal Co., Ltd. was established in 2006. The company relies on theadvantages of Baoji industry and its strong technical support. It has been engaged in theproduction and sales of non-ferrous metals such as titanium, tantalum and nickel for many years.

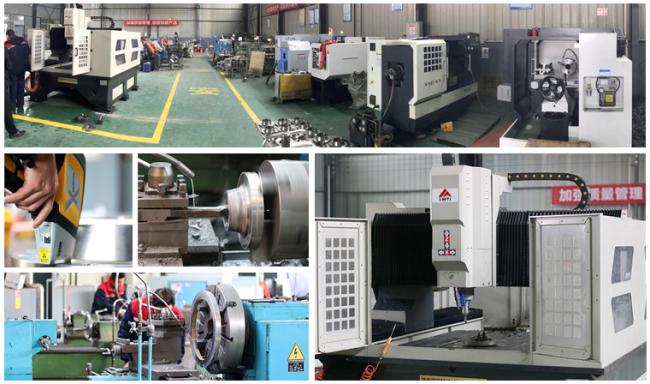

The factory covers an area of 800 square meters. The factory has strong technical equipment. There are more than 20 sets of CNC machines, milling and drilling machines, and the annualproduction value is more than 30 million CNY.
The company's product is high quality and stable for many years, and it has obtained the Certification ISO 9001:2015, BV audit certification.
The company has been focusing on the improvement and stability of product quality for many years. Based on the business concept of maximizing customer service, we warmly welcome you to come for advice and business negotiation!
FAQ
1. Any discount?
A: The prices we quote are all wholesale price in the first place. Meanwhile, our best price will be offered according to your order quantity, so please specify your purchase quantity when you inquire. The more your order, the better discounts we will offer.
2. Are you a manufacturer?
A: Yes. As a manufacturer with 13 years of experience, we’ve gained adequate expertise and proficiency. Relying on our own factory, we offer you our best-quality products as we have fully equipped Product Department and QC Department.
3. How do I know if my products are delivered?
A: We will inform you Tracking No. for your reference or you can contact us anytime for shipment information.
4. Has your company acquired any certificate?
A: We are certified manufacturer with our auto parts approved by ISO9001 Quality Management System.
5. How about quality of products?
A: We guarantee strict control on every detail of the products. Each product is carefully inspected and tested before delivery.
6. What about payment terms?
A: T/T, L/C, Western Union Paypal are accepted.
7. How is your MOQ?
A: Minimum quantity for certain items is only 10kg. But MOQ can be lowered when you buy several different kinds of products together. For more details, please feel free to contact us at anytime.
8. How about delivery time?
A: Usually within 5-7 days via express delivery. But it depends on your order quantity as well.
