Gr2 Gr12 Titanium Blind Flange with Material Test Report EN10204.3.1 for Chemical Industry
Price:
US dollar $30/pc--US dollar $180/pc
MOQ:
1 piece
Delivery Time:
3-15 work days
Brand:
LIHUA
Product Description

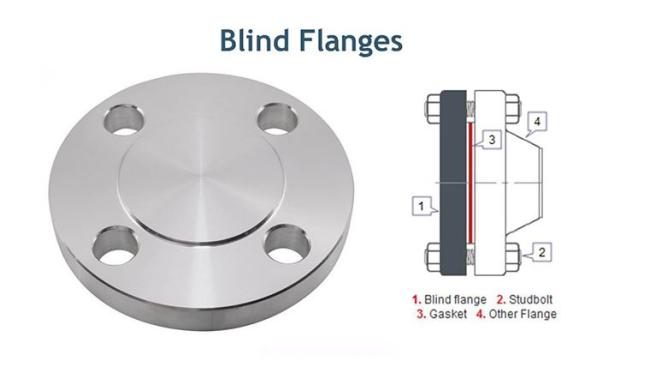

GR2 GR12 RF Titanium Blind Flange for Chemical Industry
Ti Gr2 Gr12 Blind Flange (BL) titanium flange with competitive pricing per kg.
Chemical Composition Requirements
| Grade | N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
Tensile Requirements
| Grade | Tensile Strength (min) | Yield Strength (min) | Elongation (%) |
|---|---|---|---|
| GR1 | 35 KSI / 240 MPa | 20 KSI / 138 MPa | 24 |
| GR2 | 50 KSI / 345 MPa | 40 KSI / 275 MPa | 20 |
| GR5 | 130 KSI / 895 MPa | 120 KSI / 828 MPa | 10 |
| GR7 | 50 KSI / 345 MPa | 40 KSI / 275 MPa | 20 |
| GR12 | 70 KSI / 438 MPa | 50 KSI / 345 MPa | 18 |
Baoji Lihua provides titanium flanges in various standards (ASTM, ASME, JIS, EN1092-1, DIN, etc.) and types (PL, BL, WN, LP, SO, etc.), all meeting international quality standards.
ANSI B16.5 Titanium Blind Flange Specifications
- Material: Titanium Gr1 (3.7025), Gr2 (3.7035), Gr7 (3.7235), Gr12 (3.7105)
- Size: 1/2" - 48" (Schedule 5s to Schedule 80)
- Standard: ASME B16.5, EN 1092, JIS 2201, AWWA C207, ASME B16.48
- Type: PL, BL, WN, LP, SO, Spectacle, etc.
- Pressure Level: Class 150-1200LBS, PN 1.0-4.0 Mpa
- Month Capacity: 100,000 pieces
- Tests: UT, DPI
- Sealing Face: RF, FF, FMF, RJ, Groove, etc.
- Certificate: EN 10204-3.1
