GR1 GR5 Titanium WN Welding Neck Flange For Chemical Industry
Price:
US dollar $30/pc--US dollar $80/pc
MOQ:
1 piece
Delivery Time:
3-15 work days
Brand:
LH-Ti
Product Description
GR1 GR5 Titanium WN Welding Neck Flange For Chemical Industry
ASNI ASME B16.5 titanium GR1 GR5 welding neck flange designed for demanding industrial applications. Titanium flanges are manufactured using advanced forging processes and are ideal for machinery and chemical industry applications.
Product Applications
Widely used in water conservancy, electric power, power stations, pipe fittings, industrial equipment, pressure vessels, and various demanding environments. Also suitable for petroleum, chemical industry, power generation, ship building, paper making, metallurgy, water supply and sewage work, and other industrial sectors.
Product Specifications
- Material: Titanium GR1, GR2, GR7, GR11, GR12 (F2, F7, F11, F12)
- Types: Plate Flange, Flat Flange, Slip on Flange, Welding Neck Flange, Long Welding Neck Flange, Blind Flange, Socket Welding Flange, Thread Flange, Screwed Flange, Lap Joint Flange
- Connection Types: Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large tongue groove, Small tongue groove
- Size Range: 1-1/2" to 120" (DN40 to DN3000)
- MOQ: 1 piece
Ordering & Shipping
- Price Terms: EXW factory, FOB, C&F, CIF
- Payment Methods: T/T, L/C, West Union, Money Gram
- Packaging: Standard export plywood case or custom packaging as requested
- Export Markets: USA, Canada, Australia, Singapore, Indonesia, Hong Kong, Oman, Vietnam
Titanium Physical Properties
| Grade | Tensile Strength (min) | Yield Strength (min) | Elongation (%) |
|---|---|---|---|
| GR1 | 35 ksi / 240 MPa | 20 ksi / 138 MPa | 24 |
| GR2 | 50 ksi / 345 MPa | 40 ksi / 275 MPa | 20 |
| GR5 | 130 ksi / 895 MPa | 120 ksi / 828 MPa | 10 |
| GR7 | 50 ksi / 345 MPa | 40 ksi / 275 MPa | 20 |
| GR9 | 90 ksi / 620 MPa | 70 ksi / 438 MPa | 15 |
| GR12 | 70 ksi / 438 MPa | 50 ksi / 345 MPa | 18 |

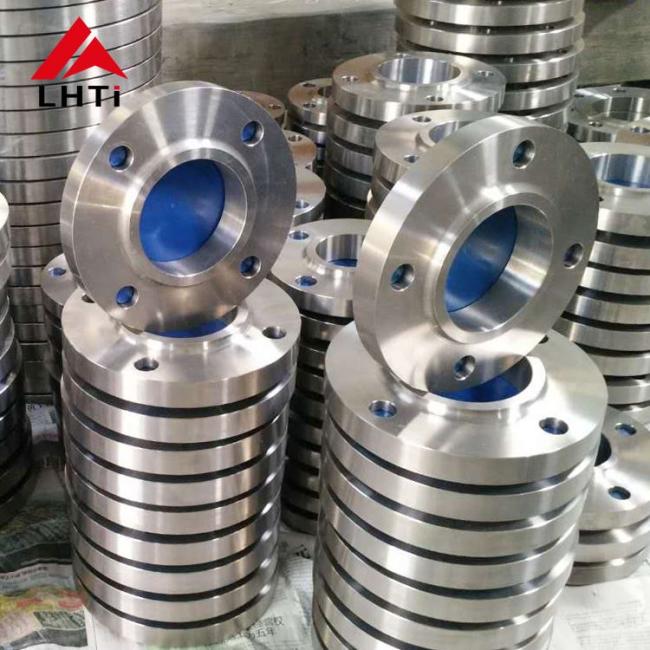

Product Images
