Froged And CNC Machined Titanium Long Weld Neck Flange Polished Surface ANSI B16.5

titanium long weld neck flange

Titanium Neck flange is also called titanium butt welding flange. It is different from flat welding flange in that there is a long and inclined high neck from the welding place of the flange and the pipe to the flange. The wall thickness gradually transitions to the pipe wall thickness along the height direction, which improves the discontinuity of stress, thus strengthening the strength of the flange.

Titanium flange are embodied by their protection from assault by acids and soluble bases, just as their high mechanical quality and great pliability. It has high strength, low weight ratio and outstanding corrosion resistance inherent to titanium and its alloys has led to a wide and diversified range of successful applications which demand high levels of reliable performance in surgery and medicine as well as in aerospace, automotive, chemical plant, power generation, oil and gas extraction, sports, and other major industries.

ASME B16.47 titanium flange

Material:Titanium GR1 GR2 GR7 GR11 GR12(F2 F7 F11 F12)

Type: Plate Flange, Flat Flange, Slip on Flange, Welding Neck Flange, Long Welding Neck Flange,

Blind Flange, Socket Welding Flange, Thread Flange, Screwed Flange, Lap Joint Flange,etc

Connection type: Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female,Large tongue groove, Small tongue groove etc

Size: 1'' and 1/2'' ~ 120'' (DN40-DN3000)

MOQ: 1 piece

Price term:EXW factory, FOB, C&F and CIF

Payment term: T/T, L/C, West Union, Money Gram and etc

Package: Standard exporT plywood case or as you requested

Application: Usually used in constructions,petroleum, chemical industry, power, ship building, paper making, metallurgy, water supply and sewage work, light and heavy industry, plumbing and electric etc.

Export to USA,Canada,Australia,Singapore,Indonesia,Hongkong,Oman,Vietnam etc

Physical Properties

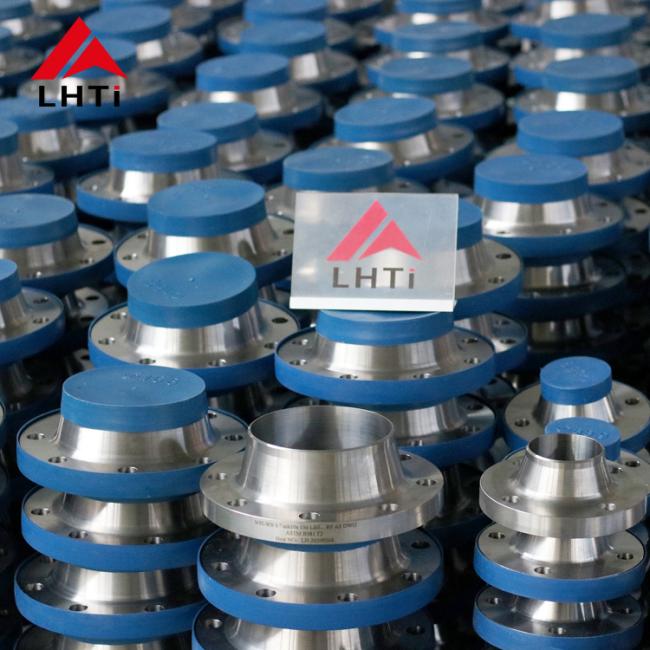

Detailed images:
