Chemical Industry Titanium WN Welding Neck Flange ASNI ASME B16.5
Price:
US dollar $30/pc--US dollar $80/pc
MOQ:
1 piece
Delivery Time:
3-15 work days
Brand:
LH-Ti
Product Description

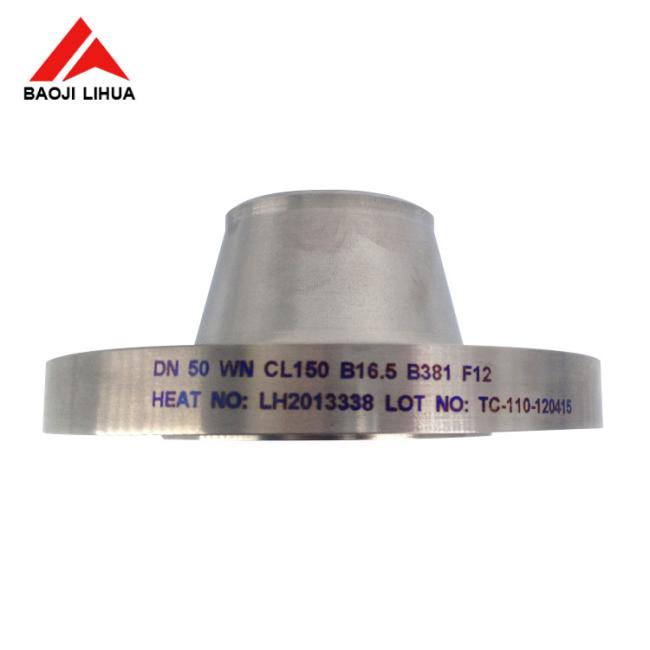

Chemical Industry Titanium WN Welding Neck Flange ASNI ASME B16.5
Titanium flanges are mechanical connectors used in piping systems to connect pipes, valves, and other equipment. They are specifically designed and manufactured using titanium or titanium alloy materials, which offer exceptional corrosion resistance, high strength-to-weight ratio, and excellent compatibility with various corrosive media.
Product Specifications
Specifications: ASTM B381 / ASME SB381
Standard: ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges
Grades: Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7
Dimensions: ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN
Size: 1/2" to 18"
Class / Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64
Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Physical Properties
| Grade | Tensile Strength (min) | Yield Strength (min) | Elongation (%) |
|---|---|---|---|
| GR1 | 35 ksi / 240 MPa | 20 ksi / 138 MPa | 24 |
| GR2 | 50 ksi / 345 MPa | 40 ksi / 275 MPa | 20 |
| GR5 | 130 ksi / 895 MPa | 120 ksi / 828 MPa | 10 |
| GR7 | 50 ksi / 345 MPa | 40 ksi / 275 MPa | 20 |
| GR9 | 90 ksi / 620 MPa | 70 ksi / 438 MPa | 15 |
| GR12 | 70 ksi / 438 MPa | 50 ksi / 345 MPa | 18 |

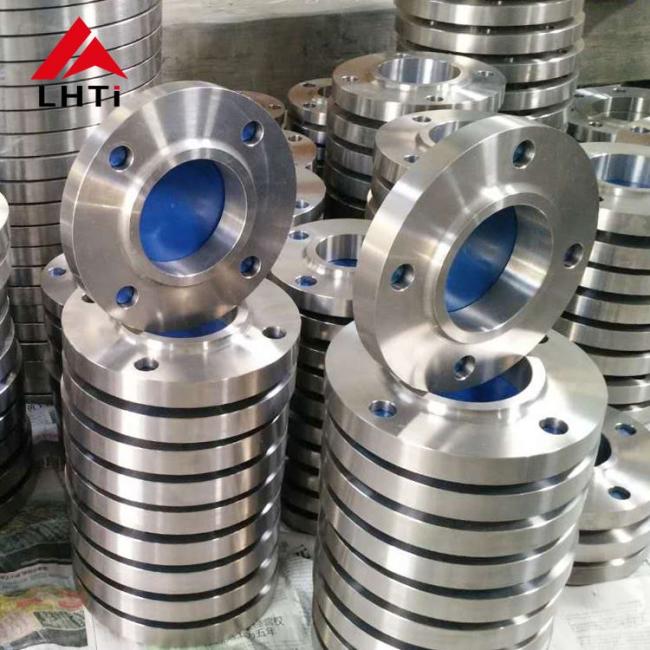

Product Images
