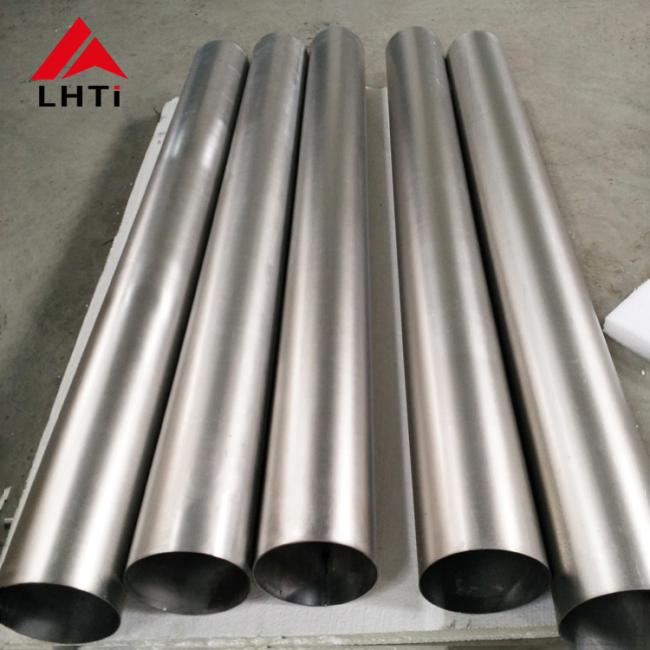

ASTM B338 Pickling Surface Straight Titanium Tube Gr1 GR2
Price:
US dollar $23/kg-US dollar $31/kg
MOQ:
1kg of each size
Delivery Time:
3-5 working days
Brand:
LHTI
Product Description
ASTM B338 Titanium Tube Grade 1 GR2
This Titanium Exhaust Pipe GR2 is equipped with advanced process, which has the advantage of light weight, high strength and superior mechanical properties. Due to the high performance, our Titanium Exhaust Pipe GR2 plays an important role in heat exchange equipment, such as column and tube heat exchangers, coil and tube heat exchangers, serpentine tube heat exchangers, condensers, evaporators and transmission pipes. On the other hand, it ensures longer service life for use and there is no special need of maintaining.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |
