DN50 Titanium Welding Neck Flange - ANSI B16.5 Ti-Pd Alloy WN Pipe Connector / Metal Flange
DN50 Titanium Welding Neck Flange - ANSI B16.5 Ti-Pd Alloy WN Pipe Connector / metal flange
Production Information

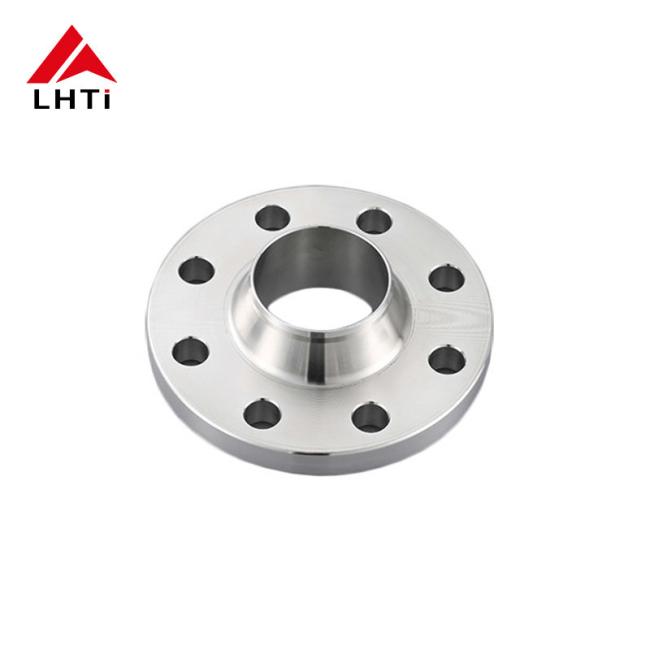

The DN50 Titanium Welding Neck Flange, conforming to ANSI B16.5 standards, is a high-performance metal flange designed for robust pipe connections. Crafted from Ti-Pd alloy, this flange offers exceptional strength and corrosion resistance, making it ideal for demanding applications. Its welding neck design ensures a smooth, reliable connection between pipes, enhancing the overall integrity and durability of the piping system. Suitable for a variety of industrial settings, this flange combines advanced material properties with precise engineering to meet stringent performance requirements.
Titanium flanges, made from titanium or titanium alloys, are used to connect pipes and pipe ends. They can be cast, screwed, or welded. A flange connection involves two flanges, a gasket, and bolts and nuts. The gasket is placed between the sealing faces of the flanges. When the nuts are tightened, the gasket deforms under pressure, filling any surface irregularities and ensuring a tight, leak-proof connection. Commonly used grades include TA0, TA1, TA2, TA3, TA9, TA10, and TC4.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |
