ASME B16.47 Titanium Flange with Large Male-Female Connection for High Pressure Systems
ANSI B16.5 Grade 2 Raised Long Welding Neck Titanium Flange
Product Details:

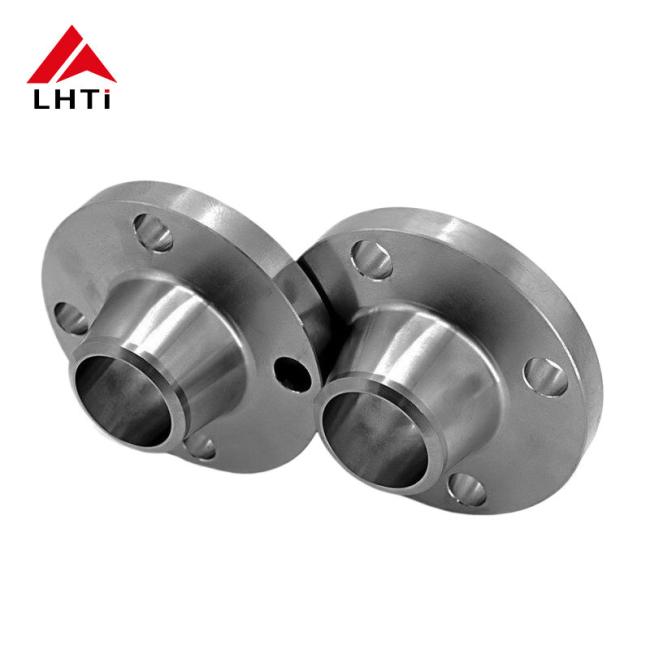

NSI B16.5 Grade 2 WN RF Welding Neck Titanium Flange
This titanium flange is extensively used across various industries, including water conservancy, electric power, power stations, pipe fittings, and pressure vessels. Crafted through a forging process, it is ideal for machinery and chemical applications. We also offer flanges in other materials, such as nickel and zirconium.
ASME B16.47 Titanium Flange
- Material: Titanium Grades GR1, GR2, GR7, GR11, GR12 (F2, F7, F11, F12)
- Types: Plate Flange, Flat Flange, Slip-on Flange, Welding Neck Flange, Long Welding Neck Flange, Blind Flange, Socket Welding Flange, Thread Flange, Screwed Flange, Lap Joint Flange
- Connection Types: Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue Groove, Small Tongue Groove
- Sizes: 1" and 1/2" to 120" (DN40-DN3000)
- MOQ: 1 piece
- Price Terms: EXW Factory, FOB, C&F, CIF
- Payment Terms: T/T, L/C, Western Union, Money Gram, etc.
- Packaging: Standard export plywood case or customized as requested
- Applications: Widely used in construction, petroleum, chemical industries, power generation, shipbuilding, paper manufacturing, metallurgy, water supply and sewage, light and heavy industries, plumbing, and electrical applications.
- Export Markets: USA, Canada, Australia, Singapore, Indonesia, Hong Kong, Oman, Vietnam, and more.
|
ASTM B265
|
Fe max | O max | N max | C max | H max | Pd | Al | V | Mo | Ni | Elong'n | Rp 0.2 | Rm |
| No | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | % | MPa | MPa |
| Grade 2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | / | / | / | / | / | 20 | 275-450 | 345-480 |
| Grade 5 | 0.4 | 0.2 | 0.05 | 0.1 | 0.015 | / | 5.5-6.7 | / | / | 10 | 800-1100 | 890-1400 | |
| Grade 7 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 0,12-0,25 | / | / | / | / | 20 | 275-450** | 345 |
| Grade 12 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | / | / | / | 0.3 | 0.8 | 25 | 414-460 | 499-600 |
| Product name | Titanium flange |
| Type | WN |
| Standards | ASME B16.5 ASTM B381 |
| Size | 1/2" to 36" |
| Pressure Ratings | Class 150, 300#, 600#, CL 900, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Grade | gr2 gr5 gr7 gr12 |
| Other Flanges Types | Lapped Joint Flanges, Flat Flanges, Blind Flanges, Square Flanges, RTJ Flanges, Long Neck Weld Flanges, Reducing Flanges, Nipo Flanges, Threaded Flanges, Orifice Flanges, Expander Flanges, Socket Weld Flanges, High Hub Blinds Flanges, Forged Flanges, Slip On Flanges etc |
About Us:
Drawing on over 15 years in the titanium manufacturing and exporting industry, we excel in crafting a wide array of titanium flanges. Our offerings include blind, neck, lap, slip-on, and plate flanges, with sizes ranging from ½" to 24". Complying with ASTM B/SB 381 standards, our products are precise and reliable. Whether you require a high volume for a major project or a single flange for a smaller task, we have the capability to deliver promptly and meet all your project needs effectively.
