Unleashing the Full Potential of Oil and Gas Operations with Titanium Ball Valves
Price:
negotiable
MOQ:
1 piece
Delivery Time:
about 5-14 days for delivery
Brand:
LHTi
Product Description

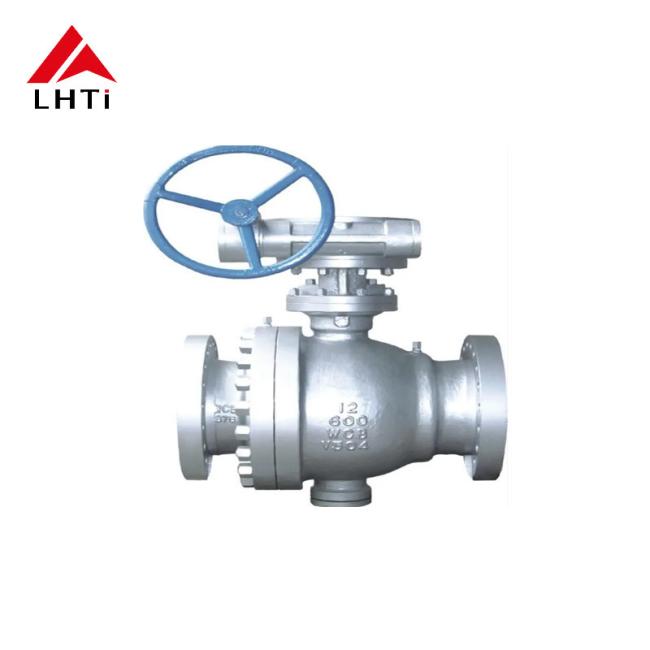

Unleashing the Full Potential of Oil and Gas Operations with Titanium Ball Valves
Titanium Ball Valves for Oil and Gas Operations
In the demanding landscape of the oil and gas industry, titanium ball valves represent a significant advancement in fluid control technology. Known for exceptional strength, lightweight properties, and remarkable corrosion resistance, these valves are reshaping standards for operations in harsh environments.
Material Advantages
Titanium's excellent corrosion resistance ensures valve integrity in extreme environments like offshore drilling platforms and aggressive chemical applications. The lightweight characteristics contribute to more efficient handling and installation, providing significant logistical advantages in remote locations.
Innovative Design Features
The V-port design allows for precise control of flow rates, enabling linear flow characteristics for fine adjustments in drilling operations. Advanced sealing technologies withstand extreme pressures and temperatures, ensuring leak-free operation in challenging conditions.
Key Advantages
- Precise Control: V-port design facilitates accurate modulation of flow rates
- Corrosion Resistance: Exceptional longevity in challenging environments
- Durability: Robust construction minimizes maintenance needs and downtime
- High-Temperature Performance: Effective operation in high-temperature settings
Technical Specifications
| Pressure Rating | PN1.6-4.0Mpa Class150-300Lb |
|---|---|
| Nominal Diameter | DN25-DN350 1"-14" |
| Drive Mode | Worm Gear, Pneumatic, Hydraulic, Electric |
| Body, Bonnet Materials | TA1, TA2, TA10, Gr2, Gr3 |
| Ball Materials | TA1, TA2, TA10, Gr2, Gr3 |
| Stem Materials | TA1, TA2, TA10, TC4, Gr2, Gr3, Gr5 |
| Sealing Ring Materials | PTFE, RPTFE, PPL, PEEK |
| Design Standards | GB/T12237, ASME B16.34 |
| Testing Standards | JB/T9092, GB/T13927, API6D, API598 |
Industry Applications
- Chemical Industry: Handling corrosive media including acids, alkalis, and oxides
- Petroleum and Natural Gas: Controlling flow and pressure in extraction, transportation, and processing
- Marine Engineering: Strong resistance to seawater corrosion in subsea pipelines and offshore platforms
- Aerospace: Lightweight, high-strength properties for hydraulic and fuel systems
- Food and Pharmaceutical: Non-toxic, contamination-free fluid control systems
Titanium ball valves offer long-term cost-effectiveness through reduced maintenance, extended service life, and improved operational efficiency. Their environmental benefits include minimized risk of fluid spills and recyclable material composition.
