Gr12 Titanium Hemispherical Dish Head ASTM B337
Gr12 Titanium Hemispherical Dish Head ASTM B337

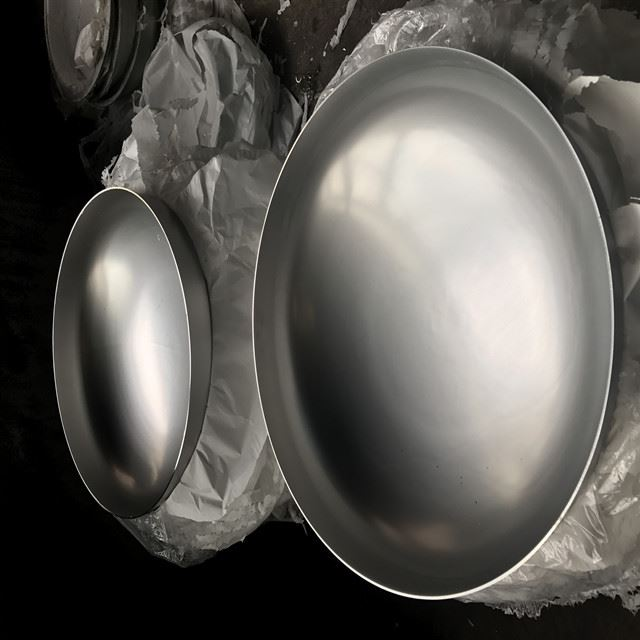

A dish head (also called a dish end, hemispherical head or elliptical dish end) closes the end of a cylindrical container and separates the internal medium from the outside. It is a structural part of storage tanks, heat exchangers, reactors, boilers and separation equipment, and it maintains the integrity of the vessel under internal pressure and external forces. This Gr12 titanium head is produced to ASTM B337.
Technical Specifications
| Standard | ASTM B337 |
| Material | Titanium alloy (Gr12) |
| Wall Thickness | 0.2 - 30 mm |
| Technique | Seamless, welded |
| Corrosion Resistance | High |
| Shell Side Material | Titanium / stainless steel |
| Third Party Testing | Available |
Dish Head Shapes
| Shape | Characteristic |
|---|---|
| Hemispherical head | Evenly distributes internal pressure; used in high pressure vessels |
| Oval head | Elliptical profile selected according to pressure and design |
| Disc head | Tori-spherical profile for general vessel ends |
| Conical head | Tapered shape for a smooth transition between cylindrical and conical sections |
| Flat head | Simple to make and weld; used where internal pressure is low |
Welding Methods
| Method | Description |
|---|---|
| Butt welding | Head edge joined directly to the cylinder wall for a strong full penetration joint |
| Flanged / unflanged | Head supplied with or without a flange on the straight edge |
| Seamless head | Formed without a weld seam where design requires |
Applications & Material Advantages
These heads are used on storage tanks, heat exchangers, reactors, boilers and separation equipment. Gr12 titanium resists corrosion in chemical and chloride bearing media and keeps good strength and weldability, so the head lasts longer than a common steel end in aggressive service.
Quality, Customization & Inquiry

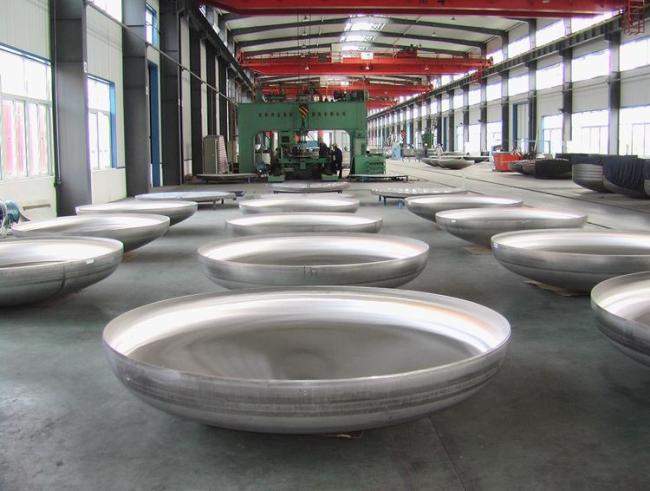

Heads are manufactured under an ISO 9001 quality system and third party testing can be arranged on request. Shapes, wall thickness and material grades can be made to your drawing. Please send your specification and quantity for a quotation.
