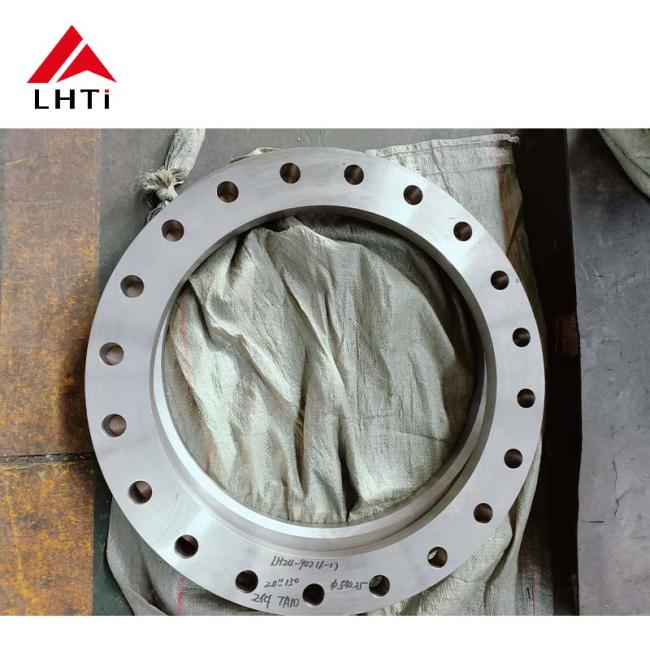

These DIN 86030 hubbed titanium slip-on flanges, available in grades Ti Gr2, Gr5 and Gr7, are engineered to meet rigorous industrial demands. They are essential where exceptional corrosion resistance, high strength and lightweight materials are needed, including chemical processing and marine applications. The hubbed design gives smooth pipe connections with strength and stability and makes welding easier, and the flange is supplied with a raised face (RF) or flat face (FF) for enhanced sealing when paired with a gasket.
Technical Specifications
| Flange Type | Hubbed slip-on (SO), or as per client drawing |
| Standard | DIN 86030; ASME B16.5 |
| Material | Titanium Gr2, Gr5, Gr7 |
| Dimensions | DN10 - DN600 |
| Pressure Rating | Class 150 (Class 150 - Class 2500 available) |
| Face Types | RF, FF, TG, RJ |
| Manufacturing Ways | Forging |
| Surface Finish | Smooth, sandblasted, pickled, mirror polished |
| Color | Ti natural |
| Quality Control | Professional inspection |
Titanium Grade Specifications
| Grade | Description | Typical Application |
|---|---|---|
| Ti Gr2 | Pure titanium offering excellent weldability and corrosion resistance in non-oxidizing environments | Chemical, marine and medical |
| Ti Gr5 | Titanium-aluminum-vanadium alloy providing higher strength for high-performance applications | High-performance industrial systems |
| Ti Gr7 | Palladium-alloyed titanium delivering exceptional resistance to sulfuric and hydrochloric acids | Chemical processing |
Titanium Grade Comparison
| Grade | Main Composition | Strength | Corrosion Resistance | Main Application |
|---|---|---|---|---|
| Ti Gr2 | Pure titanium (99.2% Ti) | Medium strength | Excellent | Chemical, marine, medical |
| Ti Gr5 | Ti-6Al-4V | High strength | Good | High-performance and automotive systems |
| Ti Gr7 | Titanium + palladium | Medium strength | Excellent in acids | Chemical processing, power generation |
Applications & Titanium Advantages
These hubbed slip-on flanges are used in chemical processing, marine pipelines and high-performance industrial systems. Titanium is lightweight yet strong, with excellent corrosion resistance and good weldability, so the flanged joint stays secure, leak-free and reliable in demanding service.
Quality, Customization & Inquiry
LHTi produces these flanges under ISO 9001, CE and API quality systems. Tolerance follows ISO 9001 or GB 12362 precision, and professional inspection and heat number marking are provided. Custom sizes and face types are available, packed in seaworthy shipment materials or as required by the buyer. Please send your drawing or specification for a quotation.
