Pure Titanium Welding Wire Gr1 to Gr12
Pure Titanium Welding Wire Gr1 to Gr12
This is a premium titanium wire covering pure titanium wire (Gr1) and titanium alloy welding wire in Gr1, Gr2, Gr5, Gr7 and Gr12. Titanium wire combines a light weight, a high strength-to-weight ratio, a metallic lustre and outstanding corrosion resistance. The wire is made by heat treatment, cold forming and annealing, and is supplied in straight, spool or coil form with a pickled or bright surface for welding, medical and industrial use.
Technical Specifications
| Material | Pure titanium / titanium alloy |
| Standard | ASTM B863, ASTM F2063 and others |
| Grade | Gr1, Gr2, Gr5, Gr7, Gr12 |
| Technique | Heat treatment, cold forming, annealing treatment |
| Wire Gauge | 0.1 - 7 mm, or as customized |
| Specification | Φ0.5 - Φ6.0 mm |
| Length | Coil by weight; straight wire 1000, 2000, 3000 mm or on request |
| Status | Annealed (M), hot working (R), cold working (Y) |
| Surface | Pickling surface / bright surface |

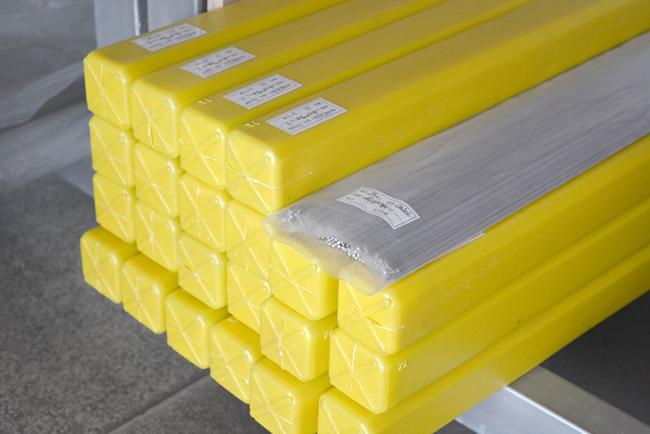

| Shape | Coil wire / spool wire / straight wire |
Industry Standards
| Category | Standards and Grades |
|---|---|
| American Standard | ANSI/AWS A5.16M:2004, ASTM B863-06a; ERTi-1, ERTi-2, ERTi-5, ERTi-7, ERTi-12, ERTi-23 |
| Japanese Standard | JIS Z333; additional grades YTx28, YTx35, YTAx640, YTx49Pd, YTAx640E |
| Aerospace Standard | AMS 4951 (ERTi-1), AMS 4954 (ERTi-5), AMS 4956 (ERTi-23) |
Wire Forms and Surface
| Form | Description |
|---|---|

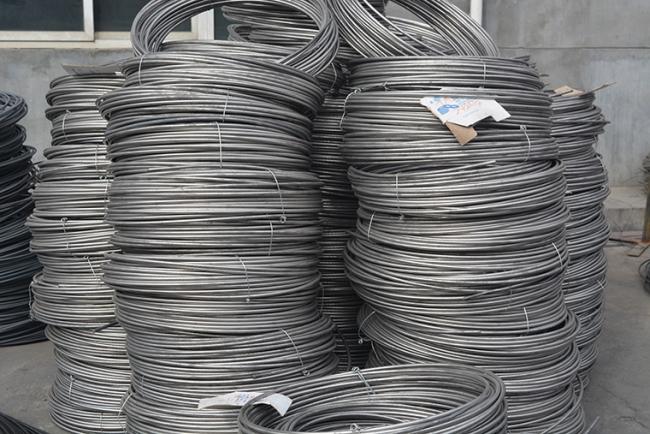

| Coil wire | Supplied by the weight of each coil |
| Spool wire | Wound on spools for continuous feed |
| Straight wire | Cut to 1000, 2000 or 3000 mm |
| Surface finish | Pickling surface or bright surface |
Applications & Titanium Advantages
This titanium wire is used for welding titanium and titanium alloy parts and for making medical devices, sporting goods, eyewear frames, jewellery, electroplating hangers and other corrosion-resistant products. Titanium is light, strong, non-magnetic and highly resistant to corrosion, which keeps welded joints clean and reliable in long-term industrial service.
Quality, Customization & Inquiry
LHTI supplies this titanium wire with strict quality control and material certificates available with the goods. Diameter, length, spool or coil weight, surface finish and grade can be customized, and goods are packed in a wooden case for export. Please send your specification for a quotation.
