Titanium flanges welding neck Gr2 UNS R50400 DN32 Type 11B PN16 in EN1092-1

一. titanium flanges function

ANSI B16.5 gr2 WN RF welding neck titanium flange

The flange, gasket and bolt are connected to each other as a detachable connection of a group of combined sealing structures.

Flange connection is an important connection method for pipeline construction.

The flange connection is easy to use and can withstand large pressures.

Titanium flange sealing face

raised surface (RF), Male and Female (MF), Tenon groove surface (TG), metal ring connection surface ,total four kinds.

titanium flange application

Mainly used in petrochemical, medical and health, power, aerospace, military, fire protection, metallurgy, shipbuilding, gas, and Environmental protection requires high pressure.

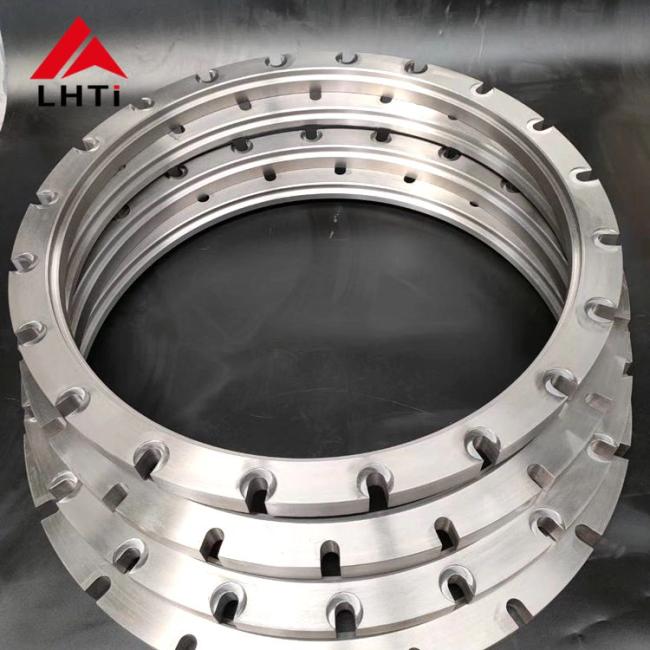

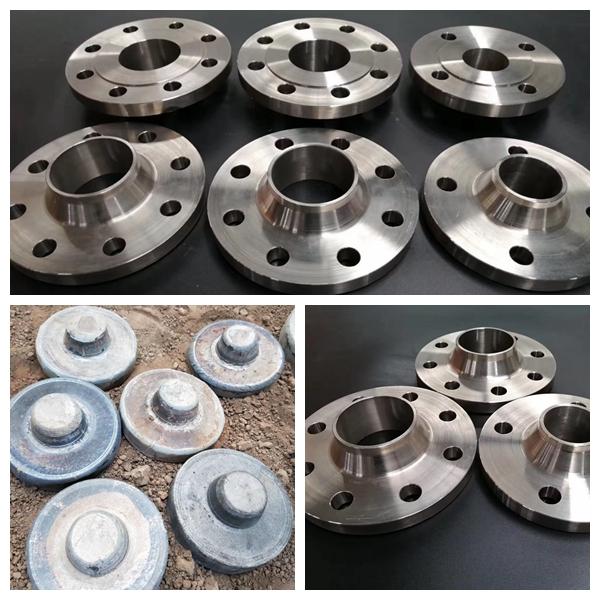

二. titanium flanges picture

Grade 2 titanium flange is the most commonly requested in the pipe valve and fitting industry, with great strength and corrosion resistance properties.

Grade 12 titanium flange  retains superior strength at higher temperatures and is known for its malleability and weldability. Titanium is often used in applications requiring high temperature and pressure service but with reduced weight.


三  Inspection  (BV ,SGS ,TUV .so on)

Kindly find below specifications for titanium flanges:
Standard: ANSI B16.5, ANSI B16.9(US standard)
Material: Gr2.Gr7.Gr12 etc
Demension: 3/8"-100"
Pressure: CL150#;CL300#;CL400#;CL600#; CL900# etc
Customized size welcome.

Standard: DIN EN 1092 & DIN2627~DIN2636 etc, (Germany standard)
Material: Gr1.Gr2.Gr5.Gr7.Gr9.Gr12 etc
Demension: DN10~DN2000 according your request.
Pressure: PN6,PN10,PN16,PN25,PN40 etc
