Gr12 Titanium Welding Neck Flange UNS R53400 Ti TYP 11 PN 25 With 4 Hole

Price Negotiable

Price: $175/pcs

MOQ: 1pcs

Delivery Time: 15 days

Brand: LHTi

Product Description

Gr12 UNS R53400 Titanium welding neck Flange Ti TYP 11 PN 25 with 4 hole price

1. Titanium flange sealing face

raised surface (RF), Male and Female (MF), Tenon groove surface (TG), metal ring connection surface ,total four kinds.

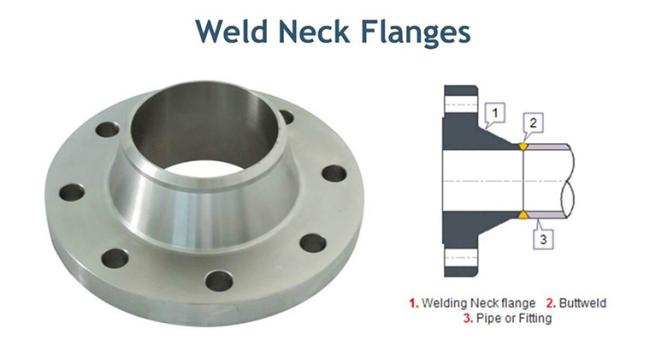

2. titanium WN flanges drawing

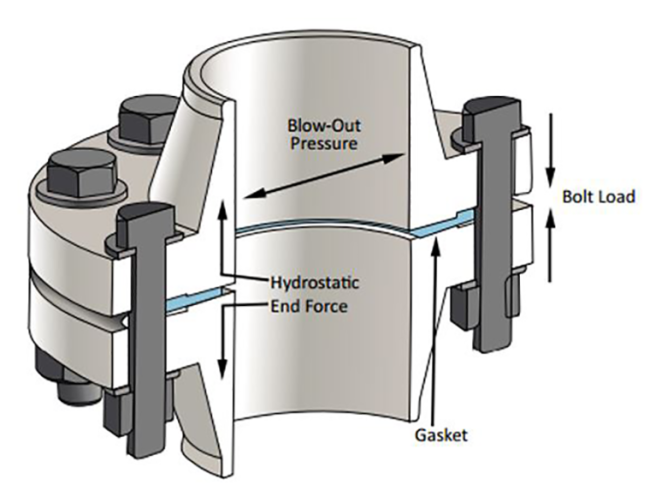

3. titanium flanges function

The flange, gasket and bolt are connected to each other as a detachable connection of a group of combined sealing structures.

Flange connection is an important connection method for pipeline construction.

The flange connection is easy to use and can withstand large pressures.

products	Titanium Flange
Material Grade	Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9, TI-6Al4v,
Certification	ISO9001:2008
Standard	ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5
size	1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure Clase	PN0.25~32Mpa
	(DIN) PN6,PN10,PN16,PN25 though PN250
	150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB
Technique	Forged and CNC Machined

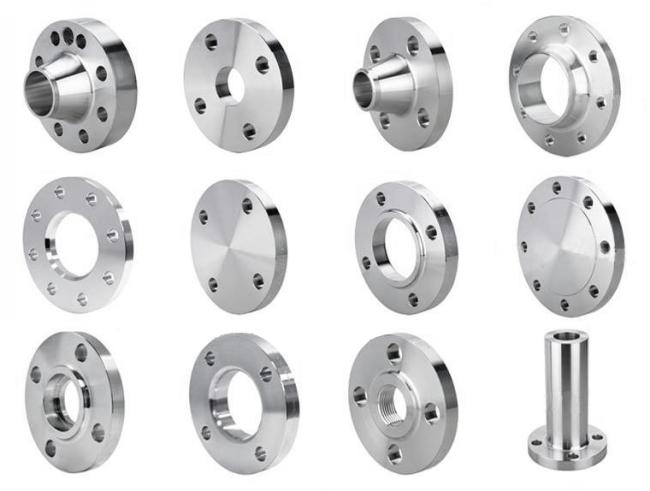

type	WNRF , SORF , BLIND ,SW, PL
Flange surface	FF,RF,TG,RJ etc
Application	used in cars, glasses,medical equipment , electronics , petrochemical equ ipment
Advantage	1. Long service life
	2. corrosion -resistant
	3.hign yeiled strenth and tensile strength.

Chemical requirements

	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr 2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr 5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr 7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr 9	0.03	0.08	0.015	0.25	0.15	2.5~3.5	2.0~3.0	/	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

titanium flange application

Mainly used in petrochemical, medical and health, power, aerospace, military, fire protection, metallurgy, shipbuilding, gas, and Environmental protection requires high pressure.
