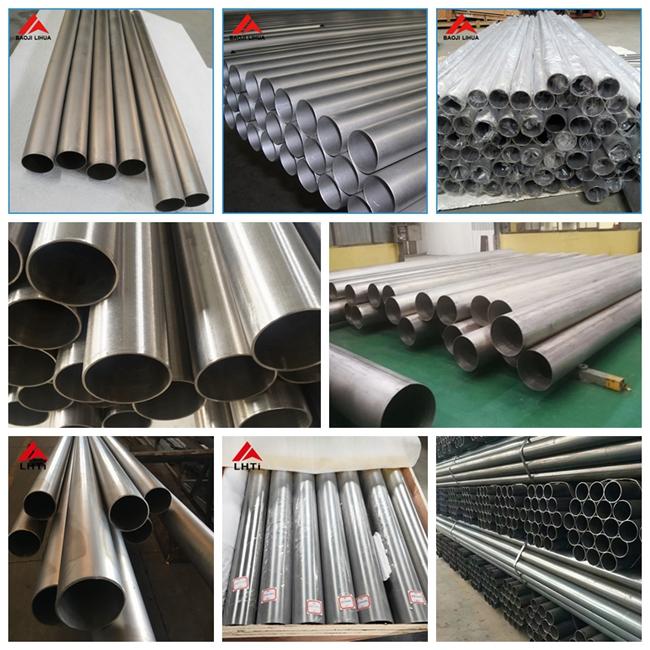

GR1 GR2 Titanium Tube Dia 38mm To Dia 120mm Titanium Straight Pipe
GR1 GR2 Titanium Tube Dia 38mm To Dia 120mm Titanium Straight Pipe
| Name | Titanium straight Tube |
| Tube Shape | Round |
| Material | pure titanium |
| Grade | Gr1,Gr2 |
| Type |
Seamless,welding |
| OD | 1.5 inch-5 inch |
| Wall Thickness | 1.0mm/1.2mm/1.5mm or as customized |
| Length | 1000mm |
| surface | Bright surface.pickling surface |
| Certificate | EN 10204/3.1B, Raw Materials Certificate |
| Application |
Auto ,moto exhaust system |
| Element | N | C | H | Fe | O | Al | V | Mo | Ni | Pd | Ti |
| Type | |||||||||||
| GR.1 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.2 | ≤0.18 | Residual | |||||
| GR.2 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.3 | ≤0.25 | Residual | |||||
| GR.3 | ≤0.05 | ≤0.08 | ≤0.015 | ≤0.3 | ≤0.35 | Residual | |||||
| GR.7 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.3 | ≤0.25 | 0.12-0.25 | Residual | ||||
| GR.9 | ≤0.02 | ≤0.08 | ≤0.015 | ≤0.25 | ≤0.15 | 2.5-3.3 | 2.0-3.0 | Residual | |||
| GR.12 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.3 | ≤0.25 | 0.2-0.4 | 0.6-0.9 | Residual |
| Titanium welded pipe for heat exchanger equipments Titanium welded pipe for chemial and Oil industry |
ASTM B338, ASTM B862 |
Gr1 GR2 GR7 GR12 | OD (10.3~914) = (1/8~36)Inch WT (0.5~30.96) = (0.049~1.219) Inch Length as your requirment |
||||
| Titanium seamless tube (heat exchanger ) |
ASTM B338, ASTM B337, ASTM B861 |
GR1 GR2 GR3 GR5 GR6 GR7 GR9 GR12 etc | OD (1.5~420) × WT (0.3~16 ) × Length 18000 mm |
||||
Titanium tube have the feature of lightweight, high strength and superior mechanical properties. Titanium tubes are widely used in heat-exchange equipment, such as tube-type heat-exchanger, coiled type heat-exchanger, coil heat-exchanger, condenser, evaporator, and transmission pipeline. Many nuclear power industries use titanium tubes as the unit standard tubes.

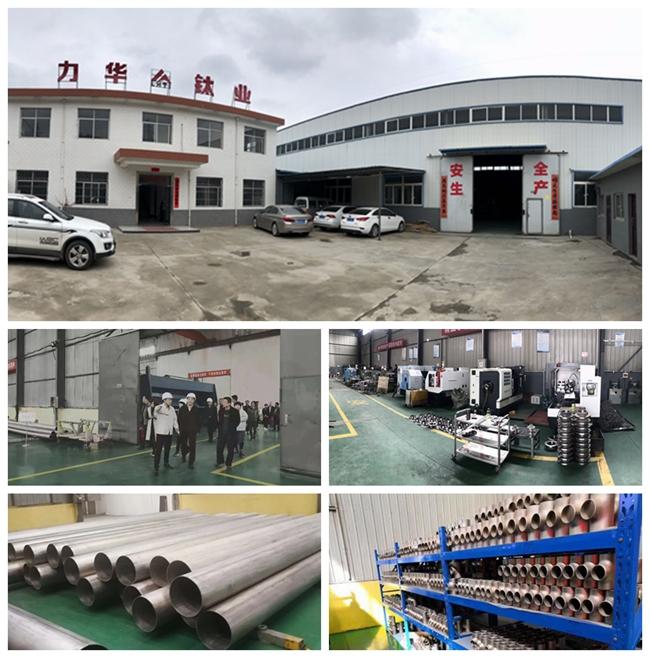

3.Factory show
Flattening Test
Tubing shall withstand, without cracking, flattening under a load applied gradually at room temperature until the distance between the load platens is not more than H in. H is calculated as SB861 standard.
Flaring Test
For tube 3 1/2 in.(88mm) in outside diameter and smaller, and 0.134 in.(3.4mm) in wall thickness and thinner, a section of tube approximately 4 in.(102mm) in length shall withstand being flared with a tool having a 60°included angle until the tube at the mouth of the flare has been expanded in accordance with table4 the flared end shall show no cracking or rupture visible to the unaided eye. Flaring tests on larger diameter tube or tubing outside the range of standard shall be as agreed upon between the manufacturer and the purchaser.
Hydrostatic or Nondestructive Testing
Welded tubing shall be tested using both a nondestructive electromagnetic test and an ultrasonic test as described in standard. Seamless and welded/cold worked tubing shall be tested using an ultrasonic test as described in standard.
Welded or seamless tubing shall be tested with a hydrostatic or pneumatic test as described in standard. Other requirements details can check standard.

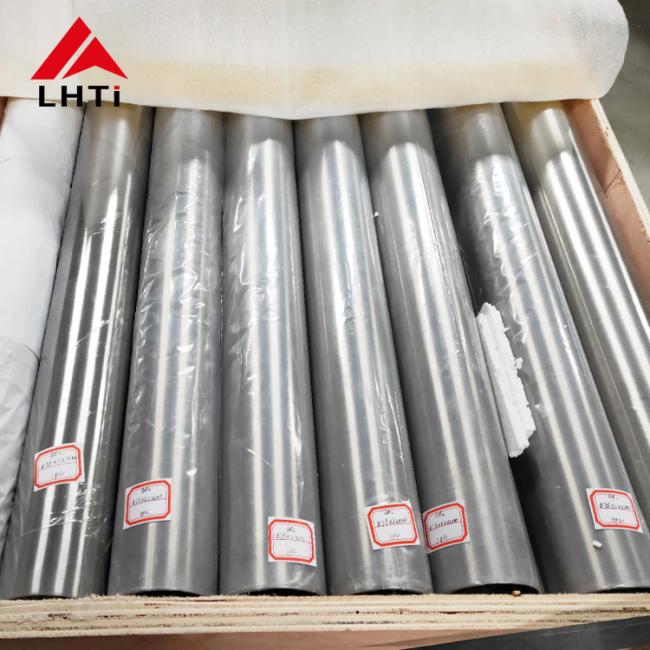

Packing details:
PVC packing, carton packing, or as customer request woodeng case.
ASTM B861 Titanium Alloy Seamless Pipe have to arrive safely, quickly and without damages at their destination in any part of the world. Packing is also an essential part of quality assurance
