Round Titanium Alloy Rod Tc4 Ti6Al4V ASTM B348 GR5 Long Service Life
Wholesale ASTM B348 GR5 / tc4 Ti6Al4V round titanium alloy bar / rod
1. Product Information of Titanium Rod
Grade: GR1, GR2, GR5, GR7, GR12, GR23, GR4 ELI, GR5 ELI etc.
Standard: ASTM B348, ASME SB348, ASTM F67, ASTM F136
Application: Industrial & Medical use
Shape: Round, Square, Hex
Diameter: 6-350mm
Length: Max 6000mm
Surface: Polishing, Pickling
Advantages:
- Precision Manufacturing
- Light in weight
- Excellent corrosion resistance
- High Strength
- Excellent strength to weight ratio
- High temperature resistance
- Low temperature resistance
- Good thermal conductivity
- Low density
- Long service life
2. Tolerance of Titanium Rod
| Diameter(mm) | h7 | h8 | h9 | h10 | h11 | h12 | |
| Tolerance precision (um) | |||||||
| 3~6 | 12 | 18 | 30 | 48 | 75 | 120 | |
| 6~10 | 15 | 22 | 36 | 58 | 90 | 150 | |
| 10~18 | 18 | 27 | 43 | 70 | 110 | 180 | |
| "h"stands for a tolerance range(-x,+0),on the contrary,"H"stands for a tolerance(-0,+X) | |||||||
3. Chemical Requirements of Titanium Rod
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
4. Tensile Requirements of Titanium Rod
| Grade | Tensile strength(min) | Yield strength(min) | Elongation(%) | ||
| ksi | M Pa | ksi | M Pa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 9 | 90 | 620 | 70 | 438 | 15 |
| 12 | 70 | 438 | 50 | 345 | 18 |

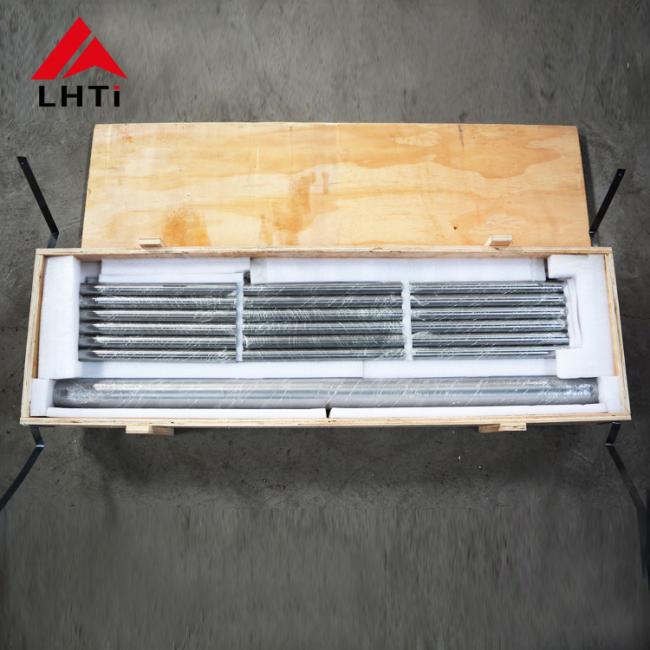

5. Detailed Images of Titanium Rod
6. Our Factory
- As a leading manufacturer & trader of titanium rod for over 16 years, Baoji Lihua has exported our titanium rod to many countries, including the US, Ukraine, Romania, Italy and Chile etc. The quality of our products is widely recognized.
- We strictly abide by ASTM B348 during the production process of titanium rod to ensure the precision.
- Customized products are always welcomed.
- We know the market very well so our price will make you more competitive.
- We have a professional technical team. Our company offers a complete service to you from A to Z, with our dedicated team.
7. Our Services
(1) We have the stocks so we would provide our clients the short delivery time.
(2) Strict control from raw materials till products finished, so the quality is guaranteed.
(3) Customized sizes are offered as well as specified sizes and multiple sizes.
(4) Strict quality test from raw material to product.
(5) Original mill sheet test reports EN 10204.3.1 is available.
