Gr7 is alpha titanium alloy, and its process performance and mechanical properties are similar
to industrial pure titanium. When the amount of Pd added to titanium reaches 0.1% -0.2%,
the corrosion rate of titanium in sulfuric acid and hydrochloric acid is significantly reduced,
further increasing the content of Pd, the corrosion rate of the alloy is almost unchanged, and
when the Pd content is less than 0.05% Instead, the corrosion rate increases. When the acid
concentration is low, the titanium-palladium alloy containing 0.13% Pd has satisfactory corrosion
resistance, but when the acid concentration is high, Ti-0.2Pd has better corrosion resistance, so
Ti-0.2Pd is more As appropriate.
| Product mame | Titanium sheet |
| Material | Titanium |
| Grade | gr7 (Ti-0.2Pd) |
| Standard | ASTM B265, ASME SB265 |
| Thickness | 3mm 5mm |
| Process | cold rolled |
| Status | M, annealed |
| Surface | pickling, polished |
| Third-party testing | SGS, TUV, BV etc. |
| application |
chemicals, machinery and equipment, electroplating equipment, environmental protection equipment, electronics, watches and clocks, glasses, jewelry, sporting goods, golf and precision processing industries |
Quality supervision: starting from the sponge titanium composition inspection, the upper,
middle and lower samples of the ingot are sampled for composition inspection, and ultrasonic
non-destructive inspection is performed to ensure the quality of the ingot. Physical performance
test to ensure product performance.
Chemical requirements
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
Titanium sheet in stock:
Thickness(0.8mm/1.0mm)*Width≤1000mm*L≤2000mm
Thickness(1.0mm/1.2mm/1.5mm/2.0mm)*Width≤2000mm*L≤6000mm
Thickness(2.0mm/2.5mm/3.0mm)*Width≤2000mm*L≤6000mm
Thickness(3.0mm/3.5mm/4.0mm/5.0mm/6.0mm)*Width≤2000mm*L≤6000mm
Tensile requirements
| Grade | Tensile strength(min) | Yield strength(min) | Elongation(%) | ||
| ksi | M Pa | ksi | M Pa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 9 | 90 | 620 | 70 | 438 | 15 |
| 12 | 70 | 438 | 50 | 345 | 18 |

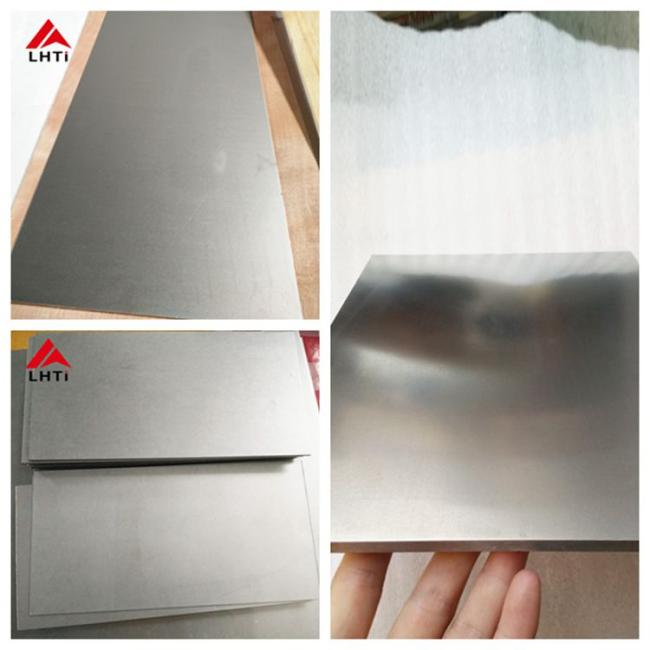

Detailed pictures:
Packaging and shipping:
Standard export packaging
Small size titnium sheets, each will be wrapped by white paper.
Big size titanium sheets, there will be a pearl cotton between each sheet to apart them and reduce
collisions and friction.
Inside use foam and pearl cotton padding to protect cargo,to ensure the safety of long-distance
transportation.
Main cooperating courier companies:TNT FedEx DHL UPS, and choose the most favorable courier
company for customers according to different countries.
For air and sea shipping, we always choose the fastest and safe route.
