ISO Anti Corrosion Titanium Equipment Gr2 Titanium Tube Heat Exchanger
Industrial boiler evaporator condenser titanium tube shell and tube heat exchanger
In petroleum, chemical, light industry, pharmaceutical, energy and other industrial production, heat exchanger is often used to heat or cool low-temperature fluid, vaporize liquid into steam or condense steam into liquid. Heat exchanger is a kind of unit equipment, such as heater, cooler and condenser; It can also be an integral part of a process equipment, such as the heat exchanger in the ammonia converter. Heat exchanger is an important unit equipment in chemical production. According to statistics, the tonnage of heat exchanger accounts for about 20% of the whole process equipment, and some even as high as 30%. Its importance can be imagined.
|
Material |
Gr2 Titanium |
|
Heat exchanger area |
according to working conditions |
|
Working/Design temperature |
according to the design optional |
|
Pressure |
according to the design optional |
|
Application |
oil, chemical, pharmacy, food, electricity, paper… |
|
Common using heat exchange tubes size |
|||||||||||||||
|
Item |
OD(mm) |
WT(mm) |
WT(mm) |
WT(mm) |
WT(mm) |
WT(mm) |
WT(mm) |
WT(mm) |
WT(mm) |
WT(mm) |
WT(mm) |
WT(mm) |
WT(mm) |
WT(mm) |
Form |
|
1 |
10--15 |
0.5 |
0.6 |
0.8 |
1 |
1.25 |
1.5 |
2 |
2 |
2.5 |
3 |
3.5 |
4 |
4.5 |
Cold rolled or cold drawn seamless pipe |
|
2 |
15-20 |
0.6 |
0.8 |
1 |
1.25 |
1.5 |
2 |
2 |
2.5 |
|
|
|
|
|
|
|
3 |
20-30 |
0.8 |
1 |
1.25 |
1.5 |
2 |
2 |
2.5 |
|
|
|
|
|
|
|
|
4 |
30-40 |
1.25 |
1.5 |
2 |
2 |
2.5 |
|
|
|
|
|
|
|
|
|
|
|
40-50 |
1.5 |
2 |
2 |
2.5 |
3 |
|
|
|
|
|
|
|
|
|
|
|
50-60 |
1.5 |
2 |
2 |
2.5 |
3 |
3.5 |
|
|
|
|
|
|
|
|
|
|
60-80 |
2 |
2.5 |
3 |
3.5 |
4 |
|
|
|
|
|
|
|
|
|
|
5 |
16 |
0.5 |
0.6 |
0.8 |
1 |
|
|
|
|
|
|
|
|
|
Welded pipe |
|
6 |
19 |
0.5 |
0.6 |
0.8 |
1 |
1.25 |
|
|
|
|
|
|
|
|
|
|
7 |
25,27 |
0.5 |
0.6 |
0.8 |
1 |
1.25 |
1.5 |
|
|
|
|
|
|
|
|
|
8 |
31.32.33 |
0.8 |
1 |
1.25 |
1.5 |
2 |
|
|
|
|
|
|
|
|
|
|
9 |
38 |
1.5 |
2 |
2.5 |
|
|
|
|
|
|
|
|
|
|
|
|
10 |
50 |
2 |
2.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
11 |
63 |
2 |
2.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
12 |
6-10 |
0.5 |
0.6 |
0.8 |
1 |
1.25 |
|
|
|
|
|
|
|
|
Welded (seamed) or rolled (seamless) |
|
13 |
10-15 |
0.5 |
0.6 |
0.8 |
1 |
1.25 |
1.5 |
|
|
|
|
|
|
|
|
|
14 |
15-20 |
0.5 |
0.6 |
0.8 |
1 |
1.25 |
1.5 |
|
|
|
|
|
|
|
|
|
15 |
20-25 |
0.5 |
0.6 |
0.8 |
1 |
1.25 |
1.5 |
|
|
|
|
|
|
|
|
|
16 |
25-30 |
0.5 |
0.6 |
0.8 |
1 |
1.25 |
1.5 |
2 |
|
|
|
|
|
|
|

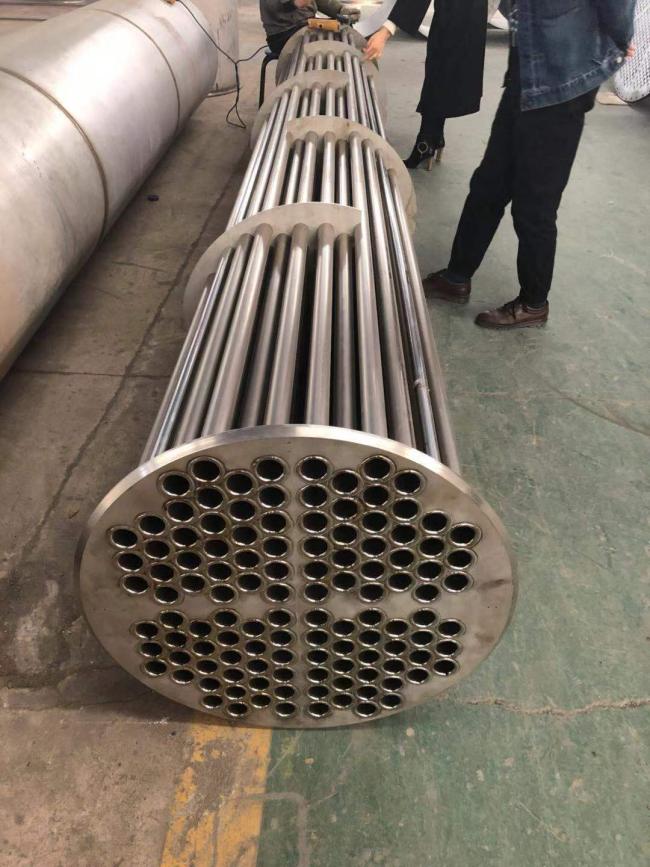

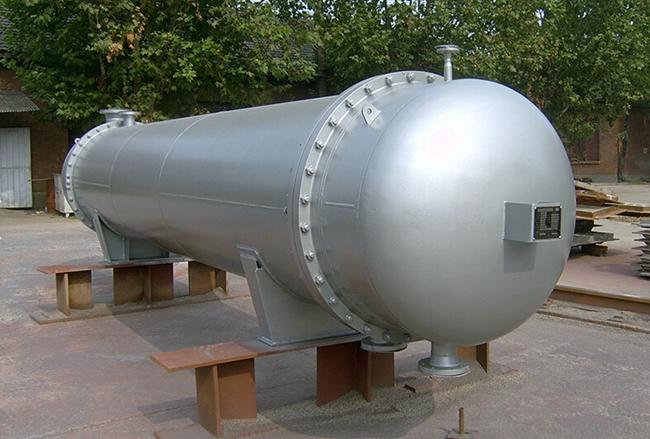

Detailed images:
