45# Forged Steel Cable Tray Roll Forming Machine High Productivity
China Factory Cable Tray Roll Forming Machine Cold Forming Machine Production Line

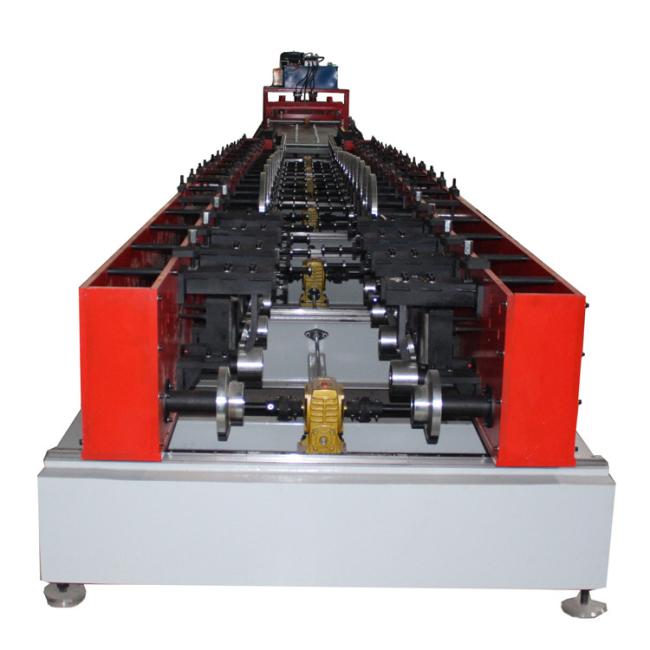

China Factory Cable Tray Roll Forming Machine Cold Forming Machine Production Line adopt coil production material to form CT100-600 cable ladder Profiles through 5 Ton hydraulic decoiler, Leveling, Servo feeding, Hydraulic Pre-Punching Machine, Main cable ladder roll forming part, Post hydraulic cutting, hydraulic station, PLC control system and Non-power type support table.The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.Working Speed: about 0-15 m/min ( excluding punching & cutting time);
Cable tray is used to support and protect when wire electricity, electric power, communication control and instrumentation cable.
FMS compose this machinery as a cassette replacement type or automatic width control type in accordance with product.
And we supply equipment that is suitably designed for the use of product which can be formed after perforating a partition and other panels.
specifications
|
item
|
value
|
|
Applicable Industries
|
Hotels, Building Material Shops, Restaurant, Home Use
|
|
Production Capacity
|
8-15 m/min
|
|
Voltage
|
380v
|
|
Dimension(L*W*H)
|
36*1.5*1.8m
|
|
Weight
|
1500kg
|
|
Warranty
|
1 Year
|
|
Key Selling Points
|
High Productivity
|
|
Rolling thinckness
|
0.8-2mm
|
|
Feeding width
|
914-1450mm
|
|
Core Components
|
Motor, Other, Pump, PLC
|
Payment terms and Delivery
40% in advance as down payment
60% is paid before the shipment is processed
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
