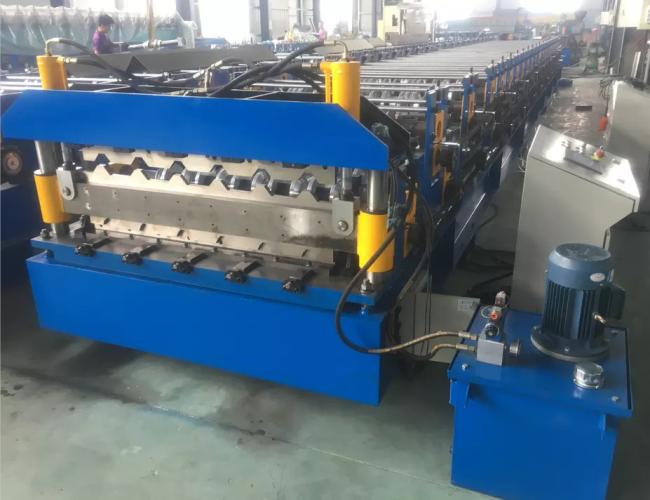

Roof Tile Wall Panel Double Layer Roll Forming Machine Color Steel Galvanized
Roof Tile Wall Panel Double Layer Roll Forming Machine Color Steel Galvanized
Company specializing in the productian of Dagong machines, foor plate machine, guardrail plate machine, corrugated tie machine , shearing machine, sub-board machine , highway guardrail , tile machine equipment , automatic tile press , iron Piva machine, iron tile machine, all automatic C-shaped steel machine. glazed tile machine
Detailed Parameters:
| Material of the profile | up to 235Mpa, GI or color steel |
| Thickness range | 0.3-0.7mm |
| Main motor power | 5.5kw, AC motor, motor inside of main machine |
| Roll station | Top layer: about 18 stations Bottom layer: about 20 stations |
| Shaft diameter | ￠70mm |
| Machine roll forming speed | 0-15m/min |
| Working pressure | 12-16Mpa adjustable |
| Hydraulic power | 4kw |
| Wheel material | 45# steel hard chrome plating |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
