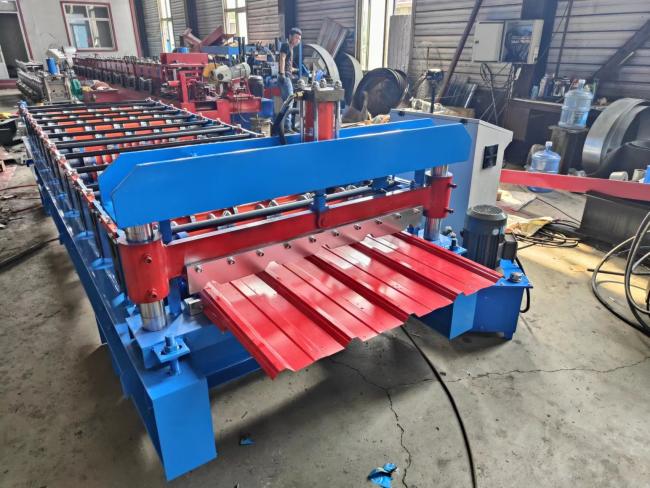

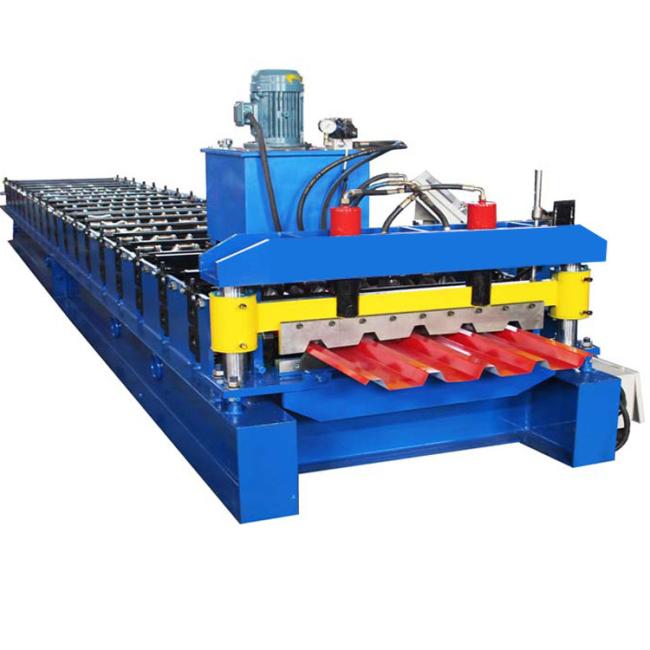

IBR Roofing Tile Roll Forming Machine Fit Width 1000mm GI PPGI Pre Painted Steel Coil
Price:
7500$USD-10000$
MOQ:
1 SET
Delivery Time:
30 Work days
Brand:
Famouse
Product Description
IBR Roofing Tile Roll Forming Machine,Fit Width 1000mm GI,PPGIpre-Painted Steel Coil, Galvanized Steel Coil, Galvalume
(1). Roller material: 45# steel with CNC machining and surface is being hard chrome;
(2). Diameter of shaft: ￠70mm solid forged 45 #steel, quenching process;
(3). Material of shaft: solid 45# steel with grinding process;
(4). Frame of the machine: welded with 350H section steel;
(5). Wall panel thickness: 16mm;
(6). Forming motor power: 3KW;
(7). Hydraulic station motor power: 3KW;
(8). Control system: PLC brand is DELTA from Taiwan;
(9). Material of cutting blade: Cr12MoV with hard treatment, HRC52-68;
(11). Driving mode: single chain 1 inch;
(11). Forming speed: 0-15m/min;![]()
![]()
