Omega Channel Low Noise CZ Purlin Roll Forming Machine
Omega Channel Low Noise CZ Purlin Roll Forming Machine
Omega Channel Low Noise CZ Purlin Roll Forming Machine is used to produce the furring channels, the ceiling batten channel, the roofing batten channel for housees. Furring Channel, Roof Ceiling Batten Roll Forming Machine can work at the speed of 15-20 meters per minute, with servo motor tracking cutting. Machine body is pillar structural, with safety protection cover. There are two encoder to measure the length of the cutting productus, PLC is world famous PLC system.
Specification
| No. | Item | Description |
| 1 | Coil | Galvanized |
| Material Thickness | 1 mm- 3 mm | |
| 3 | Working Speed | 15- 20 m/min ( not including the cutting time) |
| 4 | Roller Station | 14 Raws |
| 5 |
Dimension |
6500*1300*1200 |
| 6 | Machine Weight | 8000 KG |
| 7 |
Electrical Control System |
PLC |
| 8 |
Drive Motor Power |
15KW |
| 9 |
Hydraulic Station Power |
15 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 2 inch |
| 13 |
Material of Shaft |
80 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application

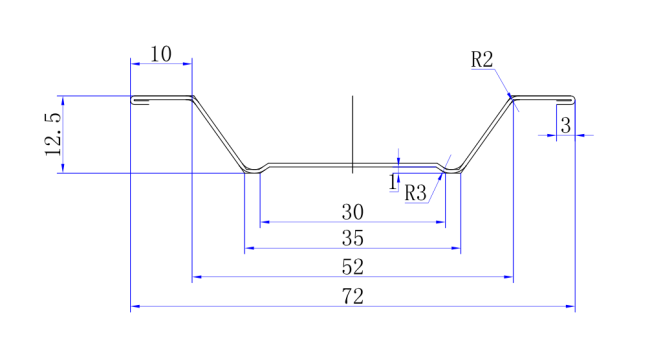

Omega Channel, Roof Ceiling Batten Roll Forming Machinecan produce the roofing batten and ceiling batten with the sizes 40mm, 43mm, 61mm and any other sizes you need.
we can help customer to deisgn the machine according to different requirement of the logo punching, embossing, and we can work together in a team for customer to work out the good profile with customer's factory's special charactors.
