Metal Steel Sheet Gl Making Ibr Roof Machine For Wall Construction

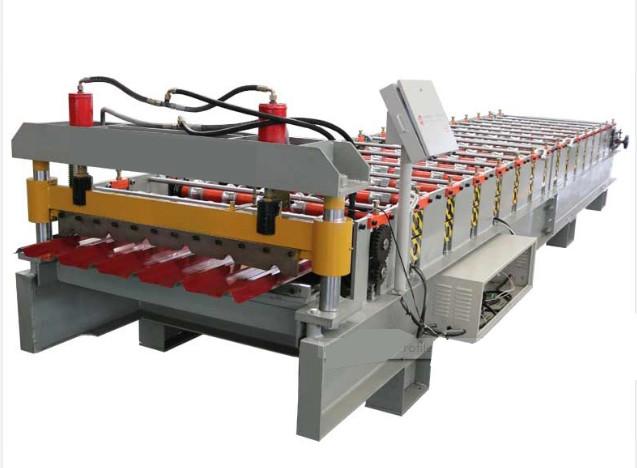

Ibr Metal Steel Sheet Roll Making Forming Machine For Roof Wall Construction
Features for roll forming machine
1. The tile formingmust use the high-number pulse input function, the high-number input performance is excellent, and the AB phase has strong anti-interference ability. And use the fixed value interrupt function to ensure the accuracy.
2. The detection part of the tile pressing machine includes: the pulse encoder for detecting the length of the colored steel tile, the up and down travel switch for the pressing, the up and down travel switch for the cutter, the up and down operation buttons for the pressing, the up and down travel button for the cutter, and the emergency stop switch , hydraulic start-stop switch, etc.
3. The executive part of the tile pressing machine has a frequency converter drive motor, a hydraulic station motor, two hydraulic solenoid valves for pressing, and two hydraulic solenoid valves for cutters.
4. The PLC has 14 inputs/10 relay outputs, which just meets the input and output requirements. With KDN text screen, it can complete parameter setting, alarm display, help information, production data display and so on.
Specification
|
Ibr Metal Steel Sheet Roll Making Forming Machine
|
|||
|
1
|
Formed Material
|
PPGI,GI,AI
|
Thickness:0.3-0.8mm Width:1000mm/1250mm(customized)
|
|
2
|
Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free)
|
|
3
|
Main body
|
Roller station
|
16 rows(As your requirement)
|
|
Diameter of shaft
|
80mm solid shaft
|
||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
||
|
Machine body frame
|
350 H steel
|
||
|
Drive
|
Chain transmission
|
||
|
Dimension(L*W*H)
|
8500*1600*1600(customize)
|
||
|
Weight
|
6.5T
|
||
|
4
|
Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
|
5
|
Power
|
Motor Power
|
5.5KW
|
|
Hydraulic system power
|
5.5KW
|
||
|
6
|
Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
|
7
|
Control system
|
Electric Box
|
Customized(famous brand)
|
|
Language
|
English(Support multiple languages)
|
||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
||
|
8
|
Forming Speed
|
15-20m/min
|
The speed depends on the shape of the tile and the thickness of the material.
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
