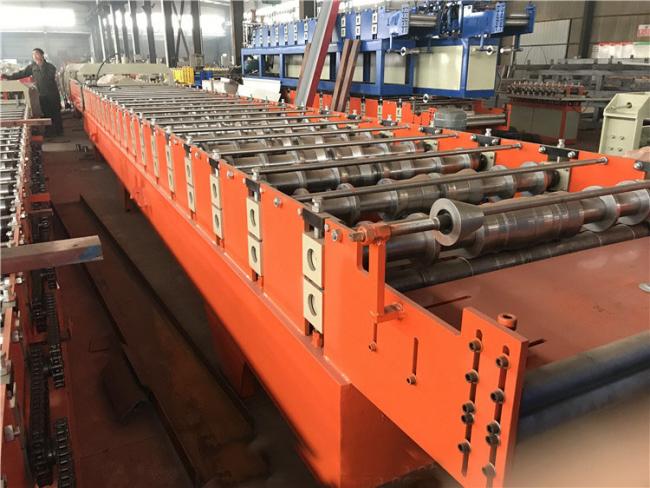

0.3mm Trapezoidal Sheet Forming Machine T35 Roof Zinc Making Chain Transmission
Trapezoidal Sheets T35 Roof Zinc Making Industriemaschin Machine For Russia
Trapezoidal Sheets T35 Roof Zinc Making Industriemaschin Machine For Russia.We has been established in 1995 as a professional manufacturers of ROLL FORMING MALCHINE.Now our Trapezoidal sheets t35 roof zinc making industriemaschin machine have been exported to many countries, the most important is that all you need can be customized.
| Article No. | Item Name | Specification |
| 1 | Width of feeding material | 1250 mm coil sheet |
| 2 | Thickness of feeding material | 0.3-0.8 mm coil sheet |
| 3 | Roller station | 9-15 stations |
| 4 | Shaft Diameter | 55-95 mm |
| 5 | Productivity | 8-12 m/min |
| 6 | Rollers' material | 45# steel forge |
| 7 | Shaft material | 45# steel |
| 8 | Weight | 4.5 ton |
| 9 | length | 7.5 m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 5 tons |
| 13 | Motor | 7.5 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 1.5 inch |
| 16 | Cutting system | Hydraulic cutter |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received
