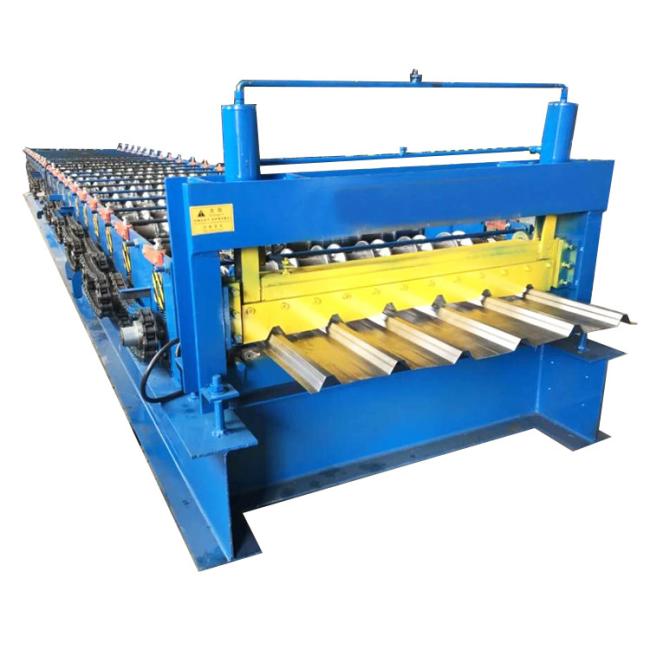

Steel Zinc GI Corrugated Sheet Roll Forming Machine For Pakistan
Steel Zinc Corrugated Sheet Roll Forming Machine For Pakistan
Steel Zinc Corrugated Sheet Roll Forming Machine For Pakistan. This machine takes GI/PPGI as raw material, through a series steps and can produce the metal roofing sheets. The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.
| ding host | Model | roof tile making machine |
| Forming size | 6500mm*1500mm*1300mm | |
| weight | 2.5T | |
| Host big frame structure | Frame welded | |
| Roll station | 13row | |
| Axial material | 45# steel | |
| Out diameter of shaft | Φ75mm | |
| Roller materials | 45# steel hard chromium plating | |
| Drive | By chain | |
| Sprocket chain | 1 inch | |
| Main power | 5.5 + 4 kw | |
| Working speed | 8-12 m/min | |
| Material thickness | 0.3-0.8mm | |
| Made board | 18mm |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
