Galfan Wire Coating Garden Gabion River Diversion Structures 6×2×0.3m
Galfan Wire Coating Gabion River Diversion Structures Gabion River es 6×2×0.3m
Products Description:
We now offer Gabions and River es using a new Galfan wire coating, which is a new improved form of Galvanisation, including 95% Zinc coating alloy with 5% Aluminium, it has vastly improved corrosion protection properties; providing 2-3 times more corrosion protection than normal Galvanising !

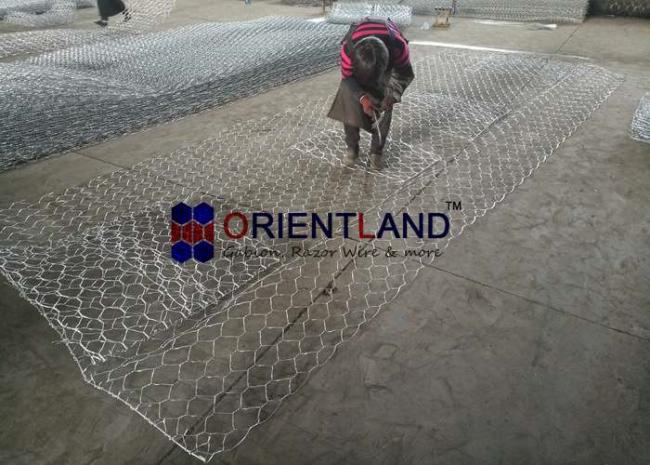

Internationally, gabion materials have been commonly used since the early 1880’s all over the world and have become one of the most popular soil erosion control and retaining wall solutions. Some have tried to use more rigid, welded-mesh elements and sometimes even plastic materials for gabion materials. However time and again the high strength and flexibility of the honeycomb shaped (hexagonal) steel wire mesh has proven to provide the ultimate solution.
Gabions are supplied in a wide range of sizes, commonly measured firstly in length x width x height of basket (all measurements in metres). Standard sized baskets are available, listed on our website, other sizes can sometimes be made available depending on the quantity required .
Gabion Technical Parameter:
| Wire dia.(mm) | 2.0 | 2.2 | 2.4 | 2.7 | 3.0 | 3.4 | 3.9 |
| Tolerance(mm) | 0.05 | 0.06 | 0.06 | 0.06 | 0.07 | 0.07 | 0.07 |
| Min. Zinc coating(g/m2) | 215 | 230 | 230 | 245 | 255 | 265 | 275 |
Gabion specifications:
| Mesh Size | Tolerance | Diameter | Length | Width | Height | Diaphragms |
|
80×100mm 100×120mm |
+16%/-4% | 2.0-3.0mm | 1.5 | 1 | 0.5 | 0 |
| 1.5 | 1 | 1 | 0 | |||
| 2 | 1 | 0.5 | 0/1 | |||
| 2 | 1 | 1 | 0/1 | |||
| 3 | 1 | 0.5 | 0/2 | |||
| 3 | 1 | 1 | 0/2 | |||
| 4 | 1 | 1 | 0/3 |
River Standard Sizes
Length(m) x Width(m) x Height(m) = Volume (m³) or Length x Width = Plan Area (m2)
|
2x1x0.3 (0.6m³)
|
6x2x0.17 (2.04m³) |
| 3x1x0.3 (0.9m³) | 6x2x0.23 (2.76m³) |
| 4x1x0.3 (1.2m³) | 6x2x0.30 (3.60m³) |
Gabion box application:
- Retaining wall structures
- River and canal training works
- Erosion and scour protection; roadway protection; bridge protection
- Hydraulic structures, dams and culverts
- Coastal defence and protection works
- Wall Cladding
- Rockfall and soil erosion protection
