River Training Gabion Baskets Roadway Drainage Gabion Mesh
River Training Gabion Baskets Roadway Drainage Gabion Mesh
Products Description:

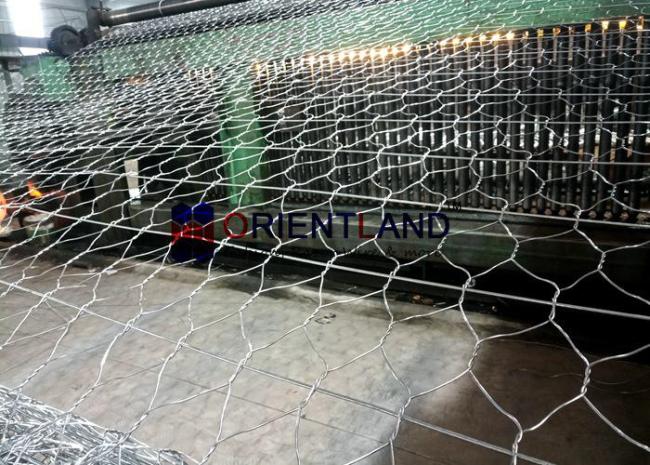

Gabions are wire mesh boxes, containers or baskets filled with rock to prevent soil erosion and to retain/contain soil particles. Gabions and geotextiles are normally used together to reduce water velocities and to re-capture river bed sediment in streams.
Flat Gabions, called River or es, are widely used in river courses where soil erosion is a problem over a large flat or sloped area in need of protection against soil loss or scour.
They are used mostly in the civil engineering industry, especially in the construction of roadway drainage structures.
Gabion Technical Parameter:
| Wire dia.(mm) | 2.0 | 2.2 | 2.4 | 2.7 | 3.0 | 3.4 | 3.9 |
| Tolerance(mm) | 0.05 | 0.06 | 0.06 | 0.06 | 0.07 | 0.07 | 0.07 |
| Min. Zinc coating(g/m2) | 215 | 230 | 230 | 245 | 255 | 265 | 275 |
Gabion specifications:
| Mesh Size | Tolerance | Diameter | Length | Width | Height | Diaphragms |
|
80×100mm 100×120mm |
+16%/-4% | 2.0-3.0mm | 1.5 | 1 | 0.5 | 0 |
| 1.5 | 1 | 1 | 0 | |||
| 2 | 1 | 0.5 | 0/1 | |||
| 2 | 1 | 1 | 0/1 | |||
| 3 | 1 | 0.5 | 0/2 | |||
| 3 | 1 | 1 | 0/2 | |||
| 4 | 1 | 1 | 0/3 |
River Standard Sizes
Length(m) x Width(m) x Height(m) = Volume (m³) or Length x Width = Plan Area (m2)
|
2x1x0.3 (0.6m³)
|
6x2x0.17 (2.04m³) |
| 3x1x0.3 (0.9m³) | 6x2x0.23 (2.76m³) |
| 4x1x0.3 (1.2m³) | 6x2x0.30 (3.60m³) |
Gabion box application:
- Retaining wall structures
- River and canal training works
- Erosion and scour protection; roadway protection; bridge protection
- Hydraulic structures, dams and culverts
- Coastal defence and protection works
- Wall Cladding
- Rockfall and soil erosion protection
