Flexible High Strength Wire Gabion Wall Baskets Revegetation PVC Coated Gabion Weirs
Flexible High Strength Wire Gabion Baskets Revegetation PVC coated Gabion Weirs
Products Description:
The woven mesh has a high tensile strength, as well as a high compressive strength when filled with suitable un-weathered rock.
Our materials are quality assured, meet with the SANS 1580 specification and are used in a very wide range of applications.

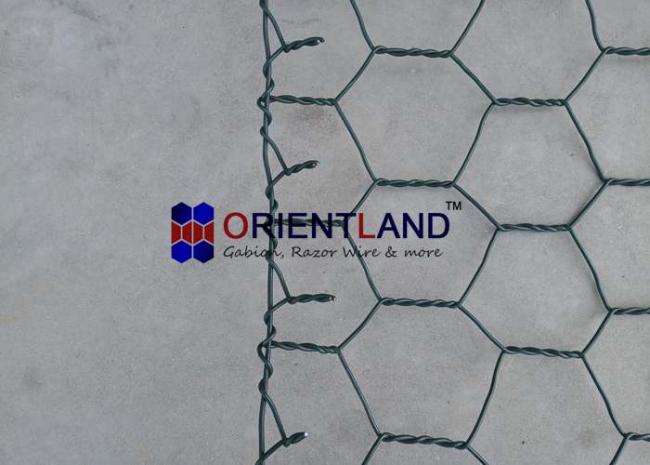

We manufacture Gabions using a Class A Galvanising – or together with an additional 0.5mm thickness PVC coating – for hexagonal type woven wire mesh gabion materials.
Gabion Technical Parameter:
| Wire dia.(mm) | 2.0 | 2.2 | 2.4 | 2.7 | 3.0 | 3.4 | 3.9 |
| Tolerance(mm) | 0.05 | 0.06 | 0.06 | 0.06 | 0.07 | 0.07 | 0.07 |
| Min. Zinc coating(g/m2) | 215 | 230 | 230 | 245 | 255 | 265 | 275 |
Gabion specifications:
| Mesh Size | Tolerance | Diameter | Length | Width | Height | Diaphragms |
|
80×100mm 100×120mm |
+16%/-4% | 2.0-3.0mm | 1.5 | 1 | 0.5 | 0 |
| 1.5 | 1 | 1 | 0 | |||
| 2 | 1 | 0.5 | 0/1 | |||
| 2 | 1 | 1 | 0/1 | |||
| 3 | 1 | 0.5 | 0/2 | |||
| 3 | 1 | 1 | 0/2 | |||
| 4 | 1 | 1 | 0/3 |
River Standard Sizes
Length(m) x Width(m) x Height(m) = Volume (m³) or Length x Width = Plan Area (m2)
|
2x1x0.3 (0.6m³)
|
6x2x0.17 (2.04m³) |
| 3x1x0.3 (0.9m³) | 6x2x0.23 (2.76m³) |
| 4x1x0.3 (1.2m³) | 6x2x0.30 (3.60m³) |
Gabion box application:
Gabions have been around for over a hundred years and have a wide range of applications and new ones are continually being found. We have listed below the most common applications to date, manufactured using either woven double twisted or welded square mesh.
1. Mine – Primary Crush Tip Walls
2. River Diversion Structures
3. Rockfall Mesh Netting
4. Hydrochambers (Water Storage)
5. Biofilters (Sewage Plants)
6. Longitudinal River Structures
7. Low-Level and Irish Crossings
8. Roadway Culvert In and Outlet Structures
9. Dam Embankment Protection
10. Gabion Weirs
11. Gabion Ornaments
12. Gabion Stepped Spillway
13. River Training Structures
14. Channel Lining
15. Terrace Walls
16. Reinforced Soil Walls
17. Skin – Revetment Walls
18. Mass – Gravity Retaining Walls
19. Hiking Trail Steps
20. Architectural Applications
Gabion Babsket packing in bundles
