Hesco Earth Filled Security 5mm Defensive Barrier
Hesco Earth Filled Security Barriers Rapidly Deployable Wire Mesh Baskets
Products Description

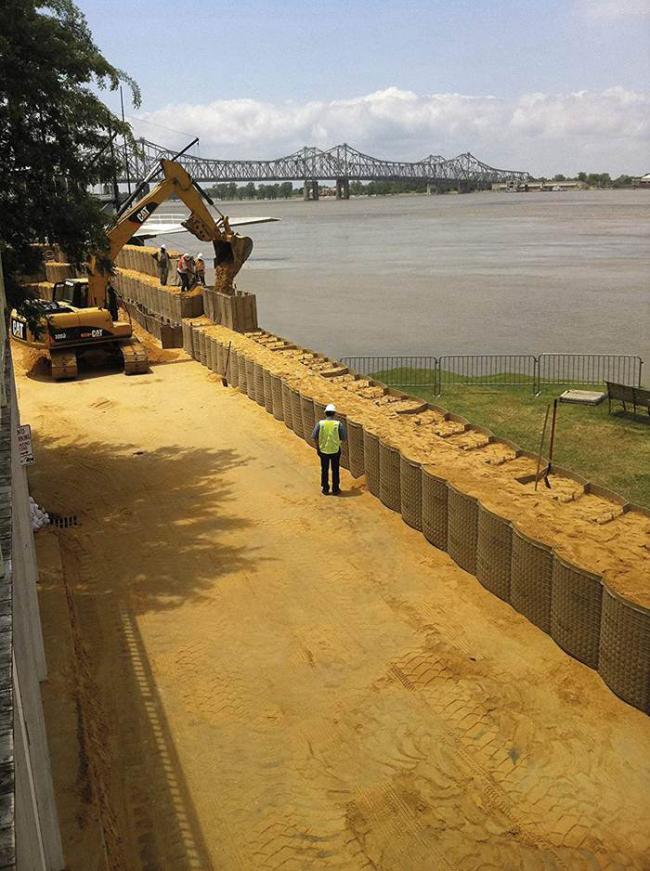

Hesco earth-filled defensive barriers have been used worldwide to create perimeter protection barriers; construct temporary accommodation; mitigate VBIED’s and have now evolved to offer semi-permanent security fence solutions.
Since the First Gulf War the rapidly deployable wire mesh baskets have been deployed in arduous and remote locations creating simple perimeter walls to complex city-like fortification, defending personnel, equipment and critical assets of the US Army, UK MOD, USMC, USAF and NATO.
Hesco earth-filled defensive barriers have been used around the world to create barriers for perimeter protection, construct temporary accommodation, and provide high level security control.
Nowadays the terrorrist attackers, suicide bombers and insurgents engaged in a growing number, continue guerrilla warfare and use artillery, missile equipment, improvised explosive devices, therfore it became necessary to review the Force Protection and to developed new procedures, methods.
Specification:
| Material: | Hot-dipped galvanized steel wire or zinc-aluminum alloy steel wires. |
| Wire diameter: | 4 mm or 5 mm. |
| Mesh size: | 50 × 50 mm, 75 × 75 mm, 76.2 × 76.2 mm, 50 × 100 mm, 100 × 100 mm, etc |
| Geotextile: | 320g, 400g heavy duty non-woven polypropylene |
| Geotextile color: | White, beige, Military Green and other customized colors. |
| Model | Height (M) | Width(M) | Length(M) | No. of cells |
| MIL 1 | 1.37 | 1.06 | 10 | 5+4=9cells |
| MIL 2 | 0.61 | 0.61 | 1.21 | 2cells |
| MIL 3 | 1.0 | 1.0 | 10 | 5+5=10cells |
| MIL 4 | 1.0 | 1.5 | 10 | 5+5=10cells |
| MIL 5 | 0.61 | 0.61 | 3.055 | 5cells |
| MIL 6 | 1.68 | 0.61 | 3.05 | 5cells |
| MIL 7 | 2.21 | 2.13 | 27.74 | 5+4+4=13cells |
| MIL 8 | 1.37 | 1.22 | 10 | 4+5=9cells |
| MIL 9 | 1.0 | 0.76 | 9.14 | 6+6=12cells |
| MIL 10 | 2.13 | 1.52 | 30.5 | 5+5+5+5=20cells |
| MIL1.9 | 2.74 | 1.06 | 3.3 | 6cells |
| EPW1 | 2.1 | 1.06 | 33M | ....... |
Hesco security barriers are engineered to provide a rapidly deployed high-level security fence for the protection of critical infrastructure and assets.
Combining the central concept of the Concertainer system, these fences are ground-mounted and proven to withstand vehicle borne attacks.
Each model is ground mounted, can be built on undulating or sloping ground and available in heights up to 5m (16in), creating a formidable barrier.
Product Features
- All mil units are lined with a non-woven, uv-resistant geotextile with a five-year field life they can cope with harsh environments. each unit is available in beige (as default) or green standard colors.
- The units are available in a range of heights and widths to provide protection against various threats including vehicles.
- The geotextile-lined barriers are available in a recoverable format so you can quickly release the fill simply be removing the pin.
- Units can be transported in containers or flat-bed vehicles for a quick clean up.
