270g Zinc Coated Coastal Protection Woven Gabion Baskets Hexagonal Hole
Price:
USD 1.12-1.6 per sqm
MOQ:
2000 sqm
Delivery Time:
7-10days
Brand:
ORIENTLAND
Product Description
270g Zinc Coated Coastal Protection Woven Gabion Mesh
Products Description:
Galvanized gabion is the most widely used type gabions. It is made of galvanized steel wire with different zinc coating, according to different zinc coating weight, the galvanized gabion can be divided into normal hot dipped galvanized and high zinc coated gabion.
- Normal hot dipped galvanized gabion. It has thin zinc coating, which is no higher than 90 g/m2, the zinc coating has outstanding corrosion and rust resistance performance to resist the environment element. The most important characteristic of electric galvanized gabion is economical. It is suitable for the customers which has tight budget and want the good quality products.
- Hot dipped galvanized gabion. Hot dipped galvanized gabion has the zinc coating weight higher than 200 g/m2, and different wire diameter may be different. The thick zinc coating make the hot dipped gabion resist the harsh environments, even in the chemical, salty, rainy and other corrosive environments. Hot dipped galvanized gabion is widely used in the coastal, riverway controlling and other heavy duty and corrosive applications. Though the cost is higher than the electric galvanized gabion, but the longer service life and good appearance and performance are worthy for the cost.
Gabion Technical Parameter:
| Wire dia.(mm) | 2.0 | 2.2 | 2.4 | 2.7 | 3.0 | 3.4 | 3.9 |
| Tolerance(mm) | 0.05 | 0.06 | 0.06 | 0.06 | 0.07 | 0.07 | 0.07 |
| Min. Zinc coating(g/m2) | 215 | 230 | 230 | 245 | 255 | 265 | 275 |

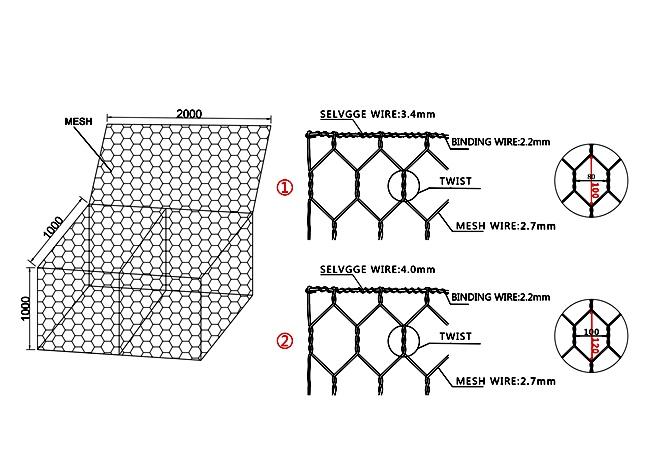

Gabion specifications:
| Mesh Size | Tolerance | Diameter | Length | Width | Height | Diaphragms |
|
80×100mm 100×120mm |
+16%/-4% | 2.0-3.0mm | 1.5 | 1 | 0.5 | 0 |
| 1.5 | 1 | 1 | 0 | |||
| 2 | 1 | 0.5 | 0/1 | |||
| 2 | 1 | 1 | 0/1 | |||
| 3 | 1 | 0.5 | 0/2 | |||
| 3 | 1 | 1 | 0/2 | |||
| 4 | 1 | 1 | 0/3 |

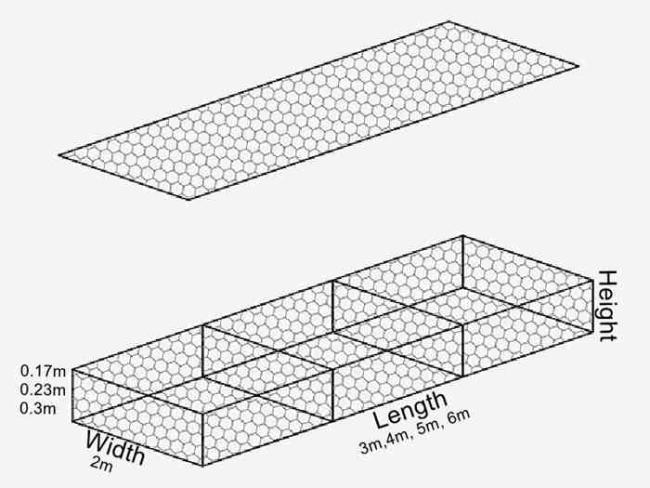

River Standard Sizes
Length(m) x Width(m) x Height(m) = Volume (m³) or Length x Width = Plan Area (m2)
|
2x1x0.3 (0.6m³)
|
6x2x0.17 (2.04m³) |
| 3x1x0.3 (0.9m³) | 6x2x0.23 (2.76m³) |
| 4x1x0.3 (1.2m³) | 6x2x0.30 (3.60m³) |
Gabion box application:
- Retaining wall structures
- River and canal training works
- Erosion and scour protection; roadway protection; bridge protection
- Hydraulic structures, dams and culverts
- Coastal defence and protection works
- Wall Cladding
- Rockfall and soil erosion protection
Features of galvanized gabion
- Corrosion and rust resistance. Hot dipped galvanized and various other materials can protect gabions from corrosion and rust.
- Acid and alkali resistance. Outstanding chemical stability make the gabion to be used in the harsh environments.
- High tensile strength. High quality material supplies high tensile strength to defend the high impact from external force.
- Wide range of applications. The galvanized gabions can be used in protective and decorative applications in different fields.
- Economical. Different materials and structure to satisfy different requirements for the budget and performance.
- Ecological. It can maintain the healthily growth of plants and make the gabions be blended with surrounding environments.
