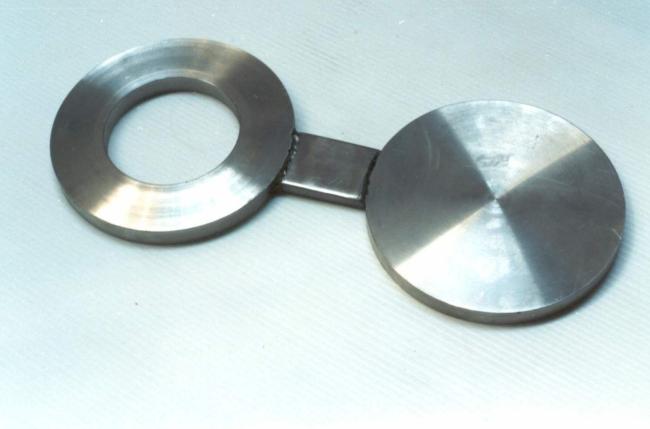

Duplex 2205 Spectacle Blind Flange , Alloy Steel Flanges ASME B 16.48 Paddle
Alloy Steel Flanges Duplex 2205 Blind Spacer Ring Spectacle Flange ASME B 16.48 Paddle
1. SPECTACLE BLIND TYPES Duplex 2205 Paddle blind Spacer ring spectacle blind
There are three types of spectacle blinds:
- Flat face spectacle blind (FF): similar to a flat face flange, the surface of the disc is flat (suited for flat face gaskets, for low-pressure applications).
- Raised face spectacle blind (RF): likewise raised face flanges, there is an additional thickness on the surface of the disc.
- This type fits semi-metallic gaskets, as the spiral wound type.
- Ring joint face spectacle blind (RTJ): a groove is inscribed on the surface of the disc. This type is used in conjunction with ring joint gaskets.

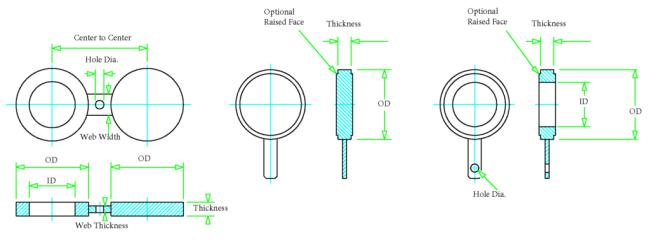

2. Class 150 Spectacle blind dimensions in mm
| Spectacle Blind NPS Dimensions Class 150 | A | B | C | t | W |
| 1/2 | 45 | 16 | 60 | 3 | 38 |
| 3/4 | 54 | 21 | 70 | 3 | 38 |
| 1 | 64 | 27 | 80 | 3 | 38 |
| 1¼ | 73 | 42 | 90 | 6.4 | 38 |
| 1½ | 83 | 48 | 100 | 6.4 | 38 |
| 2 | 102 | 61 | 120 | 6.4 | 51 |
| 2½ | 107 | 73 | 140 | 6.4 | 51 |
| 3 | 133 | 89 | 150 | 6.4 | 64 |
| 3½ | 159 | 102 | 175 | 9.7 | 64 |
| 4 | 172 | 114 | 190 | 9.7 | 64 |
| 5 | 194 | 141 | 215 | 9.7 | 76 |
| 6 | 219 | 168 | 240 | 12.7 | 76 |
| 8 | 276 | 219 | 300 | 12.7 | 76 |
| 10 | 337 | 273 | 360 | 15.7 | 102 |
| 12 | 406 | 324 | 430 | 19.1 | 102 |
| 14 | 448 | 356 | 475 | 19.1 | 108 |
| 16 | 511 | 406 | 460 | 22.4 | 108 |
| 18 | 546 | 457 | 580 | 25.4 | 114 |
| 20 | 603 | 508 | 635 | 28.4 | 121 |
| 24 | 714 | 610 | 750 | 31.8 | 140 |
Why Choose Us
1. One-Stop Service,One Single Source.
2. No MOQ.
3. Best quality,competitive price
4. Fast Reply.
5. On-Time Delivery
6. Professional sales and technical team .
Product Attribute
| Place of Origin | China | Brand Name | BOYUE |
| Standard | ANSI, ISO, ASME, DIN, ASTM | Type | Spectacle Blind Flange |
| ModelNumber | Duplex 2205 | Thickness | #150,#300,#600,.#900,#1500,#2500 |
| Packing | Ply-Wood Cases | Payment | 30%TT+70% Balance |
Supply Ability:40000Pieces / per Month
Packaging & Delivery
Packaging Details:Generally plywooden case or following customer's requirement.
Port:Shanghai/Tianjin
Commerce Clause
| Minimum Order Quantity: | 1pcs |
| Price: | Depending on quantity |
| Payment Terms: | T/T or Western Union or LC |
| Supply Ability: | 40000pcs per month |
| Delivery Time: | 10-100 days depending on quantity |
| Packaging Details: | PLY-WOODEN CASE OR PALLET |
FAQ
Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)
Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.
Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.
Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.
Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
