ASME B16 36 SO WN Orifice Flange Power Generation Alloy 31 Wear Resistant
ASME B16.36 ASTM B564 UNS N08031WN SO Orifice Flange Power Generation Alloy 31
Product Attribute
| Place of Origin | China | Brand Name | BOYUE |
| Standard | ANSI, ISO, ASME, DIN, ASTM | Type | Orifice Flange |
| ModelNumber | Alloy 31 | Thickness | #150,#300,#600,.#900,#1500,#2500 |
| Packing | Ply-Wood Cases | Payment | 30%TT+70% Balance |
Supply Ability:40000Pieces / per Month
Packaging & Delivery
Packaging Details:Generally plywooden case or following customer's requirement.
Port:Shanghai/Tianjin
Commerce Clause
| Minimum Order Quantity: | 1pcs |
| Price: | Depending on quantity |
| Payment Terms: | T/T or Western Union or LC |
| Supply Ability: | 40000pcs per month |
| Delivery Time: | 10-100 days depending on quantity |
| Packaging Details: | PLY-WOODEN CASE OR PALLET |

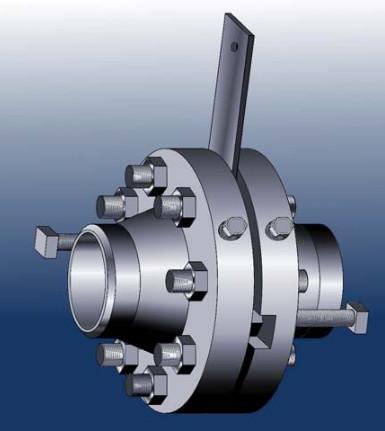

1. Orifice Flanges are used with orifice meters for the purpose of measuring the flow rate of either liquids or gases in the respective pipeline. They are, for all intensive purposes, the same as weld neck and slip-on flanges with extra machining. Orifice flanges may be provided in one of three types of flanges: Welding Neck, Slip-On and Threaded.
2. Specification of Orifice Flange HT can Provide
|
|||||||||||||||||||||
|
3. ASME B16.36 covers Dimensions and dimensional tolerances from orifice flanges (similar to those covered in ASME B16.5) that have orifice pressure differential connections. Coverage is limited to the following flanges:
.Welding Neck Classes 300, 400, 600, 900, 1500, 2500
.Slip On Class 300
.Threaded Class 300

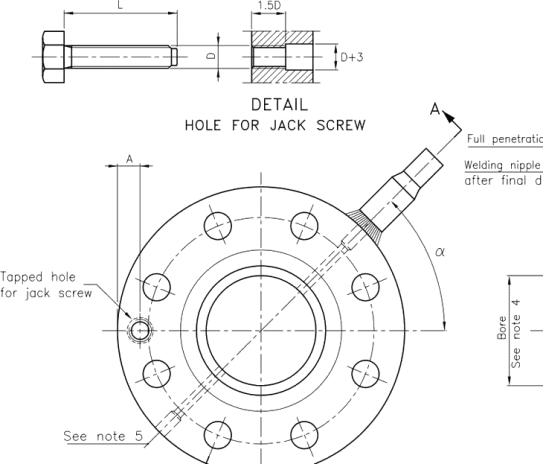

4. Drawing of Orifice Flanges
5. More Information about Alloy 31
Chemical Composition
| C | Si | Mn | P | S | Cr | Cu | Mo | N | Ni | Fe | ||
| Alloy 31 | Min % | 26,0 | 1,0 | 6,0 | 0,15 | 30,0 | balance | |||||
| Max % | 0,015 | 0,3 | 2,0 | 0,20 | 0,010 | 28,0 | 1,4 | 7,0 | 0,25 | 32,0 | balance | |
| ASTM B626 (S08031) (alloy 31) | ||||||||||||
| 1.4562 | Min % | 26,00 | 1,00 | 6,00 | 0,15 | 30,00 | ||||||
| Max % | 0,015 | 0,30 | 2,00 | 0,02 | 0,10 | 28,00 | 1,40 | 7,00 | 0,25 | 32,00 | ||
| (Key to steel 2010) | ||||||||||||
| N 08031 | Min % | 26,0 | 1,0 | 6,0 | 0,15 | 30,0 | balance | |||||
| Max % | 0,015 | 0,3 | 2,00 | 0,,20 | 0,010 | 28,0 | 1,4 | 7,0 | 0,25 | 32,0 | balance | |
| ASTM B 626 (N08031) | ||||||||||||
Physical properties
| Property | Value |
| Density: kg/dm3 | 8,0 |
| Hardness: HB | <220 |
| Permeability in 68°F | 1,001 |
Why Choose Us
1. One-Stop Service,One Single Source.
2. No MOQ.
3. Best quality,competitive price
4. Fast Reply.
5. On-Time Delivery
6. Professional sales and technical team .
FAQ
Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)
Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.
Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.
Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.
Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
