1. Specifications :
| Standards | : | ASTM, ASME |
| Designation | : | B 564, SB 564 |
| Standards | Incoloy 800HT |
| UNS | N08810 |
| Werkstoff Nr. | 1.4958 |
2. ASTM B564 Incoloy 800HT Flanges Chemical Composition
| Incoloy | 800 | 800H | 800HT |
| Ni | 30-35 | 30-35 | 30-35 |
| Fe | 39.5 min | 39.5 min | 39.5 min |
| Cr | 19-23 | 19-23 | 19-23 |
| Cu | 0.75 max | 0.75 max | 0.75 max |
| Ti | 0.15-0.60 | 0.15-0.60 | 0.25-0.60 |
| Al | 0.15-0.60 | 0.15-0.60 | 0.85-1.20 |
| C | 0.1 max | 0.05-0.1 | 0.06-0.1 |
| Mn | 1.5 max | 1.5 max | 1.5 max |
| S | 0.015 max | 0.015 max | 0.015 max |
| Si | 1.0 max | 1.0 max | 1.0 max |
3. Mechanical & Physical Properties
| Density | 7.94 g/cm3 |
| Melting Point | 1385 °C (2525 °F) |
| Tensile Strength | Psi – 75,000 , MPa –520 |
| Yield Strength (0.2%Offset) | Psi – 30,000 , MPa – 205 |
| Elongation | 30 % |
4. Types Of ASTM B564 Incoloy 800HT Flanges
| • | ASTM B564 Incoloy 800HT Forged Flanges | • | ASTM B564 Incoloy 800HT High Hub Blinds Flanges |
| • | ASTM B564 Incoloy 800HT Blind Flanges | • | ASTM B564 Incoloy 800HT Spectacle Blinds Flanges |
| • | ASTM B564 Incoloy 800HT Reducing Flanges | • | ASTM B564 Incoloy 800HT Loose Flanges |
| • | ASTM B564 Incoloy 800HT Orifice Flanges | • | ASTM B564 Incoloy 800HT RTJ Flanges |
| • | ASTM B564 Incoloy 800HT Socket Weld Flanges | • | ASTM B564 Incoloy 800HT Screwed Flanges |
| • | ASTM B564 Incoloy 800HT Slip On Flanges | • | ASTM B564 Incoloy 800HT Weld Neck Flanges |
| • | ASTM B564 Incoloy 800HT Flat Flanges | • | ASTM B564 Incoloy 800HT Flange Facing Type & Finish |
| • | ASTM B564 Incoloy 800HT Lapped Joint Flanges | • | ASTM B564 Incoloy 800HT SORF Flanges |
| • | ASTM B564 Incoloy 800HT SWRF Flanges | • | ASTM B564 Incoloy 800HT Groove & Tongue Flanges |
| • | ASTM B564 Incoloy 800HT Square Flanges | • | ASTM B564 Incoloy 800HT Long Neck Weld Flanges |
| • | ASTM B564 Incoloy 800HT Threaded Flanges | • | ASTM B564 Incoloy 800HT Spades Ring Spacers Flanges |
| • | ASTM B564 Incoloy 800HT Weld Neck Flanges Series A or B | • | ASTM B564 Incoloy 800HT Ring Type Joint Flanges |
| • | ASTM B564 Incoloy 800HT WNRF Flanges | • | ASTM B564 Incoloy 800HT Weldo / Nipo Flanges |
| • | ASTM B564 Incoloy 800HT Expander Flanges |
5. Weld Neck Flange Dimensions & Approximate Masses
|

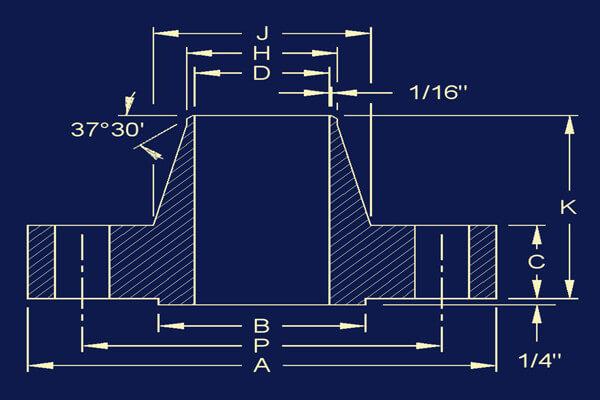

Series A ANSI Class 150, B16.47 Series A (in) ANSI Class 300, B16.47 Series A (in) ANSI Class 400, B16.47 Series A (in) ANSI Class 600, B16.47 Series A (in) |
Dimensions Weld Neck & Blind flanges ASME B16.47 Series A
Pressure Class
150 | 300 | 400 | 600 | 900
| Pressure Class 150 / 26 inch | |||||
| OD | D | B (WNF) |
B (BLF) |
H | A |
| 660.4 | 870 | 66.7 68.3 |
66.7 68.3 |
119 120.6 |
676 |
| G | K | L | No of Bolts |
Stud Bolt Dia x L |
|
| 749 | 806.4 | 34.9 | 24 | 1.1/4 | 222 |
26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 52 | 54 | 56 | 58 | 60

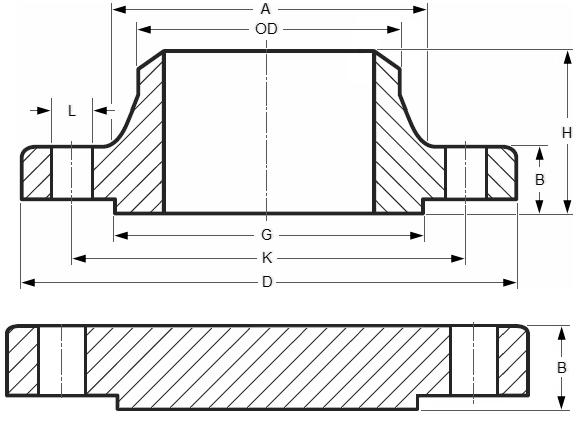

Indications:
OD = Diameter at Weld Bevel
D = Overall Diameter of Flange
B (WNF) = Minimum Thickness of Welding Neck Flange
B (BLF) = Minimum Thickness of Blind Flange
H = Length thru Hub
A = Diameter at Base of Hub
G = Outside Diameter of Raised Face
K = Bolt Circle Diameter
L = Diameter of Bolt Holes
