Hastelloy B-2 Socket Weld Pipe Nickel Alloy Flanges ASTM B564 UNS N10665 150#-2500#
Hastelloy B-2 Socket Weld Pipe Nickel Alloy Flanges ASTM B564 UNS N10665 150#-2500#
1. ASTM B564 B2 Hastelloy Flanges Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. |
| Hastelloy B2 | N10665 | 2.4617 |
Hastelloy UNS N10665 Pipe Flanges Chemical Composition
| Hastelloy B2 | Ni | C | Mo | Mn | Si | Fe | P | S | Co | Cr |
| Balance | .02 max | 26.0-30.0 | 1.0 max | .10 max | 2.0 max | .040 max | .030 max | 1.0 max | 1.0 max |
Hastelloy Alloy WERKSTOFF NR. 2.4617 ASME, DIN, BS, EN Flanges Mechanical Properties
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 9.2 g/cm3 | 1370 °C (2500 °F) | Psi - 51,000, MPa - 350 | Psi -1,10,000, MPa -760 | 40 % |
2. More information about Hastelloy B2 flange:
| Name | Hastelloy B2 Flange |
| Grade | Hastelloy |
| Featuers | Hastelloy B-2 has outstanding resistance to hydrochloric acid at all concentrations and temperatures. It also has significant resistance to reducing environments like sulfuric, phosphoric, acetic acids and other nonoxidizing media. Hastelloy B-2 has excellent resistance to pitting corrosion, stress corrosion cracking, and knife line and weld heat-affected zone attack. Hastelloy B-2 has poor resistance to oxidizing environments, therefore, it should not be used where ferric or cupric salts are present as these salts may cause rapid corrosion failure. |
| Application | Chemical processing involving acetic acid, acetic anhydride and complex acid mixture; pickling operations; cellophane manufacture; chlorination systems; electro-galvanizing rolls, expansion bellows; flue gas scrubber systems; geothermal wells; HF furnace scrubbers; incineration scrubbers; nuclear fuel reprocessing; pesticide production; phosphoric acid production; heat exchangers; selective leaching systems; sulfur dioxide cooling towers; sulphonation systems; and weld overlay. |
| Note | Hastelloy is a registered trademark of Haynes International, Inc. |
3. Hastelloy B2 flange dimension:
| Flange Facing | Flat face FF, raised face RF, Ring type joint RTJ |
| Design: | ASMI B16.5, ASME B16.47 Series A ( MSS SP 44), Series B (API 605) |
| Working Pressure: | Class 150, 300,400, 600, 900, 1500, 2500. |
| Size: | 1/2’-24’ |
| Alloy Material to make Bar | Ni-Cr-Fe alloy: alloy 020 Ni-Cr alloy: alloy 718, X-750, 80A. Ni-Cr-Mo alloy: alloy 625, 686, C-22, C-2000, G-30, G-35. Ni-Fe-Cr alloy: alloy 925. Ni-Mo alloy: alloy B-2, B-3. Ni-Mo-Cr alloy: alloy C-276. |
| Industry served: |
Oil and gas, Chemical and petrochemical, Power generation, Marine, Aerospace, Defence. |

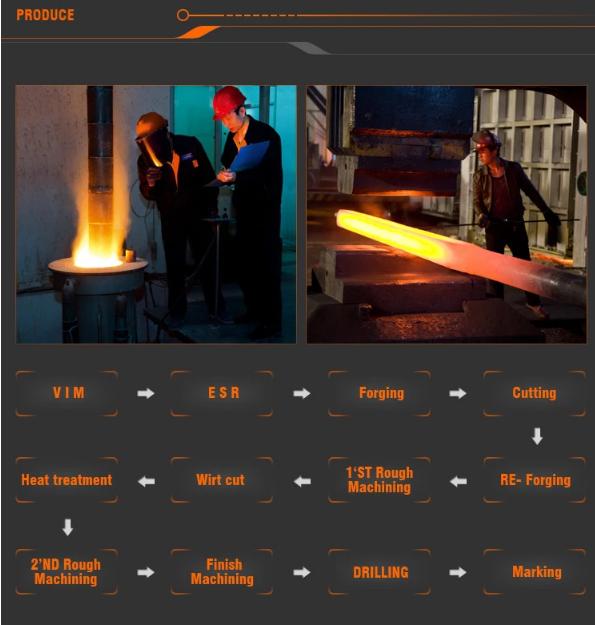

4. Hastelloy B2 flange producing chart:
