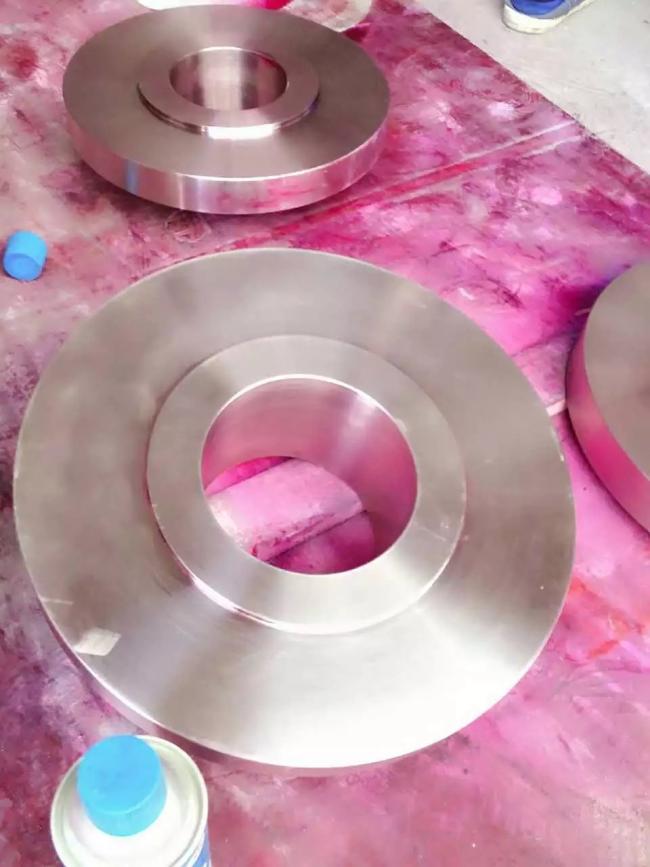

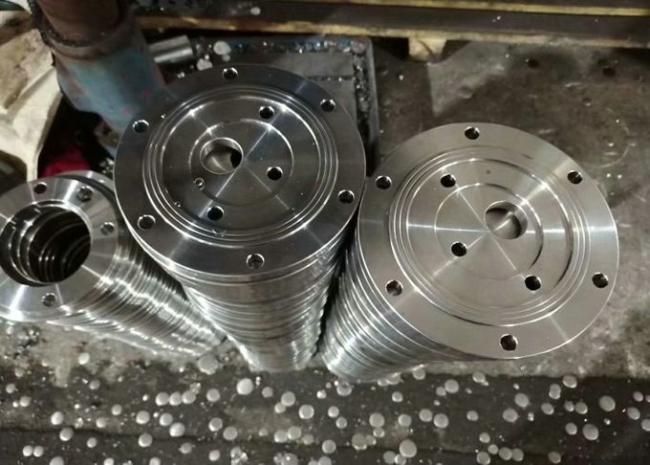

UNS N06600 Forged Socket Weld Pipe Flanges Inconel 600 NS333 DIN 2.4816 ASTM B564
UNS N06600 Forged Inconel 600 Socket Weld Pipe Flanges NS333 DIN 2.4816 ASTM B564
1. Inconel 600 Flanges, Inconel 600 Pipe Flanges, Alloy 600 Pipe Flanges, Inconel 600 Pipe Flanges, Inconel 600 Blind Flanges, Inconel 600 Weld Neck Flanges, Inconel 600 Threaded Flanges, 600 Ring Type Joint Flanges, Inconel 600 Spectacle Flanges, Inconel 600 Orifice Flanges
2. Inconel 600 Flanges Size & Specification
| Size : ½” to 36″ |
| Specifications : ASTM B 564 / ASME SB 564 |
| Standards : ASTM, ASME Flanges, ANSI Flanges, DIN Flanges, EN Flanges, BS Flanges etc. |
| Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Pressure Ratings : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
3. ASTM B564 Inconel 600 Flanges Chemical Composition
| Grade | C | Mn | Si | Cu | S | Ni | Cr | Fe |
| Inconel 600 | 0.15 max | 1.0 max | 0.5 max | 0.5 max | 0.015 max | 72.0 min | 14.0 – 17.0 | 6.0 – 10.0 |
4.ASTM B564 Inconel 600 Flanges mechanical properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
5.Testings (Destructive, Non Destructive):
| *Positive Material Identification - PMI Testing | *Hydrostatic Test |
| *Chemical Analysis - Spectro Analysis | *Hydrogen-Induced Cracking (HIC) Test, NACE TM0284 |
| *Mechanical Testing Such as Tensile, Elongation | *Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177 |
| *Micro Test | *Radiography Test |
| *Macro Test | *Dye Penetrant Test (DP Test) |
| *Hardness Test | *Ultra Sonic Test (UT) |
| *Pitting Resistance Test | *Eddy Current Testing |
| *Intergranular Corrosion (IGC) Test | *Impact Test |
| *Flaring Test | *Bend Test |
| *Flattening Test |
Why Choose Us
1.One-Stop Service,One Single Source.
2.No MOQ.
3.Best quality,competitive price
4.Fast Reply.
5.On-Time Delivery
6.Professional sales and technical team .
FAQ
Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)
Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.
Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.
Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.
Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
