ASME B16.5 Slip On Pipe Flanges , 316L Duplex SS Slip On Flange Size 1/2" - 60"
Forged ASME B16.5 Slip On Pipe Flanges 316L Duplex Stainless Steel 1/2" - 60" Size
1. Duplex stainless steel 316L SO definition
Slip On Flanges are preferred by some contractors, over the Weld-neck, because of the lower initial cost. However, this may be offset by the added cost of the two fillet welds required for proper installation. The strength of the slip-on flange is ample for it’s rating, but its life under fatigue conditions is considered to be only one-third that of the weld-neck flange.
The slip on flange may be attached to the end of a piece of pipe or to one or more ends of a pipe fitting. The slip-on flange is positioned so the inserted end of the pipe or fitting is set back or short of the flange face by the thickness of the pipe wall plus 1/8 of an inch. This allows for a fillet weld inside the SO flange equal to the thickness of the pipe wall without doing any damage to the flange face. The back or outside of the flange is also welded with a fillet weld.
A variation of the Slip On flange also exists. This is the Slip-On Reducing Flange. This is simply a larger (say a 14″) Slip-On flange blank that, instead of the Center (pipe) hole being cut out (or drilled out) for 14″ pipe it is cut out for a 6″ (or some other size) pipe. The SO Reducing flange is basically used for reducing the line size where space limitations will not allow the length of a weld neck flange and reducer combination. The use of the Slip-On Reducing Flange should only be used where the flow direction is from the smaller size into the larger size.
It is welded both inside and out to provide suffcient strength and prevent leakage.
Slip-on flanges are all bored slightly larger than the O.D. of the pipe. They are preferred over welding neck flanges bu many users due to their lower intial cost, but final intallation cost is probably not much less than that of the welding neck flange because of the additional welding involved.
2. 316L SO flange&Stud bolt ASME B16.5 dimension
NPS 1/2 - I.D. 22.3
| CL | 150 | 300 | 600 | 900 | 1500 | 2500 |
| DIA A |
30 | 38 | 38 | 38 | 38 | ... |
| DIA D |
90 | 95 | 95 | 120 | 120 | ... |
| THK B |
9.6 | 12.7 | 14.3 | 22.3 | 22.3 | ... |
| 11.2 | 14.3 | 20.7 | 28.7 | 28.7 | ... | |
| DIA G |
35.1 | 35.1 | 35.1 | 35.1 | 35.1 | ... |
| DIA K |
60.3 | 66.7 | 66.7 | 82.6 | 82.6 | ... |
| H | 14 | 21 | 22 | 32 | 32 | ... |
| 15.6 | 22.6 | 28.4 | 38.4 | 38.4 | ... | |
| NO. L |
4 | 4 | 4 | 4 | 4 | ... |
| DIA L |
15.9 | 15.9 | 15.9 | 22.2 | 22.2 | ... |
| Stud Bolts Diameter x Length | ||||||
| DIA (in) |
1/2 | 1/2 | 1/2 | 3/4 | 3/4 | ... |
| Len mm |
55 | 65 | 75 | 110 | 110 | ... |
| Other Diameters | |||||||
| NPS | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 | 2.1/2 |
| 3 | 3.1/2 | 4 | 6 | 8 | 10 | 12 | |
| 14 | 16 | 18 | 20 | 24 | |||
3. Advantages of stainless steel 316L slip on flanges:
- Low cost installation
- Less time needed to spent on ensuring the accuracy of the cut pipe
- They are somewhat easier to align
- The slip-on flanges have low hub because the pipe slips into the flange before welding
- The flange is welded both inside and outside to provide sufficient strength
- They prevent leakage

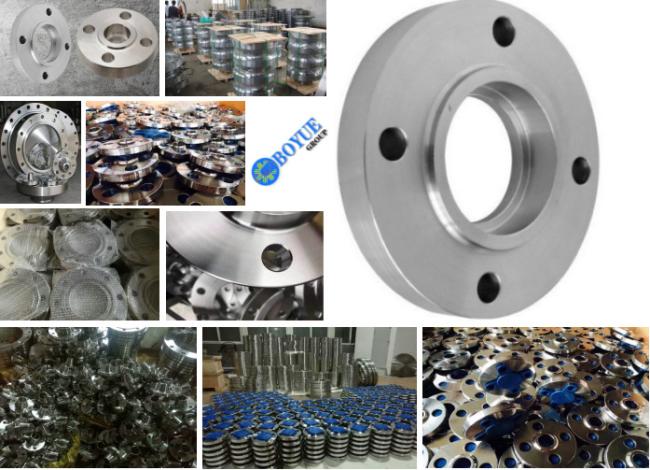

4. Duplex stainless steel 316L SO flange
Product Attribute
| Place of Origin | China | Brand Name | BOYUE |
| Standard | ASME B16.5 | Type | SO Flange |
| ModelNumber | Duplex Stainless Steel | Thickness | Sch40s,Sch80s,sch160 |
| Packing | Ply-Wood Cases | Payment | 30%TT+70% Balance |
Supply Ability:30000Pieces / per Month
Packaging & Delivery
Packaging Details:Generally ply wooden case or following customer's requirement.
Port:Shanghai/Tianjin
Commerce Clause
| Price: | Depending on quantity |
| Minimum Order Quantity | 1 PCS |
| Payment Terms: | T/T or Western Union or LC |
| Supply Ability: | 3,0000pcs per month |
| Delivery Time: | 10-100 days depending on quantity |
| Packaging Details: | PLY-WOODEN CASE OR PALLET |
Why Choose Us
1.One-Stop Service,One Single Source.
2.No MOQ.
3.Best quality,competitive price
4.Fast Reply.
5.On-Time Delivery
6.Professional sales and technical team .
FAQ
Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)
Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.
Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.
Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.
Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
