Seamless Alloy Steel Pipe Welded Cold Hot Rolled ASME C2000 UNS N06200
ASME C2000 UNS N06200 Hastelloy Pipe Seamless Welded Cold Hot Rolled Pipe Tube
1. Alloy C2000 pipe tube material introduction
Alloy C2000® has the same chemistry as Alloy 59, but with a Copper addition of 1.60%. This enhances the alloys corrosion resistance to reducing environments, but at the cost of reduced thermal stability and weldability.
Chemical Analysis
Hastelloy C2000 Alloy Application:-
1. Chemical process equipment applications
2. The petrochemical and power generation industry has recognized Hastelloy C2000 fasteners for its corrosion resistant properties for decades
Chemical Composition of Hastelloy C2000 (UNS N06200)
| C | Mn | Si | P | S | Cr | Co | Mo | V | Fe | Al | Cu | Ni |
| 0.010 max | 0.50 max | 0.08 max | 0.025 max | 0.010 max | 22.0 - 24.0 | 2.0 max | 15.0 - 17.0 | 0.50 max | 3.0 max | 0.50 max | 1.30 - 1.90 | Balance |
Specification of Hastelloy C2000 (UNS N06200)
| Sheet/Plate | Round Bar/Wire | Flanges |
| ASTM/ASME SB-575, ASTM/ASME SB-333 | ASTM B 637 & ASME SB-637 | ASME SB-564 & ASTM B 564 |
2. Hastelloy C2000 pipe specification
| Product Name | Hastelloy C2000 34*4mm seamless alloy Pipe |
| Standard | SUS ANSI ASTM EN A249 DIN Austenitic ASME AISI JIS A789 |
| Out Diameter | 6-273mm |
| Thickness | 1-30mm |
| Length | 1-8m or as customers required |
| Grdde |
Hastelloy: Hastelloy B/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g; Haynes: Haynes 230/556/188; Inconel:Inconel 600/601/602CA/617/625/713/718/738/X-750,Carpenter 20; Incoloy: Incoloy 800/800H/800HT/825/925/926; Monel: Monel 400/K500/R405; Nitronic: Nitronic 40/50/60; Nimonic: Nimonic 75/80A/90/A263 ; |
| shape | Round,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square,Bar,Pipe,Sheet |
| Application | High temperature components such as turbine blades, guide vanes, turbine disks, high pressure compressor disks,machine manufacturing and combustion chambers used in the manufacture of aviation, naval |
3. Hastelloy C2000 pipes application
- chemical field and petrifaction field, such as the element of chloride organic and catalyze system
- high temperature environment, impure inorganic acid and organic acid(such as formic acid and acetic acid), sea-water corrosion environment
- The digester and bleacher in the use of paper pulp and paper making industry.
- Absorption tower, re-heater and fan in the FGD system.
- The equipment and parts in the use of acidic gas environments.
- Acetic acid and anhydride reaction generator
- Sulfur acid cooling
- MDI
- Manufacture and processing of impure phosphoric acid.

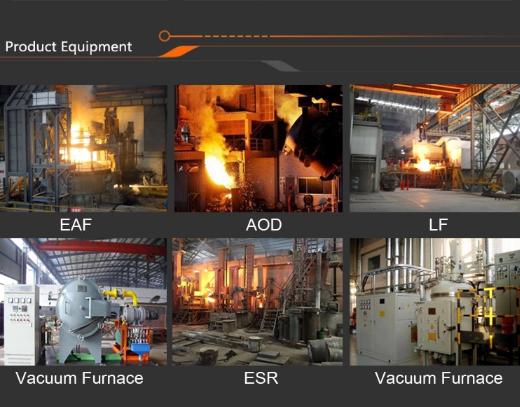

4. Hastelloy C2000 pipes producing equipment
| Place of Origin | China | Brand Name | BOYUE |
| Standard | ANSI, ISO, ASME, DIN, ASTM | Type |
Seamless |
| ModelNumber | Alloy Steel Pipe | Thickness | SCH 5-SCH XXS |
| Packing | Depending on customer | Payment | 30%TT+70% Balance |
Supply Ability:40000Pieces / per Month
Packaging & Delivery
Packaging Details:Generally plywooden case or following customer's requirement.
Port:Shanghai/Tianjin
Commerce Clause
| Minimum Order Quantity: | 1pcs |
| Price: | Depending on quantity |
| Payment Terms: | T/T or Western Union or LC |
| Supply Ability: | 40000 ton per month |
| Delivery Time: | 10-100 days depending on quantity |
| Packaging Details: | Depending on customer |
Why Choose Us
1. One-Stop Service,One Single Source.
2. No MOQ.
3. Best quality,competitive price
4. Fast Reply.
5. On-Time Delivery
6. Professional sales and technical team .
FAQ
Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)
Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.
Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.
Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.
Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
