Socket Weld Pipe Flanges RTJ 4" #150 #300 #600 Forged Flange 32750(2507) Duplex Steel Stainless Steel F53 F51 F60
Socket Weld Pipe Flanges RTJ 4" #150 #300 Forged Flange 32750(2507) Duplex Steel Stainless Steel F53

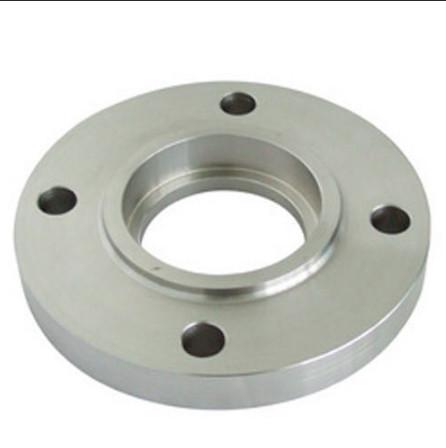

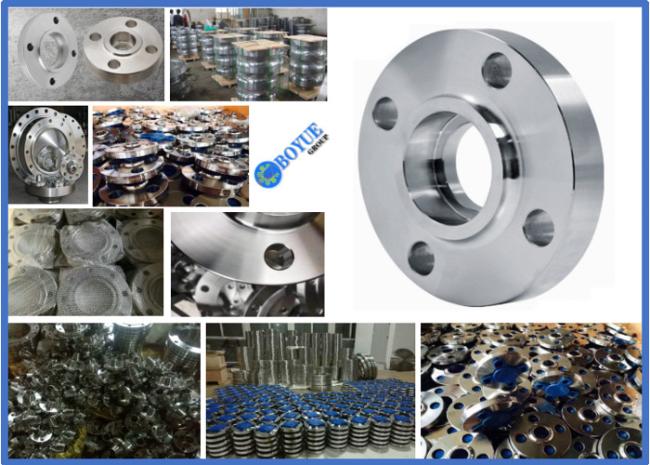

Socket Weld Flanges
Socket Weld Flanges (SW Flanges) are similar to slip-on flanges in outline, but the bore is counter-bored to accept pipe. The diameter of the remaining bore is the same as the inside diameter of the pipe. The positive of this is that is creates a smooth bore with the proper welding and grinding. The negative of this type of flange is that it can be more expensive than a slip-on due to more intricate machining, and they can be less readily available than slip-ons due to the fact that the bottom half of the inside diameter must be made to the same schedule as the pipe that is being used. (you must specify the schedule needed) These socket weld flanges were initially developed for use on smaller sizes of pipe at higher pressure ratings.
Socket Weld flanges are typically provided with a raised face, flat face, or RTJ facing. When a raised face is necessary for socket weld pipe flanges, the standard height is 1/16 inch for socket weld pipe flanges less than 400#. For socket weld pipe flanges of 400# and up, the standard socket weld pipe flange raised face height is 1/4 inch.
Class 300 Socket Neck Flange Dimensions
| Size in Inch | Size in mm | Outer Dia. | Flange Thick. | Hub OD | Flange Length | RF Dia. | RF Height | Socket Depth | PCD | Socket Bore | No of Bolts | Bolt Size UNC | Machine Bolt Length | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | F | G | H | J | |||||||||
| 1/2 | 15 | 95 | 12.7 | 38 | 21 | 34.9 | 2 | 10 | 66.7 | 22.2 | 4 | 1/2 | 55 | 65 | 5/8 | M14 | 1.2 |
| 3/4 | 20 | 115 | 14.3 | 48 | 24 | 42.9 | 2 | 11 | 82.6 | 27.7 | 4 | 5/8 | 65 | 75 | 3/4 | M16 | 1.4 |
| 1 | 25 | 125 | 15.9 | 54 | 25 | 50.8 | 2 | 13 | 88.9 | 34.5 | 4 | 5/8 | 65 | 75 | 3/4 | M16 | 1.4 |
| 1 1/4 | 32 | 135 | 17.5 | 64 | 25 | 63.5 | 2 | 14 | 98.4 | 43.2 | 4 | 5/8 | 70 | 85 | 3/4 | M16 | 1.8 |
| 1 1/2 | 40 | 155 | 19.1 | 70 | 29 | 73 | 2 | 16 | 114.3 | 49.5 | 4 | 3/4 | 75 | 90 | 7/8 | M20 | 2.7 |
| 2 | 50 | 165 | 20.7 | 84 | 32 | 92.1 | 2 | 17 | 127 | 61.9 | 8 | 5/8 | 75 | 90 | 3/4 | M16 | 3.2 |
| 2 1/2 | 65 | 190 | 23.9 | 100 | 37 | 105 | 2 | 19 | 149.2 | 74.6 | 8 | 3/4 | 85 | 100 | 7/8 | M20 | 4.6 |
| 3 | 80 | 210 | 27 | 117 | 41 | 127 | 2 | 21 | 168.3 | 90.7 | 8 | 3/4 | 90 | 110 | 7/8 | M20 | 5.9 |
A. Stainless:
304, 304L, 304H, 310S, 316L, 317, 317L
B. Duplex:
2205, S32750, 904L 254SMO, S31050
C. Special:
Alloy20, Nickel200, Monel400, Alloy625, Incoloy800, Alloy800H, AlloyC-276. Alloy-6XN.
D. Carbon:
ASTM A860 WPHY42. WPHY52, WPHY60, WPHY65, WPHY70
ASTM 694 F42, F46, F50, F52, F60, F65, F70
ASTM A106 GR.B, ASTM A234 WPB, ASTM A105
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 15-30 To be negotiated
Place of Origin China Brand Name BOYUE
Standard ANSI, ISO, ASME, DIN, ASTM Type SW/WN/SO/BL/TH Flanges
ModelNumber Steel Flange Thickness #150,#300,#600,.#900,#1500,#2500
Packing Ply-Wood Cases Payment 30%TT+70% Balance
Supply Ability:40000Pieces / per Month
Packaging & Delivery
Packaging Details:Generally plywooden case or following customer's requirement.
Port:Shanghai/Tianjin
Commerce Clause
Minimum Order Quantity: 1pcs
Price: Depending on quantity
Payment Terms: T/T or Western Union or LC
Supply Ability: 40000pcs per month
Delivery Time: 10-100 days depending on quantity
Packaging Details: PLY-WOODEN CASE OR PALLET
Why Choose Us
1. One-Stop Service,One Single Source.
2. No MOQ.
3. Best quality,competitive price
4. Fast Reply.
5. On-Time Delivery
6. Professional sales and technical team .
FAQ
Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)
Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.
Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.
Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.
Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
