Special Groove Design Vacuum Suction Cups MAF For Handling Metal Sheets
Price:
Negotiatable
MOQ:
Negotiatable
Delivery Time:
Depending on the order quantity
Brand:
AMILA
Product Description
Vacuum Suction Cups Special For Metal Plate Flat Suction Cup MAF
1. Introduction and applicaton
- For quick handling of metal sheets (short cycle).
- No dents or deformations when handling metal sheets.
- For use in handling system for stamping lines in the automotive industry.
- The bottom of the suction cup has a special groove structure to prevent the oily metal plate from sliding during handling,ensuring accurate positioning of the workpiece in stamping press.
2. Structure
- Rugged and durable flat suction cup MAF,made of NBR with single sealing lip, special groove design and internal support design;
- Vulcanizing fixed the suction cup and the joint (high strength);
- Suction cup available with various connection types;
- Available in two material hardness values(45 Shore,60Shore);
3. Technology data:
| Type | suction force | Lateral force | Lateral force oily surface | Volume | Min.curve radius |
| [N] | [N] | [N] | [cm3] | [mm] (Convex) | |
| MAF 30 | 38 | 30 | 28 | 1.7 | 40 |
| MAF 40 | 69 | 52 | 50 | 3.8 | 50 |
| MAF 50 | 100 | 80 | 76 | 7 | 65 |
| MAF 60 | 150 | 105 | 85 | 13 | 75 |
| MAF 80 | 272 | 205 | 180 | 36 | 100 |
| MAF 100 | 430 | 310 | 300 | 58 | 135 |

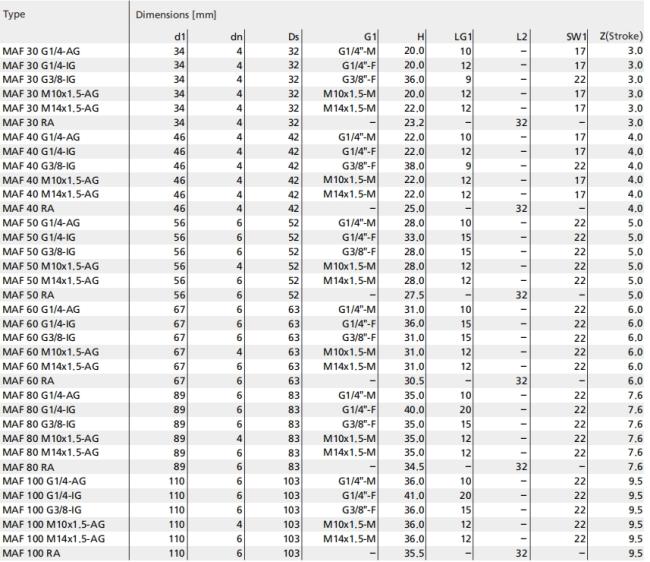

4.Design data
