Lightweight Impact Resistant Integrated Vacuum Generator 41L/Min
Price:
Negotiatable
MOQ:
Negotiatable
Delivery Time:
Negotiatable
Brand:
AMILA
Product Description
Integrated Vacuum Generator MS2 Is Made Of Light Weight Impact-Resistant Material
1. Introduction and application
- Handling for electronics, electronic engineering, packaging technology, robotics and transporting air-tight or micro-breathable workpieces for automotive industry

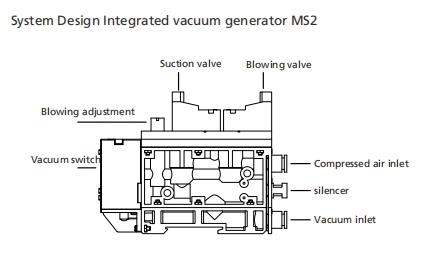

2. Structure
- Main material is made of light weight impact-resistant material;
- Optional suction valve is normally open (NO) or normally closed (NC);
- Built-in normally closed (NC) blow valve and one-way valve;
- Vacuum switch with digital display;
3. Ordering Data
| Type | Nozzle size[mm] | Required air supply pressure when the vacuum reaches the maximum [bar] |
Initial state of blowing valve | Blowing valve and safety valve |
System monitoring |
| MS2 10 HS … | 10=1.0mm | 5 | normally closed (NC) normally open (NO) |
AS blow valve and safety check valve | VD digital vacuum switch； RD energy-saving vacuum switch (VD, RD can choose NPN or PNP) |
| MS2 10 HR … | 3.5 | ||||
| MS2 15 HS … | 15=1.5mm | 5 | |||
| MS2 15 HR … | 3.5 | ||||
| MS2 XI10 … | XI10=0.8mm | 5 | |||
| MS2 PI12 … | PI12=0.9mm | 3.5 |
| Type | Ordering data | Type | Ordering data |
| MS2 10 HS NC AS VD | 90.05.01.00266 | MS2 10 HS NO AS VD | 90.05.01.00278 |
| MS2 10 HR NC AS VD | 90.05.01.00267 | MS2 10 HR NO AS VD | 90.05.01.00279 |
| MS2 10 HS NC AS RD | 90.05.01.00268 | MS2 10 HS NO AS RD | 90.05.01.00280 |
| MS2 10 HR NC AS RD | 90.05.01.00269 | MS2 10 HR NO AS RD | 90.05.01.00281 |
| MS2 15 HS NC AS VD | 90.05.01.00270 | MS2 15 HS NO AS VD | 90.05.01.00282 |
| MS2 15 HR NC AS VD | 90.05.01.00271 | MS2 15 HR NO AS VD | 90.05.01.00283 |
| MS2 15 HS NC AS RD | 90.05.01.00272 | MS2 15 HS NO AS RD | 90.05.01.00284 |
| MS2 15 HR NC AS RD | 90.05.01.00273 | MS2 15 HR NO AS RD | 90.05.01.00285 |
| MS2 XI10 NC AS VD | 90.05.01.00274 | MS2 XI10 NO AS VD | 90.05.01.00286 |
| MS2 PI12 NC AS VD | 90.05.01.00275 | MS2 PI12 NO AS VD | 90.05.01.00287 |
| MS2 XI10 NC AS RD | 90.05.01.00276 | MS2 XI10 NO AS RD | 90.05.01.00288 |
| MS2 PI12 NC AS RD | 90.05.01.00277 | MS2 PI12 NO AS RD | 90.05.01.00289 |
| MS2 10 HS NC AS | 90.05.01.00290 | MS2 10 HS NO AS | 90.05.01.00296 |
| MS2 10 HR NC AS | 90.05.01.00291 | MS2 10 HR NO AS | 90.05.01.00297 |
| MS2 15 HS NC AS | 90.05.01.00292 | MS2 15 HS NO AS | 90.05.01.00298 |
| MS2 15 HR NC AS | 90.05.01.00293 | MS2 15 HR NO AS | 90.05.01.00299 |
| MS2 XI10 NC AS | 90.05.01.00294 | MS2 XI10 NO AS | 90.05.01.00300 |
| MS2 PI12 NC AS | 90.05.01.00295 | MS2 PI12 NO AS | 90.05.01.00301 |
4. Technical Data
| Model | Nozzle size[mm] | vacuum drgree[%] | Maximum suction capacity[l/min] | specific air consumption[l/min] | Operating pressure[bar] |
Operating temperature[℃] |
weight [g] |
| MS2 10 HS … | 1.0 | 90 | 27 | 44 | 5 | 0…45 | 130 |
| MS2 10 HR … | 1.0 | 90 | 25 | 44 | 3.5 | 0…45 | 130 |
| MS2 15 HS … | 1.5 | 90 | 63 | 100 | 5 | 0…45 | 130 |
| MS2 15 HR … | 1.5 | 90 | 54 | 100 | 3.5 | 0…45 | 130 |
| MS2 XI10 … | 0.8 | 90 | 45 | 28 | 5 | 0…45 | 130 |
| MS2 PI12 … | 0.9 | 90 | 41 | 32 | 3.5 | 0…45 | 130 |

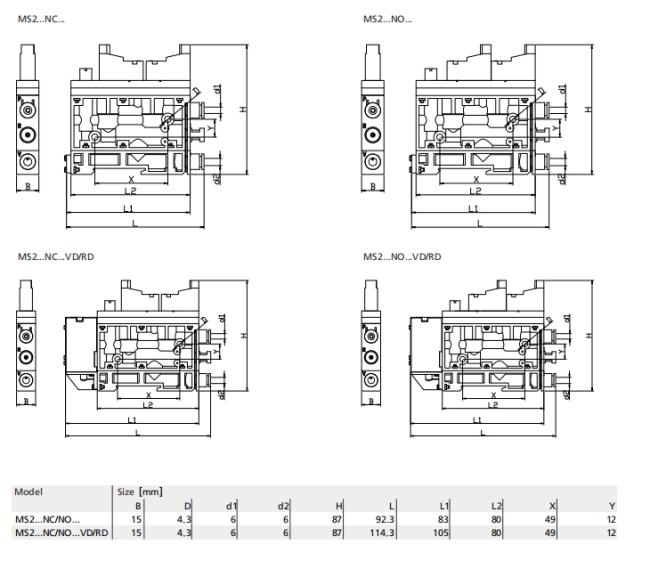

5. Design data

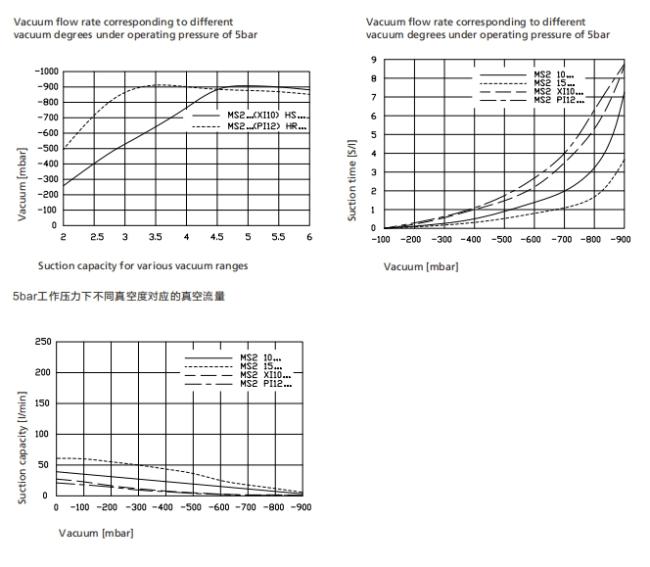

6. Performance curve
