Alumina Body Foam Gripper 120x60mm With Builtin Vacuum Generator
Price:
Negotiatable
MOQ:
Negotiatable
Delivery Time:
Depending on the order quantity
Brand:
AMILA
Product Description
Special Foam Gripper ABX Built-In Vacuum Generator And Easy Installation
1. Introduction
- Built-in vacuum generator, alumina body, foam wear;
- Small size, easy installation and good adsorption stability;
2. Technical Data
| Type | Maximum vacuum | Maximum suction capacity | Air consumption | Work pressure | Suction force | Weight | Operating temperature |
| 【%】 | 【I/min】 | 【I/min】 | 【N】 | 【kg】 | |||
| ABX-SW-120-60 | 60 | 120 | 90 | 5 | 96 | 0.7 | -10~80 |
| ABX-SVK-120-60 | 60 | 120 | 90 | 5 | 96 | 0.8 | -10~80 |

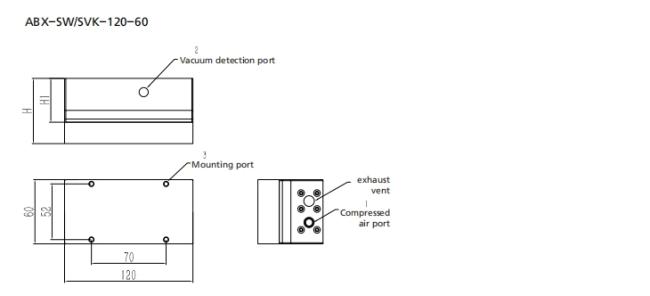

3.Design Data
| Type | Dimensions[mm] | ||||
| 1 | 2 | 3 | H | H1 | |
| ABX-SW-120-60 | G1/8 | G1/8 | M5 | 53 | 33 |
| ABX-SVK-120-60 | G1/8 | G1/8 | M5 | 60 | 40 |
