Quick Released Types Vacuum Generator M5010-B With Anodic Alumina Materials
Price:
Negotiatable
MOQ:
Negotiatable
Delivery Time:
Negotiatable
Brand:
AMILA
Product Description
Quick Released Types Vacuum Generator M5010-B With Anodic Alumina Materials
1. Introduction and application
- Can be mounted directly to any G3/8 external threaded suction cup;
- Configure a 2- or 3-level vacuum tube that can be customized to meet your specific needs. The Si vacuum tube provides high vacuum flow and the Xi vacuum tube provides high vacuum;
2. Technology Data
| Type | Maximum vacuum | Maximum suction force | Air consumption | Operating pressure | weight | Operating temperature |
| [%] | [l/min] | [l/min] | [bar] | [g] | [℃] | |
| M-5010-B-SI32-2 | 70 | 192 | 90 | 5 | 190 | -10…80 |
| M-5010-B-SI32-3 | 70 | 342 | 90 | 5 | 190 | -10…80 |
| M-5010-B-XI40-2 | 91 | 168 | 120 | 5 | 190 | -10…80 |
| M-5010-B-XI40-3 | 91 | 372 | 120 | 5 | 190 | -10…80 |

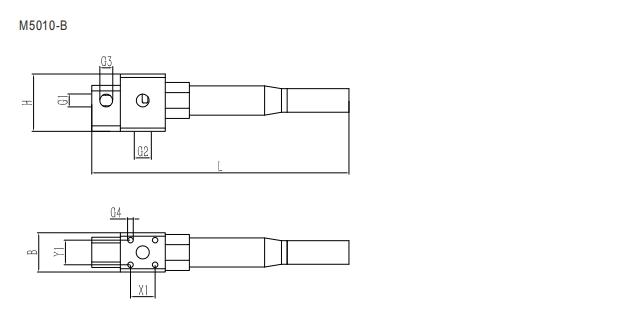

3. Design Date
| Type | Dimensions [mm] | ||||||||
| B | G1 | G2 | G3 | G4 | H | L | X1 | Y1 | |
| M-5010-B-2 | 33 | G1/4-F | G3/8-F | G1/4-F | M6-F | 51 | 173 | 22 | 22 |
| M-5010-B-3 | 33 | G1/4-F | G3/8-F | G1/4-F | M6-F | 51 | 229 | 22 | 22 |
4.Performance curve of the type of vacuum generator is quick release M5010-B
